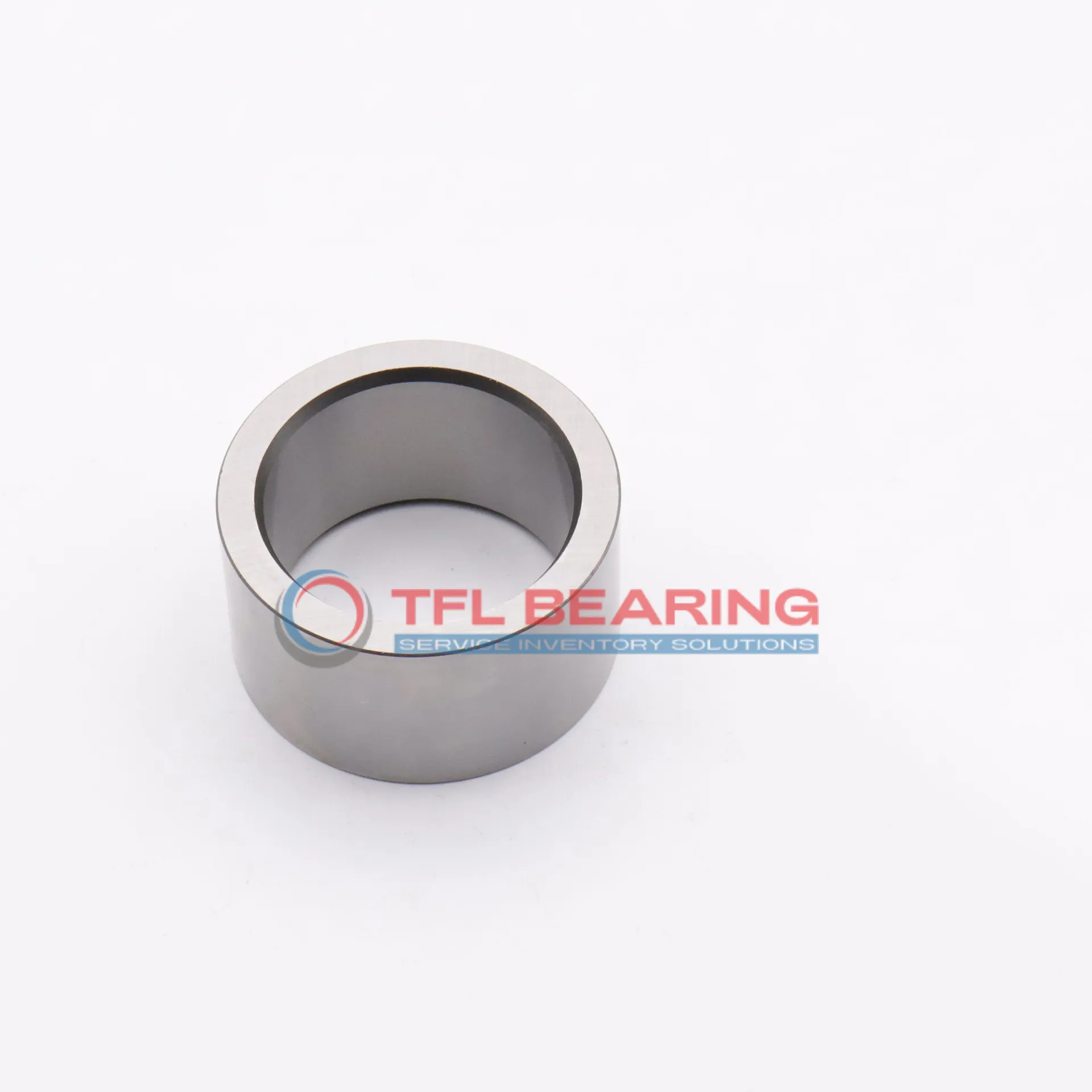

Inner Rings IR100X110X40-XL

Inner Rings IR100X110X40-XL

The IR100X110X40-XL is a needle roller bearing inner ring with a 100mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It’s designed for precision and durability, with tight tolerances ensuring a reliable fit.
This component is pre-lubricated for smooth operation and is interchangeable with INA bearings, making it a practical choice for replacements. Its 40mm width provides stability in compact spaces.
With a weight of 505g, it’s lightweight yet robust, suitable for high-performance applications. The 1.1mm minimum edge rounding (Rmin) helps prevent stress concentrations.
Ideal for use in gearboxes, transmissions, or industrial machinery where needle roller bearings are required. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR100X110X40-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 505 g
  • Rmin 1.1 mm
Inner Rings IR100X110X40-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR100X110X40-XL Bearing
IR100X110X40-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precision needle roller design ensures smooth operation even in high-load applications.
The bearing’s bore diameter of 100 mm and outer diameter of 110 mm provide a compact yet robust solution.
With a width of 40 mm, it fits seamlessly into various mechanical setups.
IR100X110X40-XL Bearing comes pre-lubricated, reducing the need for frequent maintenance.
Its compliance with RoHS standards makes it an environmentally friendly choice.

Application

Essential Roles of IR100X110X40-XL Bearing
IR100X110X40-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive transmissions, IR100X110X40-XL Bearing provides smooth operation and reduces friction, enhancing overall efficiency. Its metric sizing makes it a reliable choice for various vehicle models.
For automation systems, IR100X110X40-XL Bearing supports precise movements in robotic arms and conveyor belts. The lubricated design helps maintain performance over long periods of use.
In medical imaging devices, IR100X110X40-XL Bearing’s consistent performance and low maintenance needs make it a practical option. Its high load capacity ensures reliability in critical applications.
