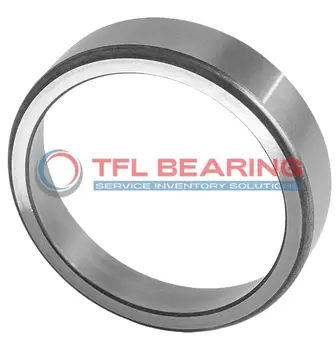

HM907616 Single Cups (Imperial)

HM907616 Single Cups (Imperial)

The HM907616 is a single cup tapered roller bearing with an outer diameter of 4.4375 inches and a width of 0.8125 inches, made from sturdy chrome steel. It fits well with Timken bearings, making it a handy replacement option.

Its standard cup design ensures easy installation and reliable performance in various conditions. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With an ABEC-1 rating, it offers good precision for general industrial use. The cup’s dimensions and tolerances are designed for consistent fit and function.

Ideal for applications like vehicle axles or heavy machinery where tapered roller bearings are needed. Compliant with RoHS and REACH standards, it’s safe for most environments.

The HM907616 pairs with cones like HM907635 and HM907639, providing flexibility in assembly. Its robust construction ensures durability under typical loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM907616
  • Brand TFL
  • Interchangeable Timken
  • Size 3.58" x 4.4375" x 0.8125"
  • Outer Dia 4.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 4.18"
  • Cup Backface Backing Diameter 3.58"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HM907635-HM907616 , HM907639-HM907616
  • Cups Type Standard
  • Series HM907600
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM907616 Bearing Engineered for Reliability?

HM907616 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, it performs reliably in diverse environmental conditions.

HM907616 Bearing meets ABEC-1 standards, ensuring consistent quality and smooth operation.
Its interchangeable design with Timken models provides flexibility and ease of replacement.

Application

Industrial Uses of HM907616 Bearing
HM907616 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is HM907616 Bearing Used?
You’ll often find HM907616 Bearing in automotive axles and wheel hubs, providing smooth rotation under heavy loads. Its inch sizing makes it a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: HM907616 Bearing
HM907616 Bearing excels in industrial conveyor systems, where its robust design withstands continuous operation. The standard cup type simplifies replacements, reducing downtime in production lines.

Automotive vs Aerospace: Applications of HM907616 Bearing
In automotive settings, HM907616 Bearing supports drivetrain components, while its precision suits aerospace applications like landing gear systems. The ABEC-1 rating balances performance and cost effectively.

Perfect Fit for Automation: HM907616 Bearing
HM907616 Bearing works well in automated assembly lines, offering reliable performance in robotic arms. Its temperature range ensures stability even in fluctuating industrial environments.
