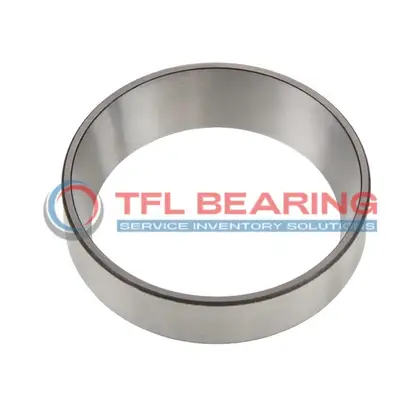

HM903216 Single Cups (Imperial)

HM903216 Single Cups (Imperial)

The HM903216 is a tapered roller bearing cup with an outer diameter of 3.875 inches and a width of 0.875 inches, crafted from durable chrome steel. It fits well in imperial-sized applications and operates smoothly in temperatures ranging from -30°C to 110°C.

Designed as a standard cup, it’s part of the HM903200 series and is interchangeable with Timken models, offering flexibility for replacements. Its precise tolerances ensure a secure fit, while the chrome steel construction provides reliable strength.

Ideal for industrial machinery or automotive systems where tapered roller bearings are needed. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various mechanical setups.

The cup’s compact design and robust material make it suitable for heavy-duty use, ensuring long-lasting performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM903216
  • Brand TFL
  • Interchangeable Timken
  • Size 3.23" x 3.875" x 0.875"
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.23"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HM903241-HM903216 , HM903244-HM903216 , HM903245-HM903216 , HM903247-HM903216 , HM903249-HM903216 , HM903249A-HM903216
  • Cups Type Standard
  • Series HM903200
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM903216 Bearing Engineered for Reliability?

HM903216 Bearing is crafted from high-quality chrome steel, offering durability and resistance to wear.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing operational issues.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

HM903216 Bearing is interchangeable with Timken models, providing flexibility for different applications.
Its ABEC-1 rating ensures consistent quality and smooth operation.

Application

Industrial Uses of HM903216 Bearing
HM903216 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is HM903216 Bearing Used?
You’ll often find HM903216 Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under varying loads. Its inch sizing makes it a good fit for older or imperial-based machinery.

Built for Heavy-Duty Use: HM903216 Bearing
HM903216 Bearing excels in industrial gearboxes, where its tapered rollers manage high stress and reduce friction. The standard cup design simplifies installation and maintenance in tight spaces.

Automotive vs Industrial: Applications of HM903216 Bearing
In automotive settings, HM903216 Bearing supports smooth wheel rotation, while in industrial contexts, it’s trusted for conveyor systems and pulleys. Its compatibility with Timken parts adds versatility.

Perfect Fit for Automation: HM903216 Bearing
HM903216 Bearing works well in automated assembly lines, where precision and load capacity matter. The ABEC-1 rating ensures consistent performance without over-engineering for general applications.
