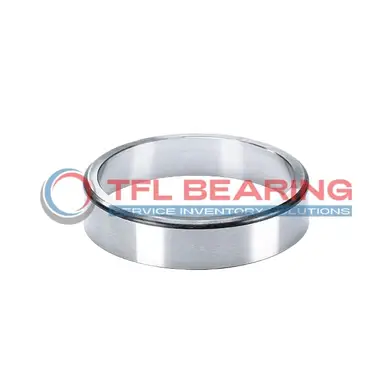

HM624710 Single Cups (Imperial)

HM624710 Single Cups (Imperial)

The HM624710 is a single cup tapered roller bearing with an outer diameter of 7.5 inches and a width of 1.375 inches, crafted from durable chrome steel. It fits well with Timken models, making it a versatile replacement option.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial applications.

The cup features precise tolerances, with a frontface backing diameter of 7.28 inches and a backface diameter of 6.85 inches. Its robust construction handles moderate loads with ease.

Ideal for machinery requiring tapered roller bearings, such as conveyors or agricultural equipment. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM624710
  • Brand TFL
  • Interchangeable Timken
  • Size 6.85" x 7.5" x 1.375"
  • Outer Dia 7.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 7.28"
  • Cup Backface Backing Diameter 6.85"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HM624749-HM624710
  • Cups Type Standard
  • Series HM624700
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM624710 Bearing Engineered for Reliability?

HM624710 Bearing features chrome steel construction, offering durability and resistance to wear in demanding applications.
Its precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit, enhancing operational stability.
The tapered roller design efficiently handles both radial and axial loads, making it versatile for various uses.
With a temperature range of -30° to 110°C, HM624710 Bearing performs reliably in diverse environments.

What Makes HM624710 Bearing Suitable for High-Temperature Applications?

HM624710 Bearing is built to withstand temperatures from -30° to 110°C, ensuring consistent performance under thermal stress.
The chrome steel material provides excellent heat resistance, reducing the risk of deformation.
Its tapered roller design maintains load distribution even in high-temperature conditions.
This makes HM624710 Bearing a dependable choice for industrial and automotive applications.

Built for Durability: HM624710 Bearing

HM624710 Bearing’s chrome steel rings and tapered rollers ensure long-lasting performance under heavy loads.
The precise cup width tolerance of +0.002″ to -0.01 allows for easy installation and reliable operation.
Its robust design minimises wear, reducing the need for frequent replacements.
HM624710 Bearing is ideal for applications requiring durability and precision.

Steel vs Ceramic Bearings: Strengths of HM624710 Bearing

HM624710 Bearing’s chrome steel construction offers superior strength and wear resistance compared to ceramic alternatives.
The tapered roller design ensures efficient load handling, making it suitable for heavy-duty applications.
Its precise dimensions and tolerances guarantee a secure fit and smooth operation.
HM624710 Bearing is a cost-effective and reliable choice for industrial use.

Application

Industrial Uses of HM624710 Bearing
HM624710 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is HM624710 Bearing Used?
You’ll often find HM624710 Bearing in industrial gearboxes and conveyor systems, thanks to its reliable performance under heavy loads. Its inch sizing makes it a good fit for machinery following imperial measurement standards.

Built for Heavy-Duty Use: HM624710 Bearing
HM624710 Bearing excels in applications like mining equipment and large-scale manufacturing units, where its robust design withstands continuous operation. The tapered rollers provide smooth motion even under significant stress.

Automotive vs Aerospace: Applications of HM624710 Bearing
In automotive systems, HM624710 Bearing supports wheel hubs and differentials, ensuring smooth rotation. For aerospace, its precision and reliability make it suitable for landing gear components.

Perfect Fit for Automation: HM624710 Bearing
HM624710 Bearing is ideal for automated production lines and robotic arms, where consistent performance is key. The ABEC-1 rating ensures adequate precision for most industrial automation needs.
