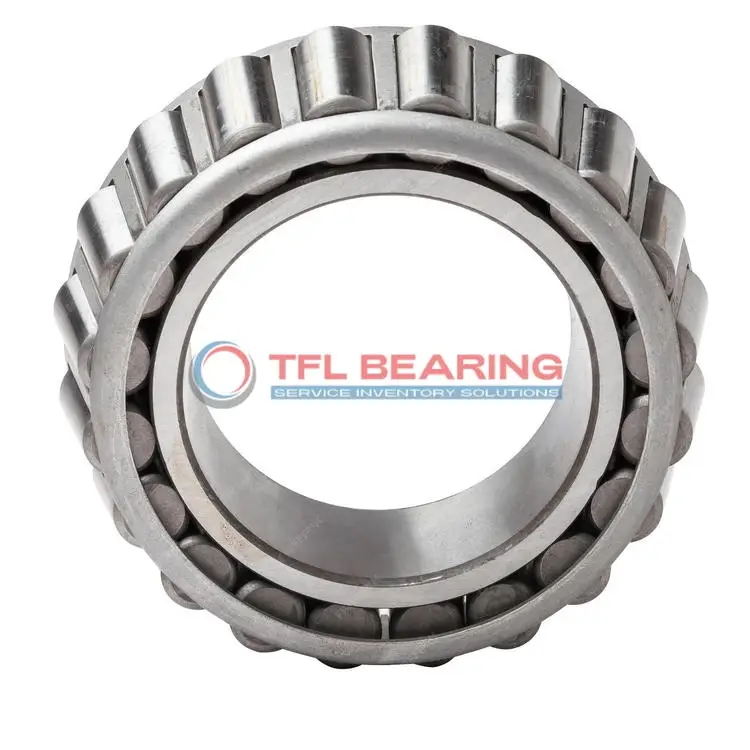

HM237545 Single Cones (Imperial)

HM237545 Single Cones (Imperial)

The HM237545 is a single-row tapered roller bearing with a 7-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 219,000 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it’s suitable for heavy-duty applications like industrial machinery or construction equipment. The effective center location of -0.46″ helps with precise alignment.

Compliant with RoHS and REACH standards, this bearing offers a balance of strength and durability. Ideal for scenarios where both radial and thrust loads are present.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM237545
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM237545-HM237510 , HM237545-HM237510-B , HM237545-HM237511 , HM237545-HM237513
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HM237500
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 7.64"
  • Cone Backface Backing Diameter 8.07"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.2"
  • Effective Center Location -0.46"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 219000 lbf
  • Static Radial Load 278000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 56900 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 382000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 31100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 99100 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does HM237545 Bearing Handle Combined Loads?

HM237545 Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 219,000 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of HM237545 Bearing enhances load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

HM237545 Bearing features a steel cage that maintains roller alignment for smooth operation.
Its standard radial clearance options provide flexibility for different application requirements.

Application

Industrial Uses of HM237545 Bearing
HM237545 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM237545 Bearing Used?
You’ll often find HM237545 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. Its inch sizing makes it a fit for older or imperial-based systems.

Built for Heavy-Duty Use: HM237545 Bearing
HM237545 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The steel cage adds extra strength, making it suitable for long-term use without frequent maintenance.

Automotive vs Aerospace: Applications of HM237545 Bearing
In automotive applications, HM237545 Bearing is ideal for wheel hubs and differentials, offering smooth operation. For aerospace, its precision and load capacity make it useful in landing gear systems.

Essential Roles of HM237545 Bearing
HM237545 Bearing plays a key role in railway systems, particularly in axle boxes where combined loads are common. Its temperature range ensures performance in varying climates.
