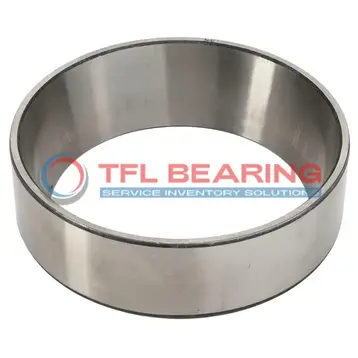

HM227515 Single Cups (Imperial)

HM227515 Single Cups (Imperial)

The HM227515 is a tapered roller bearing cup with an 8.5-inch outer diameter and 1.75-inch width, crafted from durable chrome steel. It fits seamlessly with Timken equivalents, offering reliable interchangeability.

Designed for standard use, it handles temperatures from -30°C to 110°C, making it suitable for various environments. The cup’s precise tolerances ensure a snug fit and smooth operation.

Its robust construction supports heavy loads, ideal for industrial machinery or automotive applications. The ABEC-1 rating balances performance and affordability for general-purpose needs.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for maintenance or replacements. The cup’s dimensions (7.72″ x 8.5″ x 1.75″) make it easy to integrate into existing systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM227515
  • Brand TFL
  • Interchangeable Timken
  • Size 7.72" x 8.5" x 1.75"
  • Outer Dia 8.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 7.99"
  • Cup Backface Backing Diameter 7.72"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HM227545-HM227515
  • Cups Type Standard
  • Series HM227500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HM227515 Bearing

HM227515 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under heavy loads.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, HM227515 Bearing performs reliably in varied environments.

HM227515 Bearing’s standard cup type simplifies compatibility with interchangeable brands like Timken.
Its ABEC-1 rating ensures consistent quality for industrial and automotive uses.

Application

Industrial Uses of HM227515 Bearing
HM227515 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is HM227515 Bearing Used?
You’ll often find HM227515 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for equipment designed to imperial measurements.

Built for Heavy-Duty Use: HM227515 Bearing
HM227515 Bearing excels in industrial applications like conveyor systems, where its robust design withstands continuous operation. The standard cup type simplifies replacement and maintenance.

Automotive vs Aerospace: Applications of HM227515 Bearing
In automotive settings, HM227515 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. Its temperature range ensures performance in varied environments.

Perfect Fit for Automation: HM227515 Bearing
HM227515 Bearing is ideal for automated production lines, where precision and reliability are key. The ABEC-1 rating balances performance and cost for industrial applications.
