HM204043 Single Cones (Imperial)

HM204043 Single Cones (Imperial)

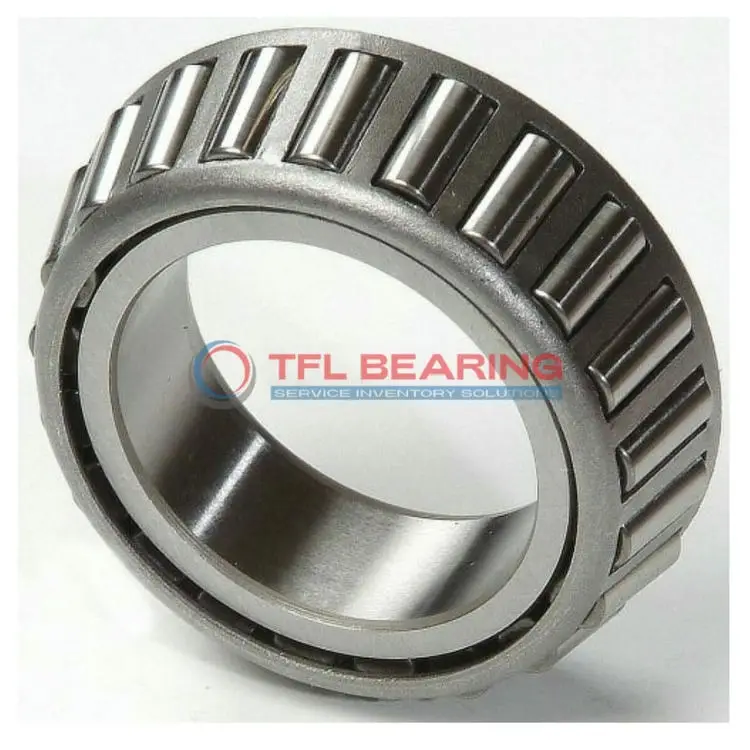

The HM204043 is a single-row tapered roller bearing cone with a 1.57″ bore, designed for combined loads. Made from sturdy chrome steel, it handles dynamic radial loads up to 38,300 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures durability under heavy use. The cone has standard radial clearance, with options for C3, C4, or C5 fits to suit different needs.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery, gearboxes, or heavy equipment where reliable performance is key.

Compliant with RoHS and REACH standards, it offers a balance of strength and longevity. The ABEC-1 rating ensures consistent precision for most general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM204043
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM204043-HM204010 , HM204043-HM204010W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.5743"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.2598"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.04"
  • Cone Frontface Backing Diameter 2.09"
  • Cone Backface Backing Diameter 2.13"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.38"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38300 lbf
  • Static Radial Load 38600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9930 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 66700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5660 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 17300 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HM204043 Bearing

HM204043 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 38,300 lbf, ensuring reliable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs well in various environments.

HM204043 Bearing’s standard radial clearance allows for flexibility in different applications.
Its tapered roller design enhances load distribution, improving longevity.

Application

Industrial Uses of HM204043 Bearing
HM204043 Bearing is commonly used in heavy machinery like construction equipment and agricultural vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM204043 Bearing Used?
You’ll often find HM204043 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for older or custom-built vehicles that require imperial measurements.

Built for Heavy-Duty Use: HM204043 Bearing
HM204043 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Industrial: Applications of HM204043 Bearing
In automotive settings, HM204043 Bearing supports wheel assemblies, while in industrial contexts, it’s ideal for conveyor systems. Its ABEC-1 rating ensures consistent performance across different uses.

Key Fields for HM204043 Bearing
HM204043 Bearing is a popular choice for mining equipment, where its robust design withstands harsh conditions. The standard radial clearance option also allows for easy integration into various machinery setups.
