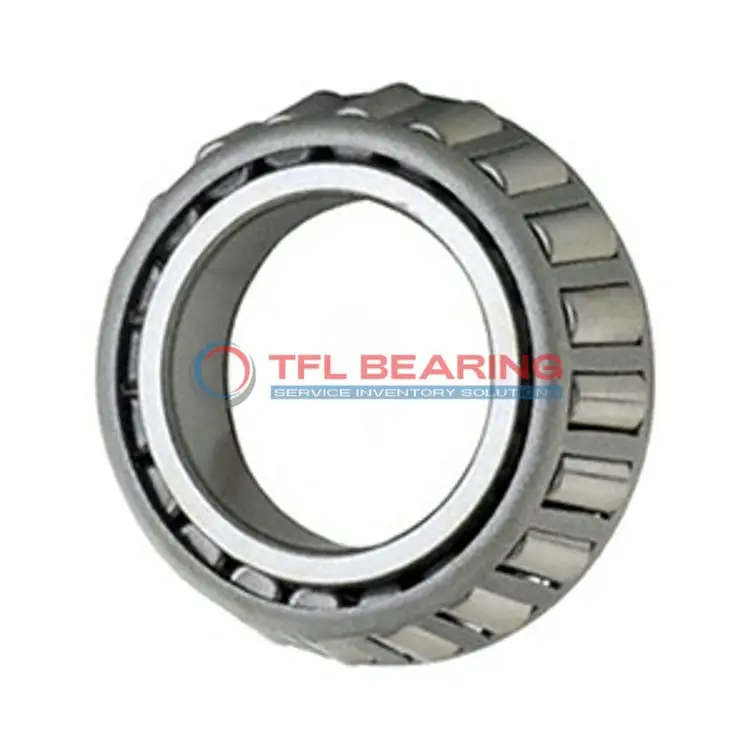

HH923649 Single Cones (Imperial)

HH923649 Single Cones (Imperial)

The HH923649 is a single-row tapered roller bearing cone with a 4-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 186,000 lbf and operates smoothly in temperatures from -30°C to 110°C.
Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone width of 2.875 inches and precise tolerances make it a sturdy choice for heavy-duty applications.
This model is interchangeable with Timken bearings, offering flexibility for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.
Compliant with RoHS and REACH standards, it’s a safe and reliable option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH923649
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HH923649-HH923610 , HH923649-HH923611
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 5.15"
  • Cone Backface Backing Diameter 5.87"
  • Cage Cone Frontface Clearance 0.23"
  • Cage Cone Backface Clearance 0.55"
  • Effective Center Location -0.13"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 186000 lbf
  • Static Radial Load 186000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 48200 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 324000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 57800 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 84000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HH923649 Bearing

HH923649 Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 186,000 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of HH923649 Bearing provides smooth operation under varying load conditions.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

HH923649 Bearing’s steel cage maintains roller alignment, reducing wear and extending service life.
Its standard radial clearance options allow for flexibility in different operational requirements.

The open seal type of HH923649 Bearing simplifies maintenance while ensuring efficient operation.
Compliant with RoHS and REACH standards, it meets environmental and safety regulations.

Application

Industrial Uses of HH923649 Bearing
HH923649 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is HH923649 Bearing Used?
You’ll often find HH923649 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a good fit for older or imperial-based systems.

Built for Heavy-Duty Use: HH923649 Bearing
This bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength for long-term reliability.

Automotive vs Aerospace: Applications of HH923649 Bearing
In automotive applications, HH923649 Bearing works well in truck axles and drivetrains, while its precision makes it suitable for certain aerospace components. The ABEC-1 rating ensures consistent performance.

Essential Roles of HH923649 Bearing
For conveyor systems in warehouses, HH923649 Bearing provides smooth operation under heavy radial loads. Its standard radial clearance offers flexibility for various industrial setups.
