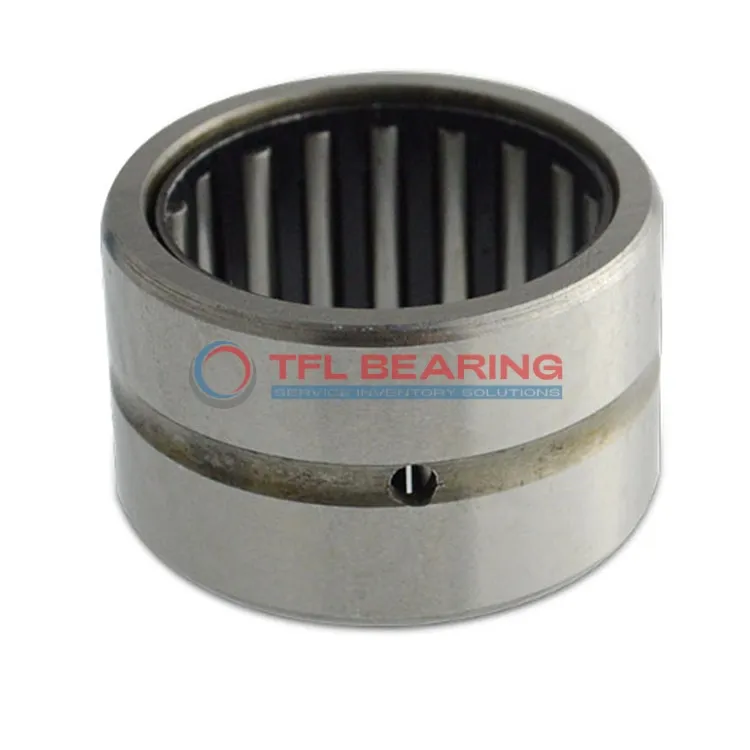

Heavy Duty Needle Roller Bearings (Machined) RNAO5X10X8-TV-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO5X10X8-TV-XL

The RNAO5X10X8-TV-XL is a heavy-duty needle roller bearing with a 5mm bore and 10mm outer diameter, crafted from sturdy steel. It supports radial loads up to 596 lbf and can reach speeds of 39,000 RPM, making it suitable for high-performance applications.
Its open design and PA66 cage ensure smooth operation, while the press-fit shaft mount provides a secure installation. The bearing requires regular lubrication to maintain optimal performance.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for compact machinery or automotive components where space is limited but durability is essential.
Weighing just 3g, it’s lightweight yet robust. Compliant with RoHS standards, it operates efficiently in temperatures from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO5X10X8-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 5 mm
  • Bore Dia Tolerance 0.01mm to 0.018mm
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 596 lbf
  • Static Radial Load 432 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 39000 rpm
  • Weight 3 g

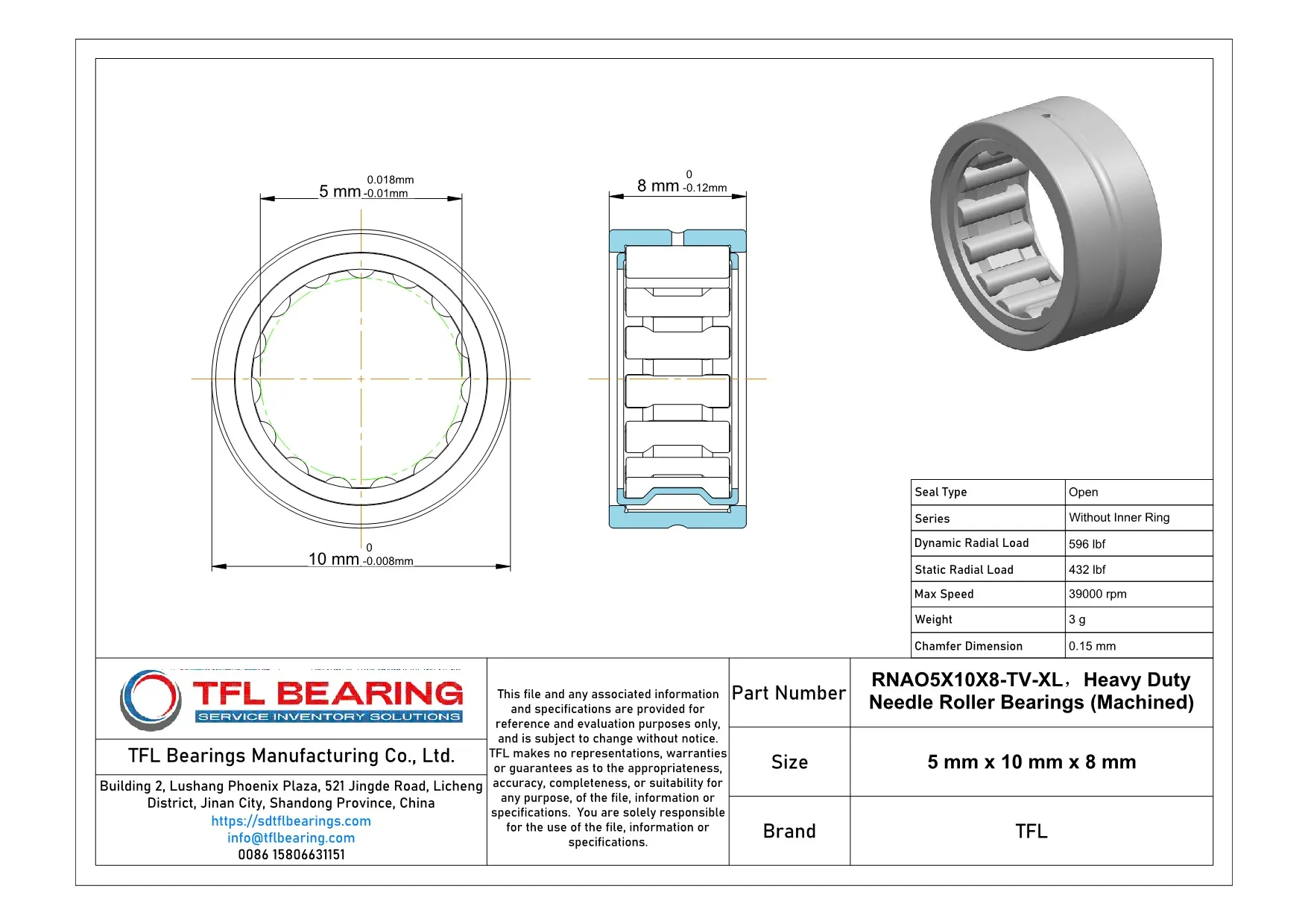

Heavy Duty Needle Roller Bearings (Machined) RNAO5X10X8-TV-XL dimension drawing
Download DWG Download PDF

Features

How Does RNAO5X10X8-TV-XL Bearing Handle High-Speed Applications?
RNAO5X10X8-TV-XL Bearing is built with steel rollers and a PA66 cage, ensuring smooth operation at high speeds.
Its dynamic radial load capacity of 596 lbf makes it suitable for demanding radial load applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 39,000 rpm, it delivers reliable performance in high-speed environments.

Application

Industrial Uses of RNAO5X10X8-TV-XL Bearing
RNAO5X10X8-TV-XL Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its open design and press-fit mounting make it easy to install and maintain in tight configurations.
What Makes RNAO5X10X8-TV-XL Bearing a Preferred Choice?
In automotive applications, RNAO5X10X8-TV-XL Bearing works well in gear pumps and transmission systems due to its high-speed capability and steel construction. The needle roller design ensures efficient load distribution, even in demanding conditions.
Built for Heavy-Duty Use: RNAO5X10X8-TV-XL Bearing
For automation equipment, RNAO5X10X8-TV-XL Bearing fits seamlessly into robotic arms and linear guides, offering reliable performance with minimal space requirements. The PA66 cage adds durability while reducing friction during high-speed movements.
Medical vs Industrial: Where RNAO5X10X8-TV-XL Bearing Excels
In medical devices, RNAO5X10X8-TV-XL Bearing is suitable for precision instruments like lab equipment, thanks to its consistent performance and steel rollers. Industrial applications benefit from its ability to handle radial loads in compact designs.
Essential Roles of RNAO5X10X8-TV-XL Bearing
RNAO5X10X8-TV-XL Bearing is a go-to for small electric motors and household appliances, where its lightweight and high-speed tolerance are advantageous. The metric sizing ensures compatibility with a variety of international standards.
