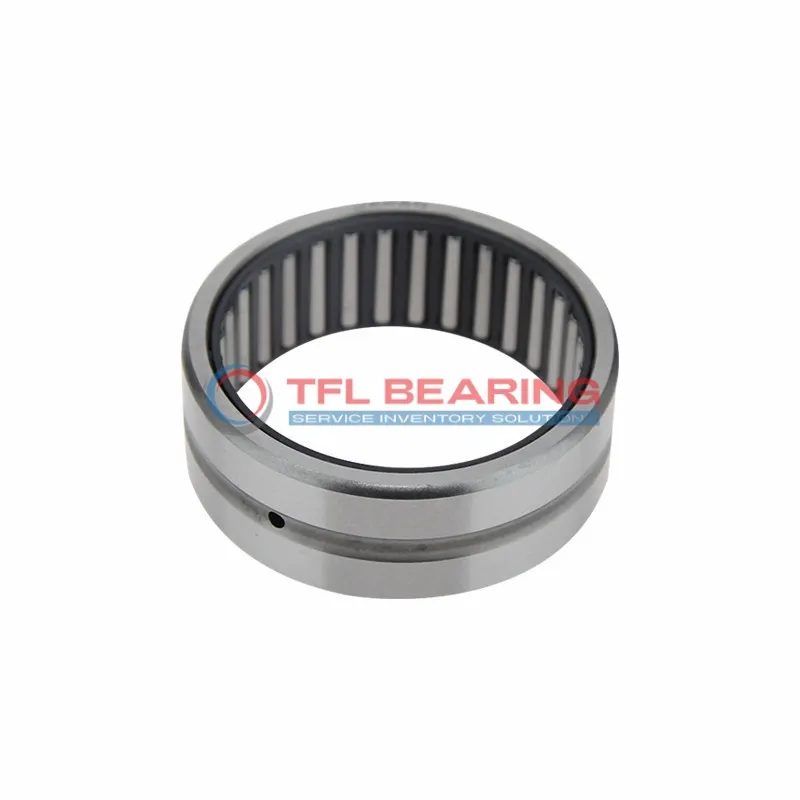

Heavy Duty Needle Roller Bearings (Machined) RNAO35X47X16-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO35X47X16-XL

The RNAO35X47X16-XL is a heavy-duty needle roller bearing with a 35mm bore and 47mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6188 lbf and spins smoothly at speeds up to 12700 RPM.

Its open design requires regular lubrication, while the steel cage ensures durability under high stress. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.

This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive transmissions or industrial machinery where radial loads are common.

Weighing just 78g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use. The press-fit shaft mount ensures a secure installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO35X47X16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 35 mm
  • Bore Dia Tolerance 0.025mm to 0.041mm
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 6188 lbf
  • Static Radial Load 8438 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 12700 rpm
  • Weight 78 g
Heavy Duty Needle Roller Bearings (Machined) RNAO35X47X16-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of RNAO35X47X16-XL Bearing
RNAO35X47X16-XL Bearing is built with steel rings and rollers, offering robust radial load capacity.
Its dynamic radial load reaches 6188 lbf, making it suitable for heavy-duty applications.
The press-fit shaft mount ensures secure installation, reducing slippage during operation.
With a maximum speed of 12,700 rpm, it delivers reliable performance under high-speed conditions.
RNAO35X47X16-XL Bearing operates efficiently within a temperature range of -20 to 110°C.
Its open design allows for easy lubrication, ensuring smooth and long-lasting performance.

Application

Industrial Uses of RNAO35X47X16-XL Bearing
RNAO35X47X16-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The open design and steel construction make it suitable for harsh environments.
Where Is RNAO35X47X16-XL Bearing Used?
In automotive applications, RNAO35X47X16-XL Bearing fits well in gearboxes and transmission systems, providing reliable performance under high speeds. Its press-fit mounting ensures a secure installation.
Built for Heavy-Duty Use: RNAO35X47X16-XL Bearing
For automation systems, RNAO35X47X16-XL Bearing supports robotic arms and conveyor belts, where precision and durability are key. The steel rollers enhance its load-bearing capabilities.
Light-Duty vs Heavy-Duty: Best Uses for RNAO35X47X16-XL Bearing
In consumer electronics, RNAO35X47X16-XL Bearing can be found in printers and power tools, offering smooth operation. Its compact size and high-speed tolerance make it versatile for various applications.
