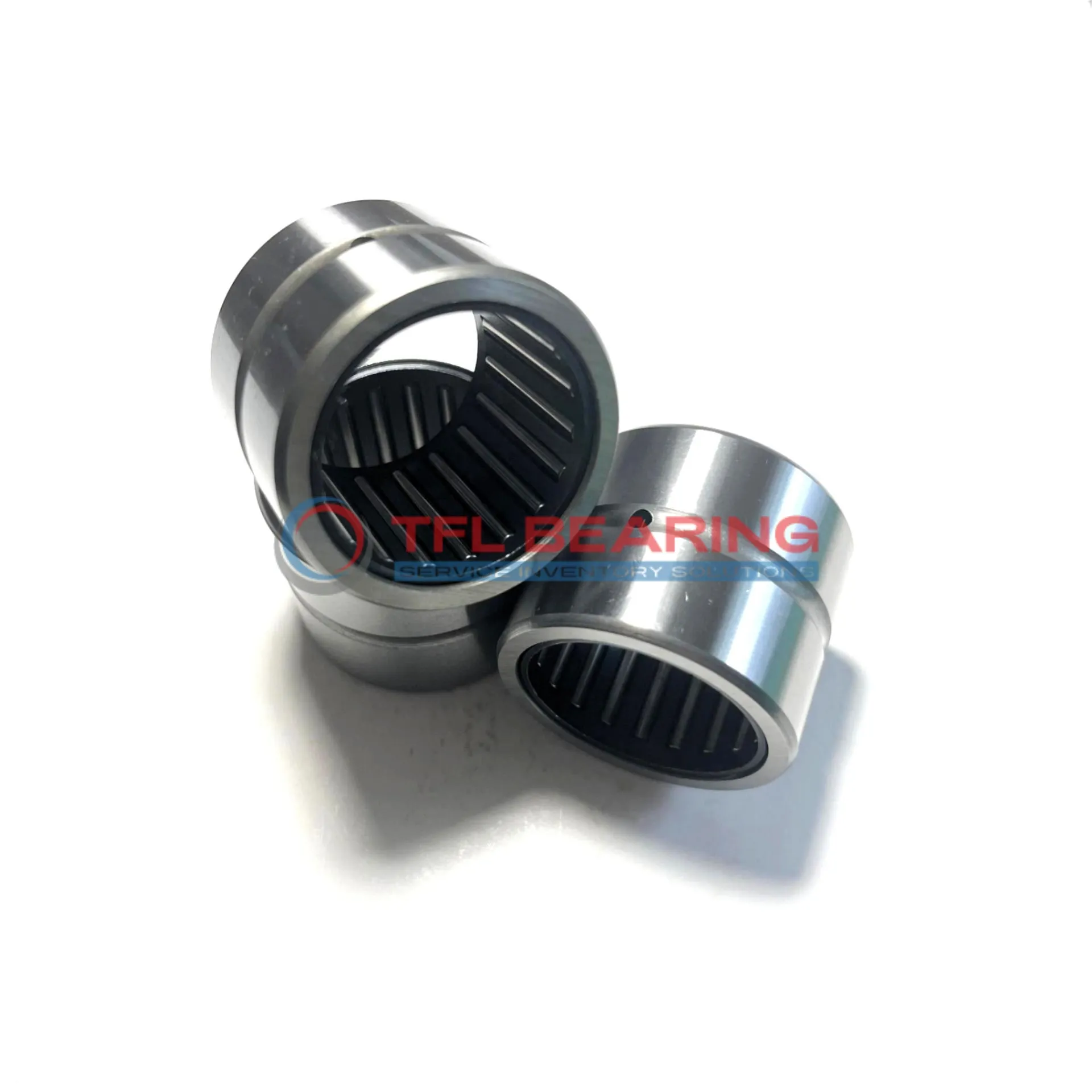

Heavy Duty Needle Roller Bearings (Machined) RNAO22X35X16-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO22X35X16-XL

The RNAO22X35X16-XL is a heavy-duty needle roller bearing with a 22mm bore and 35mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 5085 lbf and spins smoothly at speeds up to 19200 RPM.
Its open design requires regular lubrication, while the press-fit mounting ensures a secure fit on shafts. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing just 59g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO22X35X16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 22 mm
  • Bore Dia Tolerance 0.02mm to 0.033mm
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 5085 lbf
  • Static Radial Load 5738 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19200 rpm
  • Weight 59 g

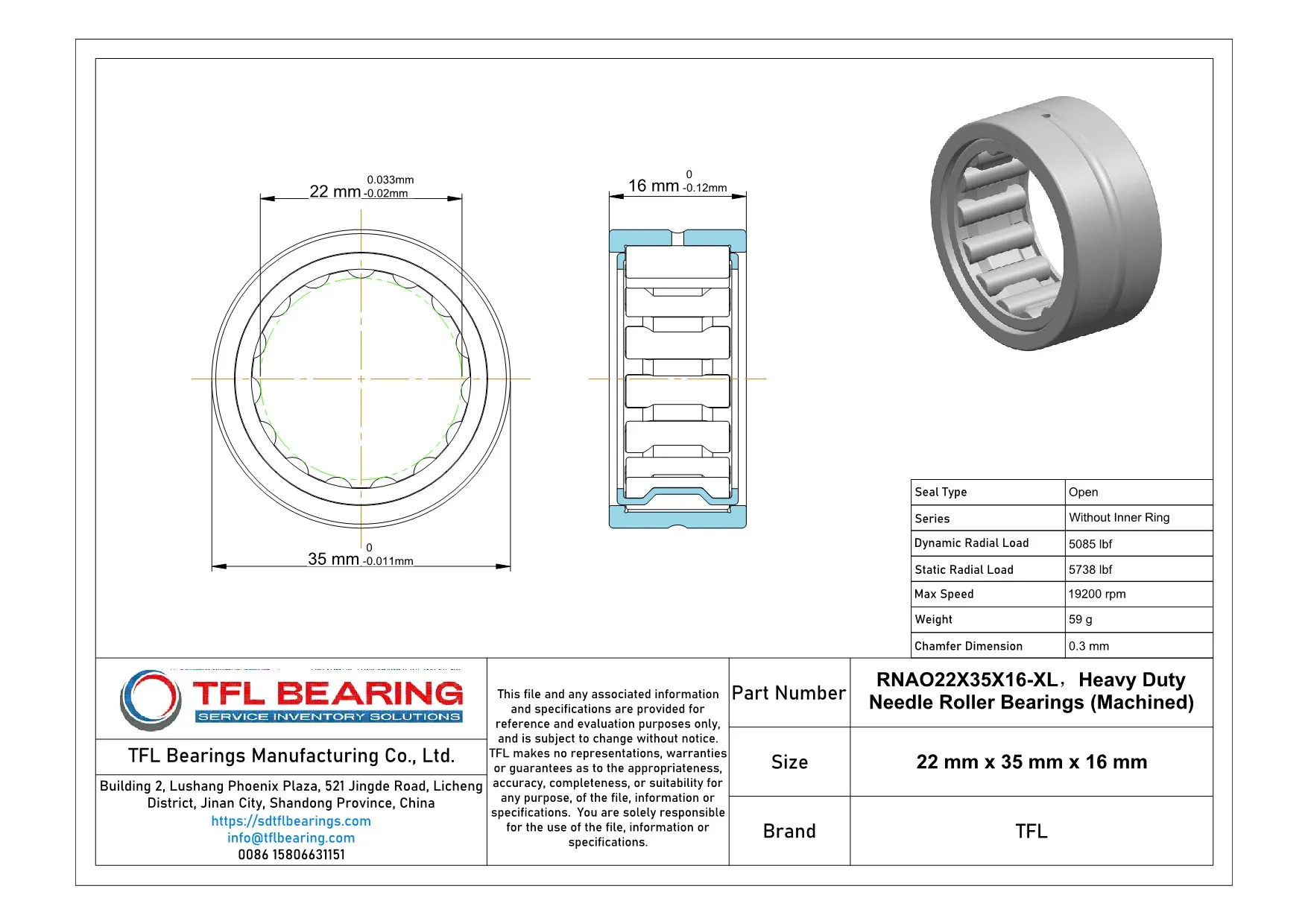

Heavy Duty Needle Roller Bearings (Machined) RNAO22X35X16-XL dimension drawing
Download DWG Download PDF

Features

How Does RNAO22X35X16-XL Bearing Handle Radial Loads?
RNAO22X35X16-XL Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 5085 lbf, ensuring reliable performance in demanding applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a maximum speed of 19,200 rpm, it balances durability and efficiency in high-speed operations.
RNAO22X35X16-XL Bearing operates effectively in temperatures from -20 to 110°C, suitable for varied environments.
Its press-fit shaft mount design simplifies installation, saving time and effort.
The open design allows for easy lubrication, ensuring smooth operation over time.
Weighing just 59g, it combines strength with a lightweight construction.

Application

Common Applications of RNAO22X35X16-XL Bearing
RNAO22X35X16-XL Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as gearboxes and pumps. Its open design and steel construction make it suitable for heavy-duty environments.
In automotive applications, RNAO22X35X16-XL Bearing fits well in transmission systems and steering mechanisms, offering reliable performance under high speeds. The press-fit mounting ensures a secure and stable connection.
For automation equipment, RNAO22X35X16-XL Bearing supports smooth motion in robotic arms and conveyor belts. Its needle roller design provides excellent load distribution, reducing wear over time.
In household appliances like washing machines, RNAO22X35X16-XL Bearing ensures quiet and efficient operation. The steel cage and rollers enhance durability, even with frequent use.
