Heavy Duty Needle Roller Bearings (Machined) NCS2216

Heavy Duty Needle Roller Bearings (Machined) NCS2216

The NCS2216 is a heavy-duty needle roller bearing with a 1.375″ bore and 1.875″ outer diameter, crafted from sturdy steel. It handles radial loads up to 8212 lbf and spins smoothly at speeds up to 13000 RPM.
Its open design requires regular lubrication, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive transmissions or industrial equipment where radial loads are common.
Weighing just 118g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS2216
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 1.375"
  • Bore Dia Tolerance 0.025mm to 0.048mm
  • Outer Dia 1.875"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 1"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 8212 lbf
  • Static Radial Load 12825 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13000 rpm
  • Weight 118 g

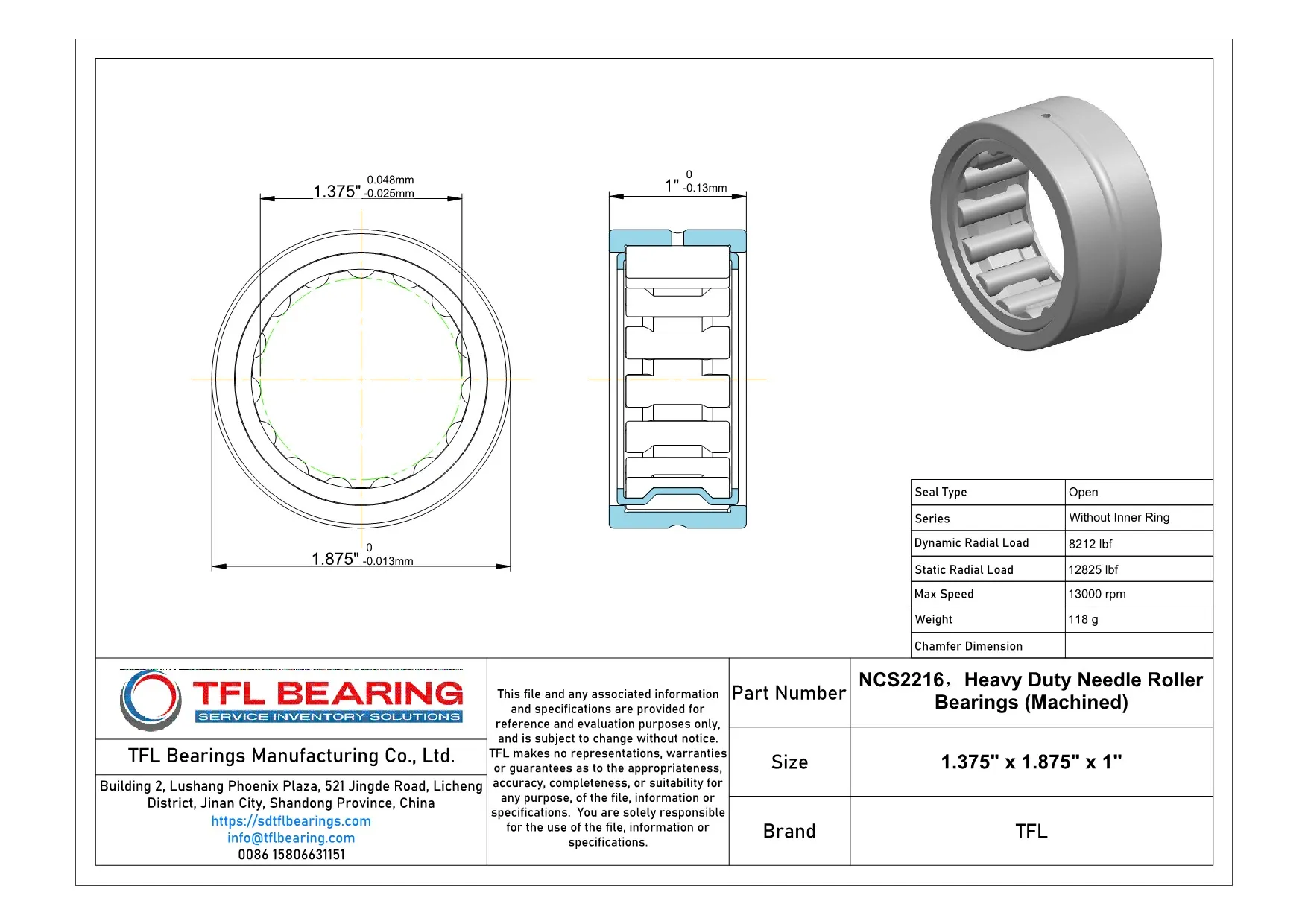

Heavy Duty Needle Roller Bearings (Machined) NCS2216 dimension drawing
Download DWG Download PDF

Features

Core Advantages of NCS2216 Bearing
NCS2216 Bearing is built with high-quality steel rings and rollers, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 8212 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed operations.
NCS2216 Bearing operates efficiently in temperatures ranging from -20° to 110°C.
Its press-fit shaft mount design simplifies installation, saving time and effort.
The open seal type allows for easy lubrication, ensuring smooth operation over extended periods.
This bearing is ideal for applications requiring high load capacity and long service life.

Application

Industrial Uses of NCS2216 Bearing
NCS2216 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The open design and steel construction make it durable in tough working conditions.
Where Is NCS2216 Bearing Used?
You’ll often find NCS2216 Bearing in automotive transmissions and power steering systems, where its needle roller design ensures smooth operation under high stress. Its inch sizing makes it a good fit for many American and British vehicle models.
Built for Heavy-Duty Use: NCS2216 Bearing
NCS2216 Bearing excels in industrial gearboxes and pumps, handling high speeds and radial loads with ease. The steel rollers and cage provide long-lasting performance even in demanding environments.
Automotive vs Industrial: Applications of NCS2216 Bearing
In automotive applications, NCS2216 Bearing supports components like differentials and driveshafts, while in industrial settings, it’s ideal for conveyor systems and heavy-duty presses. Its versatility makes it a reliable choice across sectors.
Perfect Fit for Automation: NCS2216 Bearing
NCS2216 Bearing works well in robotic arms and automated assembly lines, where precision and durability are key. The press-fit design ensures a secure mount, reducing maintenance needs in high-speed operations.
