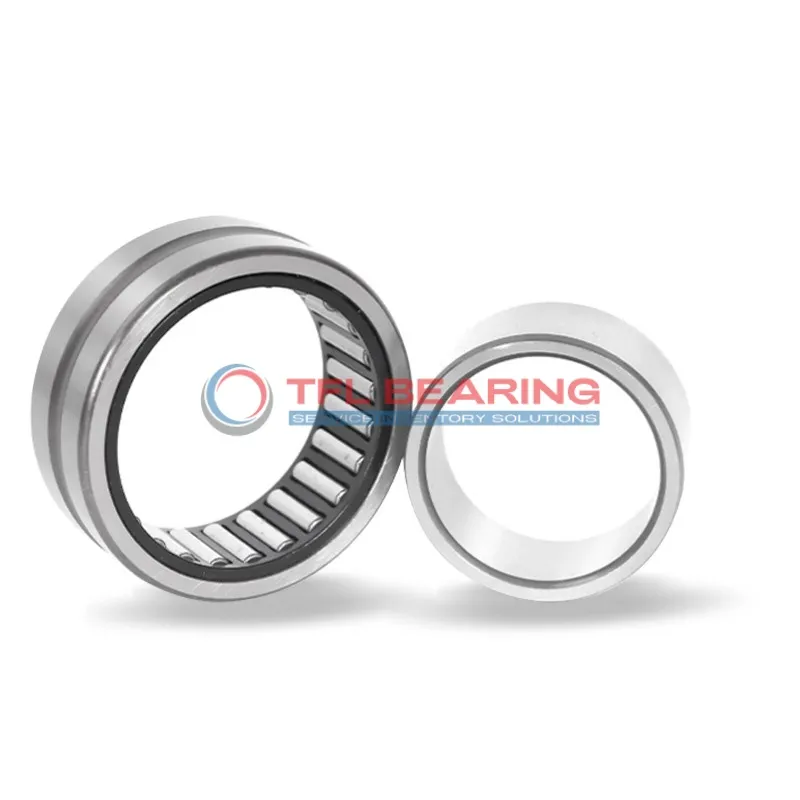

Heavy Duty Needle Roller Bearings (Machined) NA69/32-ZW-XL

Heavy Duty Needle Roller Bearings (Machined) NA69/32-ZW-XL

The NA69/32-ZW-XL is a heavy-duty needle roller bearing with a 32mm bore and 52mm outer diameter, built from sturdy steel for long-lasting performance. It handles radial loads up to 11925 lbf and spins smoothly at speeds up to 11100 RPM.
Its double-row design provides extra stability, while the open seal allows for easy lubrication. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive applications where high radial loads are common.
Weighing 288g, it’s compact yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA69/32-ZW-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 32 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 11925 lbf
  • Static Radial Load 18450 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11100 rpm
  • Weight 288 g

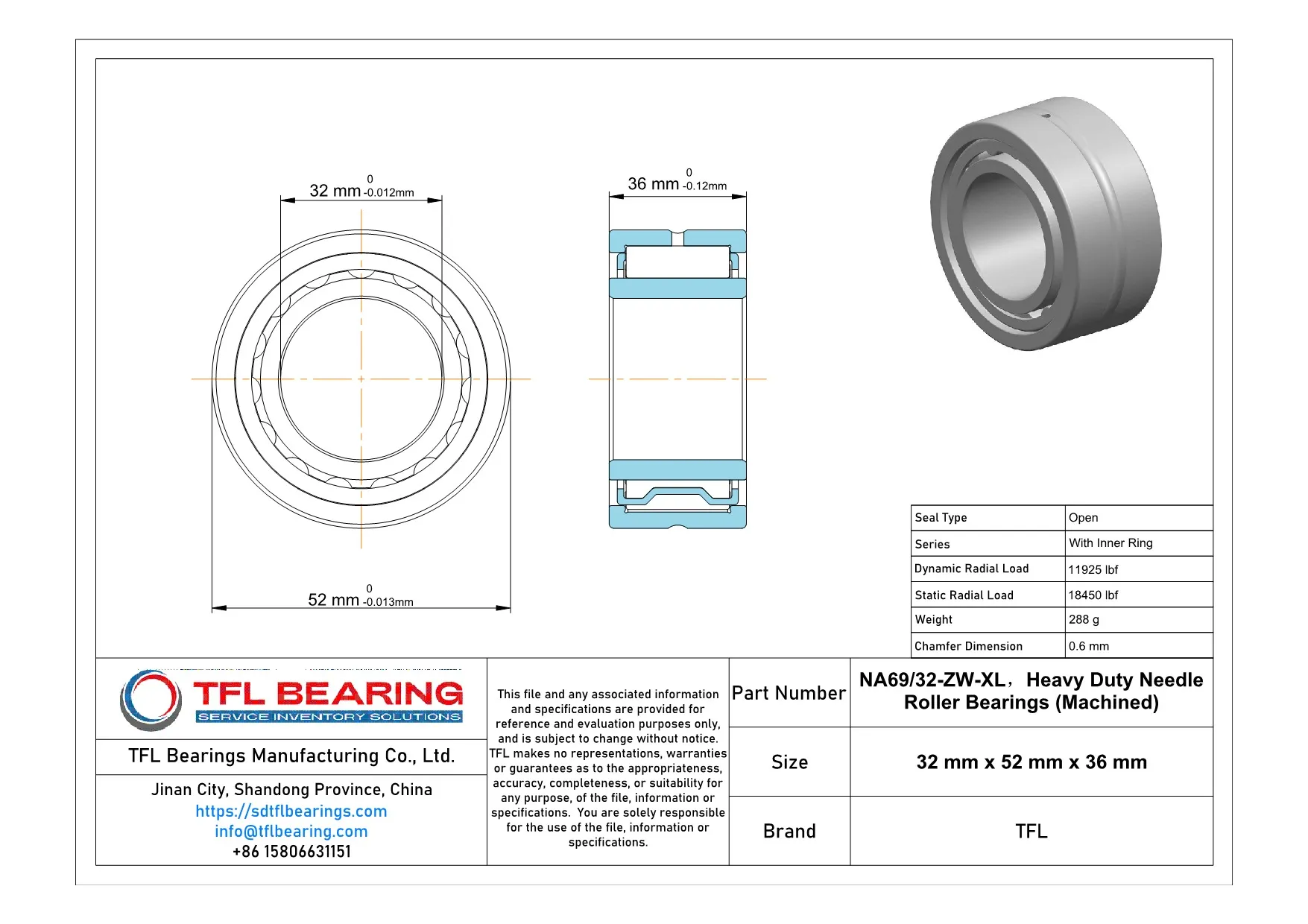

Heavy Duty Needle Roller Bearings (Machined) NA69/32-ZW-XL dimension drawing
Download DWG Download PDF

Features

How Does NA69/32-ZW-XL Bearing Handle Heavy Loads?
NA69/32-ZW-XL Bearing is built with double-row steel rollers, offering high radial load capacity up to 11925 lbf.
Its robust steel construction ensures durability in demanding industrial applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 11,100 rpm, it delivers reliable performance under heavy loads.

Application

Industrial Uses of NA69/32-ZW-XL Bearing
NA69/32-ZW-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The steel construction ensures durability in demanding environments.
Where Is NA69/32-ZW-XL Bearing Used?
In automotive applications, NA69/32-ZW-XL Bearing fits well in gearboxes and transmission systems, providing reliable performance under high-speed conditions. Its press-fit mounting simplifies installation in tight spaces.
Built for Heavy-Duty Use: NA69/32-ZW-XL Bearing
For automation systems, NA69/32-ZW-XL Bearing supports robotic arms and conveyor belts, offering smooth operation and long service life. The open design allows for easy lubrication and maintenance.
Automotive vs Industrial: Applications of NA69/32-ZW-XL Bearing
NA69/32-ZW-XL Bearing excels in both automotive and industrial settings, balancing high load capacity with compact dimensions. Its compatibility with INA models makes it a versatile choice for various machinery.
