Four-Point Contact Angular Contact Ball Bearings (General) QJ 213 N2PHAS

Four-Point Contact Angular Contact Ball Bearings (General) QJ 213 N2PHAS

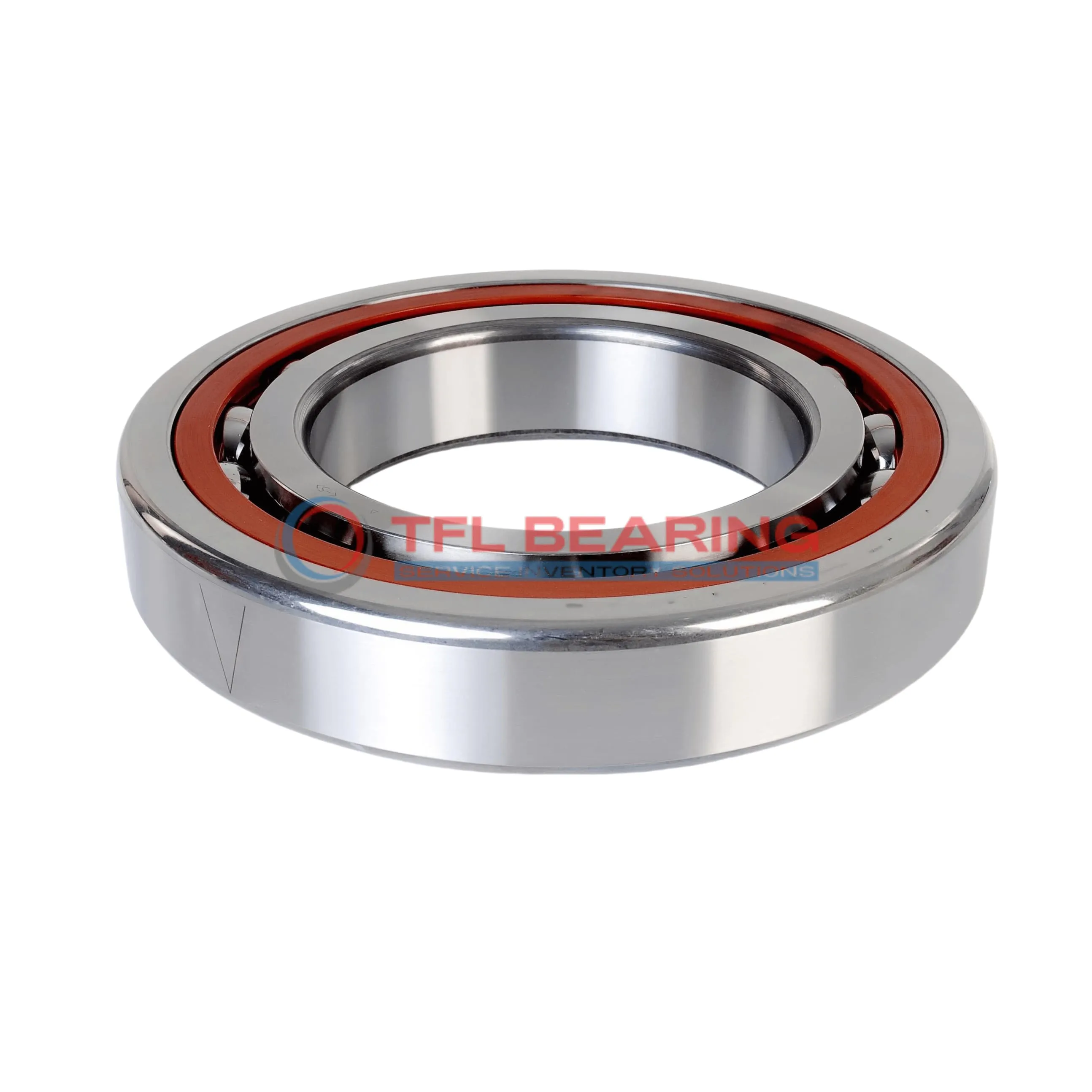

The QJ 213 N2PHAS is a four-point contact angular contact ball bearing, measuring 65mm by 120mm by 23mm. Made from chrome steel, it’s built to handle both radial and axial loads with ease.

With a dynamic radial load capacity of 24750 lbf, it spins smoothly at speeds up to 9500 RPM. The P6 tolerance class ensures precise performance, while the Peek cage offers durability.

Its open design allows for easy lubrication, making maintenance straightforward. The bearing operates well in temperatures from -30°C to 110°C.

Ideal for industrial machinery or gear systems, this model is interchangeable with SKF bearings. Weighing 1.2kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number QJ 213 N2PHAS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 78.5 mm
  • Internal Diameter On Outer Ring 101 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 65 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Peek
  • Dynamic Radial Load 24750 lbf
  • Static Radial Load 25200 lbf
  • Max Speed 9500 rpm
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Weight 1.2 kg
Four-Point Contact Angular Contact Ball Bearings (General) QJ 213 N2PHAS dimension drawing
Download DWG Download PDF

Features

Performance Features of QJ 213 N2PHAS Bearing

QJ 213 N2PHAS Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24,750 lbf, making it suitable for heavy-duty applications.

The Peek cage ensures smooth operation and reduces friction, enhancing the bearing’s efficiency.
With a maximum speed of 9,500 rpm, it delivers reliable performance in high-speed conditions.

QJ 213 N2PHAS Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in various environments.
Its open design allows for easy lubrication, reducing maintenance requirements.

The precision-engineered construction of QJ 213 N2PHAS Bearing ensures long service life and consistent performance.
Its four-point contact design provides stability and reduces wear under heavy loads.

Application

Key Fields for QJ 213 N2PHAS Bearing
QJ 213 N2PHAS Bearing is widely used in industrial machinery, especially in applications needing high radial and axial load capacity, like gearboxes and pumps. Its four-point contact design ensures stability even under heavy loads.

In automotive systems, QJ 213 N2PHAS Bearing fits well in transmissions and wheel hubs, where its precision and durability enhance performance. The P6 tolerance class makes it suitable for demanding automotive standards.

For automation equipment, QJ 213 N2PHAS Bearing supports robotic arms and CNC machines, thanks to its smooth operation and high-speed capability. The Peek cage material reduces friction, extending service life in continuous-use scenarios.

Medical imaging devices benefit from QJ 213 N2PHAS Bearing’s reliable performance and low maintenance needs. Its chrome steel construction ensures long-term accuracy in critical applications.

In household appliances like washing machines, QJ 213 N2PHAS Bearing provides quiet and efficient operation. The lubricated design minimises wear, making it ideal for daily use.
