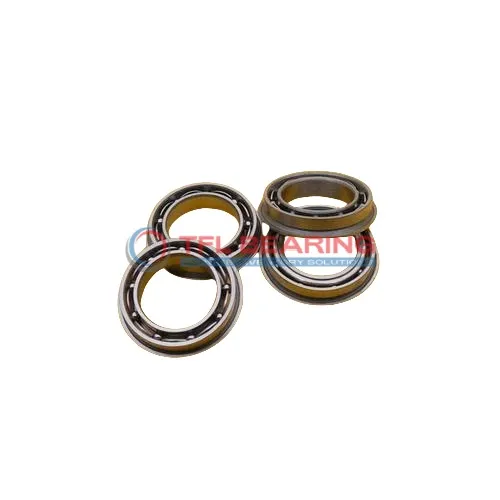

Flanged Deep Groove Ball Bearings W 626 R

Flanged Deep Groove Ball Bearings W 626 R

The W 626 R is a compact flanged deep groove ball bearing, measuring 6mm by 19mm with a 6mm width. Its stainless steel construction ensures durability and resistance to corrosion.

This bearing handles radial loads up to 344 lbf and can spin at speeds up to 56,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange provides added stability, helping the bearing stay securely in place during operation. Its lightweight design, at just 8.2 grams, makes it easy to handle and install.

Ideal for small machinery, electric motors, or appliances where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial and domestic uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 626 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 132 lbf
  • Max Speed 56000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0082 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 626 R dimension drawing
Download DWG Download PDF

Features

How Does W 626 R Bearing Reduce Friction?

W 626 R Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.

Its single-row deep groove design enhances load distribution, improving efficiency in radial applications.

The open seal type allows for easy lubrication, maintaining performance over time.

With a maximum speed of 56,000 rpm, it delivers reliable performance in high-speed conditions.

Application

Industrial Uses of W 626 R Bearing
W 626 R Bearing is commonly used in small industrial motors and pumps, where its compact size and stainless steel construction offer reliable performance. The flanged design helps with easy mounting and alignment in tight spaces.

Where Is W 626 R Bearing Used?
You’ll often find W 626 R Bearing in automotive applications like electric window mechanisms or small gearboxes. Its high-speed capability and corrosion resistance make it a dependable choice for these systems.

Perfect Fit for Automation: W 626 R Bearing
In robotics and automation, W 626 R Bearing works well in lightweight joints and conveyor guides. The open seal design allows for smooth movement, while the stainless steel materials ensure longevity.

Medical vs Industrial: Where W 626 R Bearing Excels
W 626 R Bearing suits both medical devices like dental tools and industrial equipment like small fans. Its precision and resistance to wear make it versatile across different environments.

Essential Roles of W 626 R Bearing
For household appliances such as blenders or printers, W 626 R Bearing provides quiet and efficient operation. The metric sizing ensures compatibility with a variety of consumer products.
