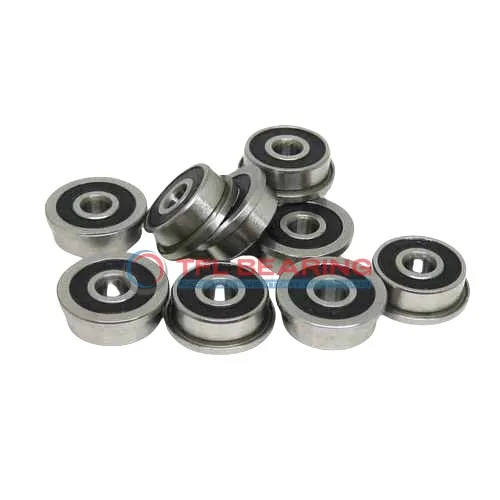

Flanged Deep Groove Ball Bearings W 61900 R-2RS1

Flanged Deep Groove Ball Bearings W 61900 R-2RS1

The W 61900 R-2RS1 is a compact flanged deep groove ball bearing, measuring 10mm by 22mm with a 6mm width. Its stainless steel construction offers good resistance to wear and corrosion, making it durable for various applications.

This bearing handles radial loads up to 526 lbf and can spin at speeds up to 20,000 RPM, thanks to its sealed design which keeps grease in and contaminants out. The flange provides extra stability, making it easier to mount securely.

With a temperature range of -30°C to 120°C, it’s suitable for environments with moderate heat or cold. The sealed design reduces maintenance needs, while the lightweight (0.011kg) makes it easy to handle.

Ideal for small machinery, electric motors, or devices where space is limited but reliable performance is needed. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61900 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 25 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 526 lbf
  • Static Radial Load 281 lbf
  • Max Speed 20000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.011 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61900 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 61900 R-2RS1 Bearing Reduce Friction?

W 61900 R-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.

The single-row construction and precision-engineered grooves enhance load distribution, minimising wear.

With a maximum speed of 20,000 rpm, it delivers efficient performance in radial load applications.

Its grease lubrication further reduces friction, extending the bearing’s service life.

Application

Where Is W 61900 R-2RS1 Bearing Used?
W 61900 R-2RS1 Bearing is commonly seen in small electric motors, where its compact size and sealed design keep dust and moisture out. The stainless steel construction also makes it suitable for damp environments, like food processing equipment.

In automotive applications, W 61900 R-2RS1 Bearing fits well in components like window regulators or wiper systems, thanks to its radial load capacity. The flange adds extra stability, preventing misalignment in tight spaces.

For consumer electronics, W 61900 R-2RS1 Bearing ensures smooth rotation in devices like cooling fans or small printers. Its grease lubrication reduces noise, making it ideal for quiet household appliances.

The sealed design of W 61900 R-2RS1 Bearing also works well in medical devices, such as handheld diagnostic tools, where hygiene and reliability are key. The metric sizing ensures easy integration with standard components.
