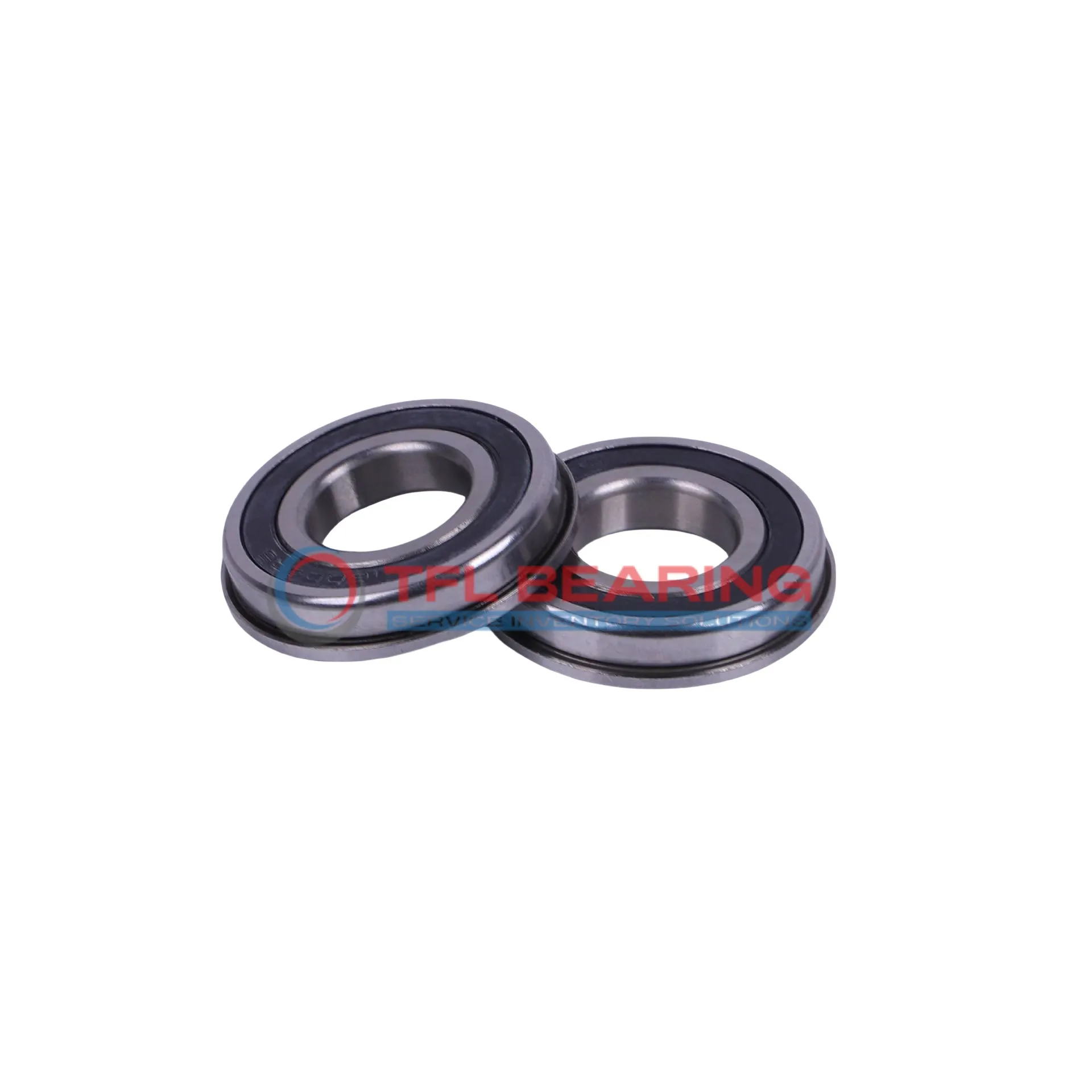

Flanged Deep Groove Ball Bearings W 619/6 R-2RS1

Flanged Deep Groove Ball Bearings W 619/6 R-2RS1

The W 619/6 R-2RS1 is a compact flanged deep groove ball bearing, measuring 6mm by 15mm with a 5mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This sealed bearing handles radial loads up to 171 lbf and can spin at speeds up to 30,000 RPM. Its grease lubrication ensures smooth operation with minimal maintenance needed.

The flange design provides secure mounting, preventing slippage in tight spaces. Ideal for small machinery or precision instruments where space is limited.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious applications.

Weighing just 4.3 grams, it’s lightweight yet durable for its size. Interchangeable with SKF bearings, making replacements straightforward.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/6 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 17 mm
  • Flange Thickness 1.2 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 60 lbf
  • Max Speed 30000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0043 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 619/6 R-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 619/6 R-2RS1 Bearing for Precision Tasks?

W 619/6 R-2RS1 Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its sealed design keeps contaminants out, making it ideal for precision applications.

The single-row deep groove design allows for smooth radial load handling up to 171 lbf.
With a maximum speed of 30,000 rpm, it delivers reliable performance in high-speed operations.

The flange outer dia of 17 mm provides secure mounting, reducing misalignment risks.
Its compact size (6 mm×17 mm×5 mm) makes it suitable for space-constrained installations.

W 619/6 R-2RS1 Bearing operates efficiently within a temperature range of -30° to 120 °C.
Pre-greased and ready to use, it simplifies maintenance and extends service life.

Application

Industrial Uses of W 619/6 R-2RS1 Bearing
W 619/6 R-2RS1 Bearing is commonly used in small industrial motors and pumps, where its compact size and sealed design help prevent contamination. The stainless steel construction ensures durability in humid or corrosive environments.

How Does W 619/6 R-2RS1 Bearing Improve Performance?
In automation systems, W 619/6 R-2RS1 Bearing reduces friction in precision components like linear guides, enhancing movement accuracy. Its grease lubrication allows for quiet operation, ideal for noise-sensitive applications.

Perfect Fit for Automation: W 619/6 R-2RS1 Bearing
W 619/6 R-2RS1 Bearing works well in robotic arms and small conveyor systems, thanks to its flanged design for easy mounting. The high-speed capability makes it suitable for repetitive, fast-paced tasks.

Medical vs Industrial: Where W 619/6 R-2RS1 Bearing Excels
W 619/6 R-2RS1 Bearing is versatile enough for medical devices like dental tools, where hygiene matters, and industrial sensors requiring reliability. The sealed design keeps out dust and fluids in both settings.

Essential Roles of W 619/6 R-2RS1 Bearing
In consumer electronics, W 619/6 R-2RS1 Bearing ensures smooth rotation in devices like cooling fans and small printers. Its lightweight design doesn’t add unnecessary bulk to compact gadgets.
