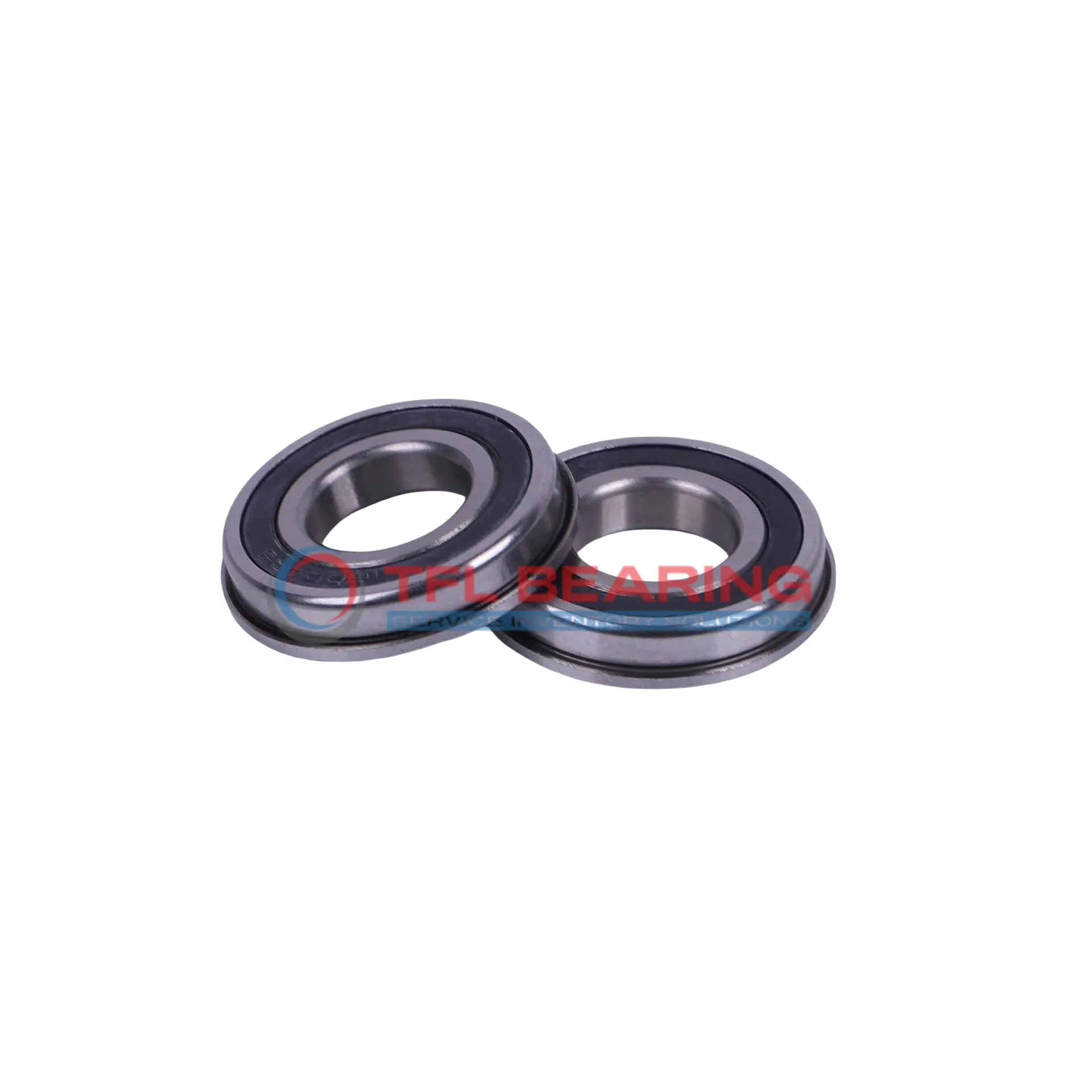

Flanged Deep Groove Ball Bearings W 607 R-2RS1

Flanged Deep Groove Ball Bearings W 607 R-2RS1

The W 607 R-2RS1 is a compact flanged deep groove ball bearing, measuring 7mm by 19mm with a 6mm width. Its stainless steel construction offers good corrosion resistance and durability.

This sealed bearing handles radial loads up to 344 lbf and can spin at speeds up to 24,000 RPM. The built-in flange provides secure mounting, while the grease lubrication ensures smooth operation.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, making replacements straightforward.

Ideal for small machinery or appliances where space is limited but reliable performance is needed. Weighing just 8.3 grams, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 607 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 132 lbf
  • Max Speed 24000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0083 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 607 R-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 607 R-2RS1 Bearing for Precision Tasks?

W 607 R-2RS1 Bearing features a sealed design, keeping contaminants out and ensuring smooth operation.

Its stainless steel construction provides excellent resistance to corrosion, making it suitable for various environments.

The flanged outer ring offers easy mounting and alignment, saving installation time.

With a maximum speed of 24,000 rpm, it delivers reliable performance in high-speed applications.

Application

Industrial Uses of W 607 R-2RS1 Bearing
W 607 R-2RS1 Bearing is commonly used in small industrial motors and pumps, where its sealed design helps keep contaminants out. The stainless steel construction ensures durability in humid or corrosive environments.

Where Is W 607 R-2RS1 Bearing Used?
You’ll often find W 607 R-2RS1 Bearing in automotive applications like window regulators and wiper motors. Its compact size and reliable performance make it a go-to choice for tight spaces.

Perfect Fit for Automation: W 607 R-2RS1 Bearing
W 607 R-2RS1 Bearing works well in robotic arms and small conveyor systems, thanks to its smooth operation and low maintenance needs. The flange design adds extra stability during high-speed movements.

Medical vs Industrial: Where W 607 R-2RS1 Bearing Excels
In medical devices like dental tools, W 607 R-2RS1 Bearing offers quiet and precise rotation. For industrial uses, it’s great in food processing equipment where hygiene is a priority.
