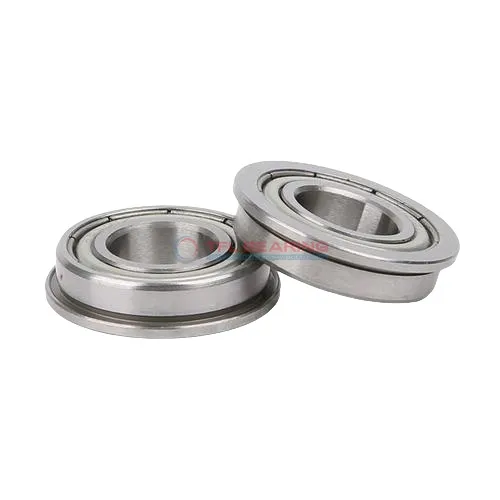

Flanged Deep Groove Ball Bearings W 605 R-2Z

Flanged Deep Groove Ball Bearings W 605 R-2Z

The W 605 R-2Z is a compact flanged deep groove ball bearing, measuring 5mm by 16mm by 5mm, crafted entirely from stainless steel for durability. It handles radial loads up to 171 lbf and spins smoothly at speeds up to 53,000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The flange adds stability, helping the bearing stay securely in place during operation.

This model works well in temperatures from -30°C to 120°C and is interchangeable with SKF bearings. Ideal for small machinery, electric motors, or appliances where space is limited.

Weighing just 0.0038kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 605 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 16 mm
  • Flange Thickness 1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 58 lbf
  • Max Speed 53000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0038 kg
  • Price（$） 1.7
Flanged Deep Groove Ball Bearings W 605 R-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 605 R-2Z Bearing Reduce Friction?

W 605 R-2Z Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design keeps contaminants out, maintaining consistent performance over time.
The single-row construction and precision tolerances contribute to its efficient radial load handling.
With a maximum speed of 53,000 rpm, it is ideal for high-speed applications.

Application

Industrial Uses of W 605 R-2Z Bearing
W 605 R-2Z Bearing is commonly used in small industrial equipment like electric motors and pumps, where its shielded design helps keep contaminants out. The stainless steel construction ensures it can handle moderate radial loads without corrosion issues.

Where Is W 605 R-2Z Bearing Used?
You’ll often find W 605 R-2Z Bearing in automotive applications such as window regulators and small gearboxes. Its compact size and grease lubrication make it ideal for tight spaces requiring smooth rotation.

Perfect Fit for Automation: W 605 R-2Z Bearing
In robotics and automation, W 605 R-2Z Bearing works well in joints and small actuators due to its low friction and high-speed capability. The flange design adds extra stability during movement.

Medical vs Industrial: Where W 605 R-2Z Bearing Excels
W 605 R-2Z Bearing is versatile enough for medical devices like dental tools, thanks to its stainless steel hygiene benefits. In industrial settings, it’s equally reliable for conveyor rollers and packaging machines.

Light-Duty vs Heavy-Duty: Best Uses for W 605 R-2Z Bearing
For light-duty tasks, W 605 R-2Z Bearing shines in household appliances like blenders or printers. Its shielded seals and grease fill extend service life even with frequent use.
