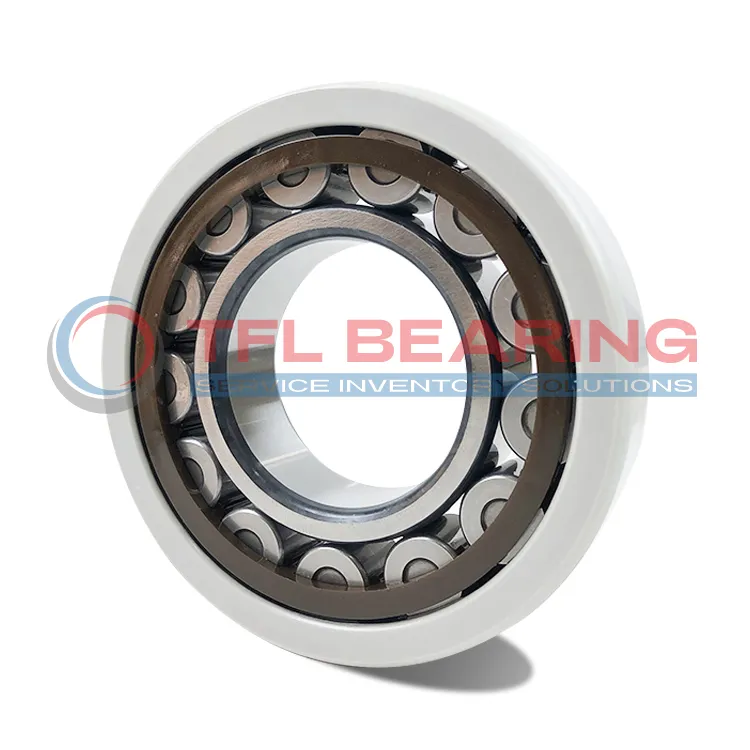

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP220-E-XL-TVP2-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP220-E-XL-TVP2-J20AA-C4

The FAG NUP220-E-XL-TVP2-J20AA-C4 is a current-insulated cylindrical roller bearing with a 100mm bore and 180mm outer diameter, designed to handle heavy loads. Its outer ring features a ceramic coating, providing electrical insulation up to 1000V.

With a dynamic load rating of 295 kN and a static load rating of 305 kN, this bearing is built for durability. It can reach speeds up to 3450 RPM, making it suitable for high-performance applications.

The plastic molded cage ensures smooth operation, while the C4 radial clearance allows for thermal expansion. The ceramic coating maintains high electrical resistance, even in damp conditions (10MΩ).

Ideal for electric motors or generators, this bearing prevents current leakage and reduces wear. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial machinery. Weighing 3.61 kg, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NUP220-E-XL-TVP2-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 180.0 mm
  • Width 34.0 mm
  • Net Weight 3.61 kg
  • Basic Dynamic Load Rating 295 kN
  • Basic Static Load Rating 305 kN
  • Reference Speed 3450r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

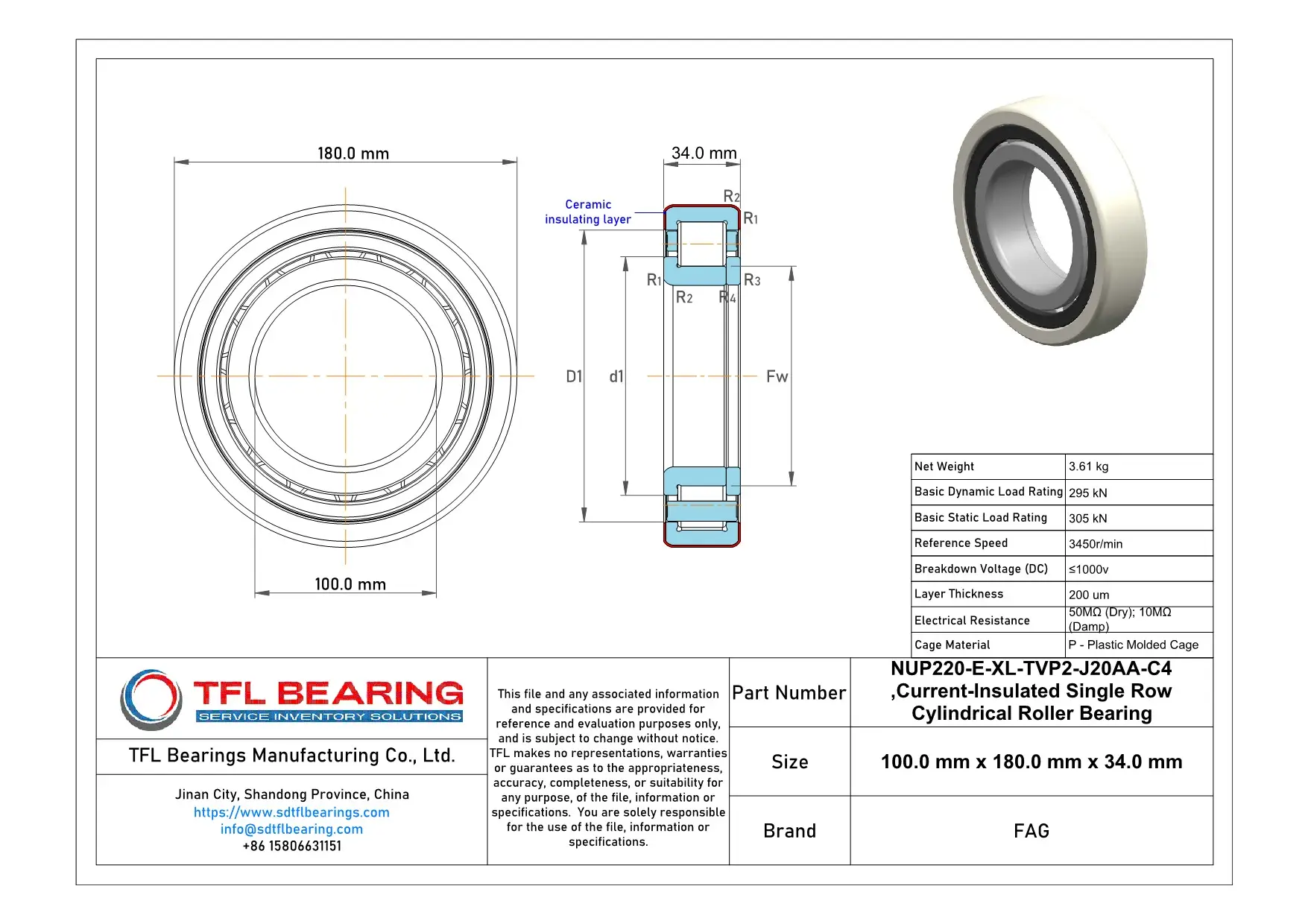

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP220-E-XL-TVP2-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

How Is NUP220-E-XL-TVP2-J20AA-C4 Bearing Engineered for Reliability?

NUP220-E-XL-TVP2-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.

With a basic dynamic load rating of 295 kN, it handles heavy radial loads efficiently.
The plastic molded cage ensures smooth operation and reduces friction.

NUP220-E-XL-TVP2-J20AA-C4 Bearing operates at speeds up to 3450r/min, balancing performance and durability.
Its C4 radial internal clearance allows for thermal expansion in high-temperature applications.

The coating offers high electrical resistance, even in damp conditions, ensuring long-term reliability.
This makes it suitable for use in motors and generators where electrical insulation is crucial.
