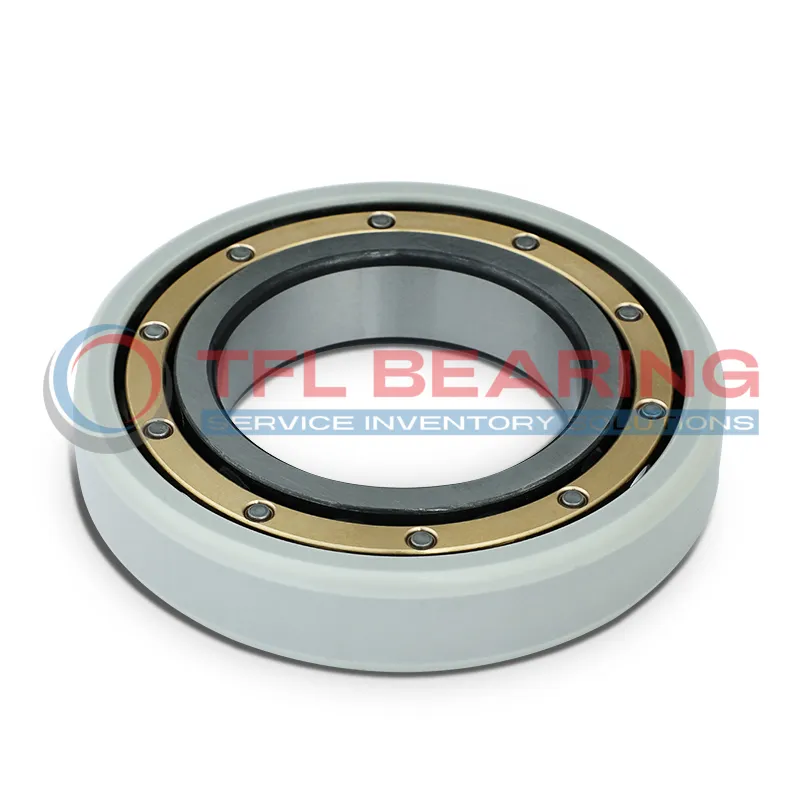

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP1017-XL-M1-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP1017-XL-M1-F1-J20AA-C3

The FAG NUP1017-XL-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 85mm bore, 130mm outer diameter, and 22mm width. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.

This bearing handles dynamic loads up to 93 kN and static loads of 103 kN, with a reference speed of 4750 rpm. The brass cage ensures smooth operation and durability under heavy loads.

The insulating coating provides high electrical resistance (50MΩ when dry) and can withstand voltages up to 1000V. Its C3 radial clearance makes it suitable for applications with thermal expansion.

Ideal for electric motors or generators where electrical insulation is needed. Compliant with RoHS and REACH standards, it weighs 1.082kg for easy handling during installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NUP1017-XL-M1-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 85.0 mm
  • Outside Diameter 130.0 mm
  • Width 22.0 mm
  • Net Weight 1.082 kg
  • Basic Dynamic Load Rating 93 kN
  • Basic Static Load Rating 103 kN
  • Reference Speed 4750r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

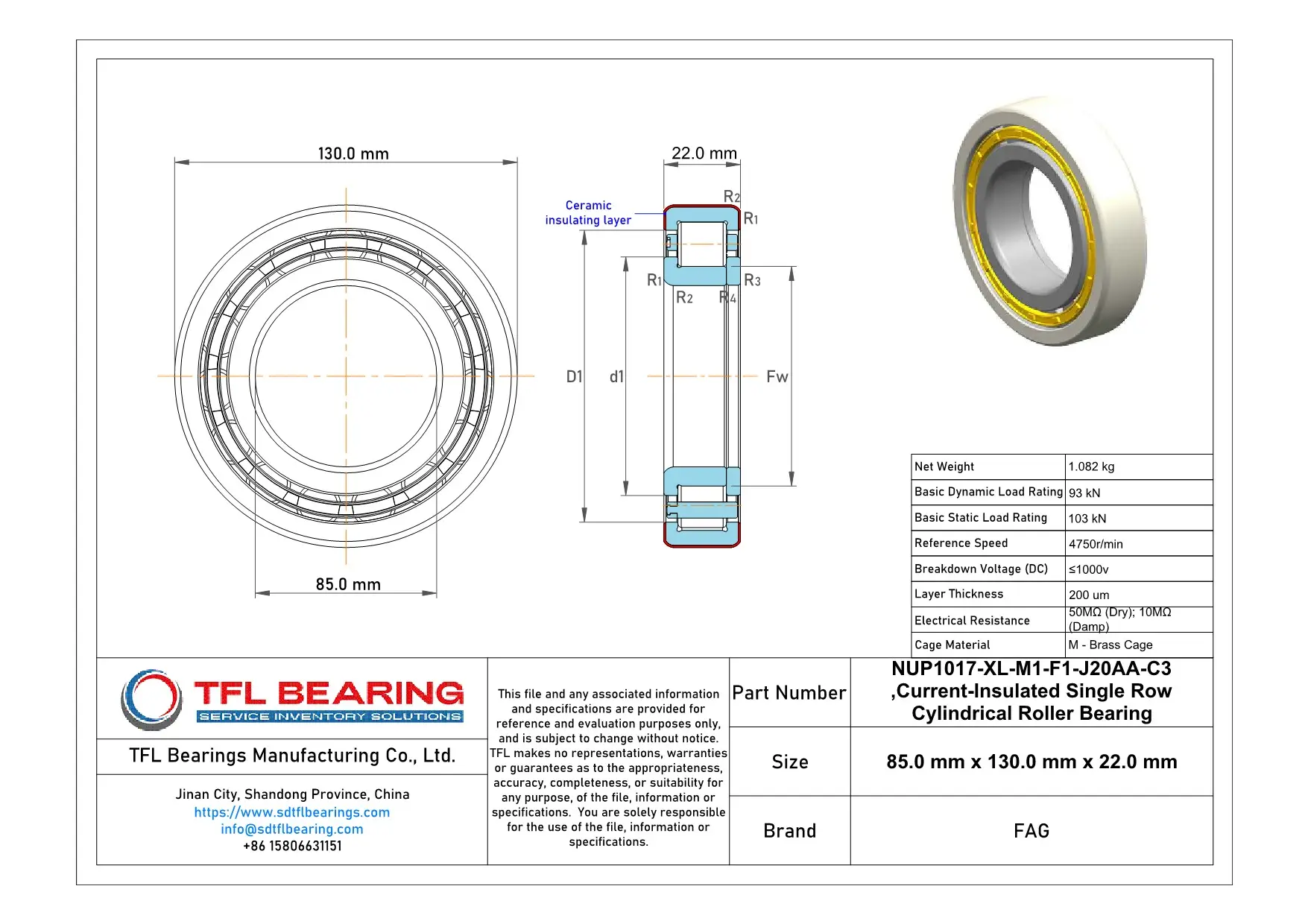

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP1017-XL-M1-F1-J20AA-C3 dimension drawing
