FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-XL-M1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-XL-M1-J20AA-C3

The FAG NU328-E-XL-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 140mm bore and 300mm outer diameter, designed for heavy-duty applications. Its outer ring features a ceramic coating, providing electrical insulation up to 1000V.

With a dynamic load rating of 790 kN and a static load rating of 800 kN, it handles high radial loads efficiently. The brass cage ensures smooth operation at speeds up to 2170 rpm, even in demanding conditions.

The C3 radial clearance allows for thermal expansion, making it suitable for environments with temperature fluctuations. Its insulating properties prevent electrical arcing, ideal for use in electric motors or generators.

Weighing 22.6 kg, this robust bearing is ROHS and REACH compliant, ensuring safety and environmental standards are met. Perfect for industrial machinery where electrical insulation and durability are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU328-E-XL-M1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 140.0 mm
  • Outside Diameter 300.0 mm
  • Width 62.0 mm
  • Net Weight 22.6 kg
  • Basic Dynamic Load Rating 790 kN
  • Basic Static Load Rating 800 kN
  • Reference Speed 2170r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

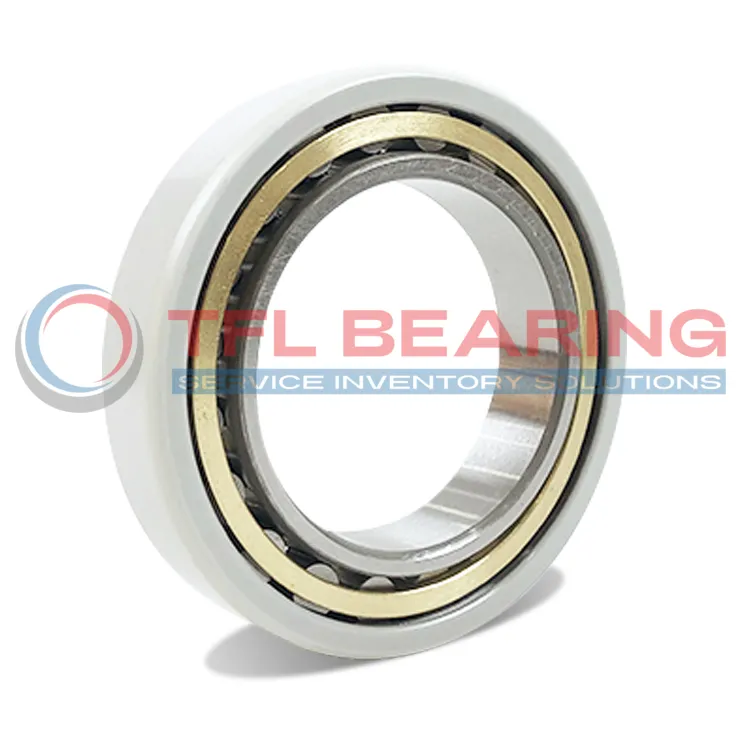

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-XL-M1-J20AA-C3 dimension drawing
Download DWG Download PDF
