FAG Current-Insulated Single Row Cylindrical Roller Bearing NU216-E-XL-M1-F1-J20AA-R105-125NA

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU216-E-XL-M1-F1-J20AA-R105-125NA

The FAG NU216-E-XL-M1-F1-J20AA-R105-125NA is a current-insulated cylindrical roller bearing with an 80mm bore and 140mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating (J20AA) to prevent current damage, making it ideal for electric motors or generators.

With a dynamic load rating of 166 kN and a static load rating of 168 kN, it supports heavy radial loads while maintaining smooth operation. The brass cage ensures durability, and it can reach speeds up to 4200 RPM.

The insulating coating provides high breakdown voltage (up to 1000V) and excellent electrical resistance (50MΩ dry, 10MΩ damp). Its normal radial clearance (Cn) allows for reliable performance in varying conditions.

Weighing 1.71kg, this bearing is robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for applications where electrical insulation is critical.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU216-E-XL-M1-F1-J20AA-R105-125NA
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 80.0 mm
  • Outside Diameter 140.0 mm
  • Width 26.0 mm
  • Net Weight 1.71 kg
  • Basic Dynamic Load Rating 166 kN
  • Basic Static Load Rating 168 kN
  • Reference Speed 4200r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance Cn Normal Internal Play
  • ROHS Compliant
  • REACH Compliant

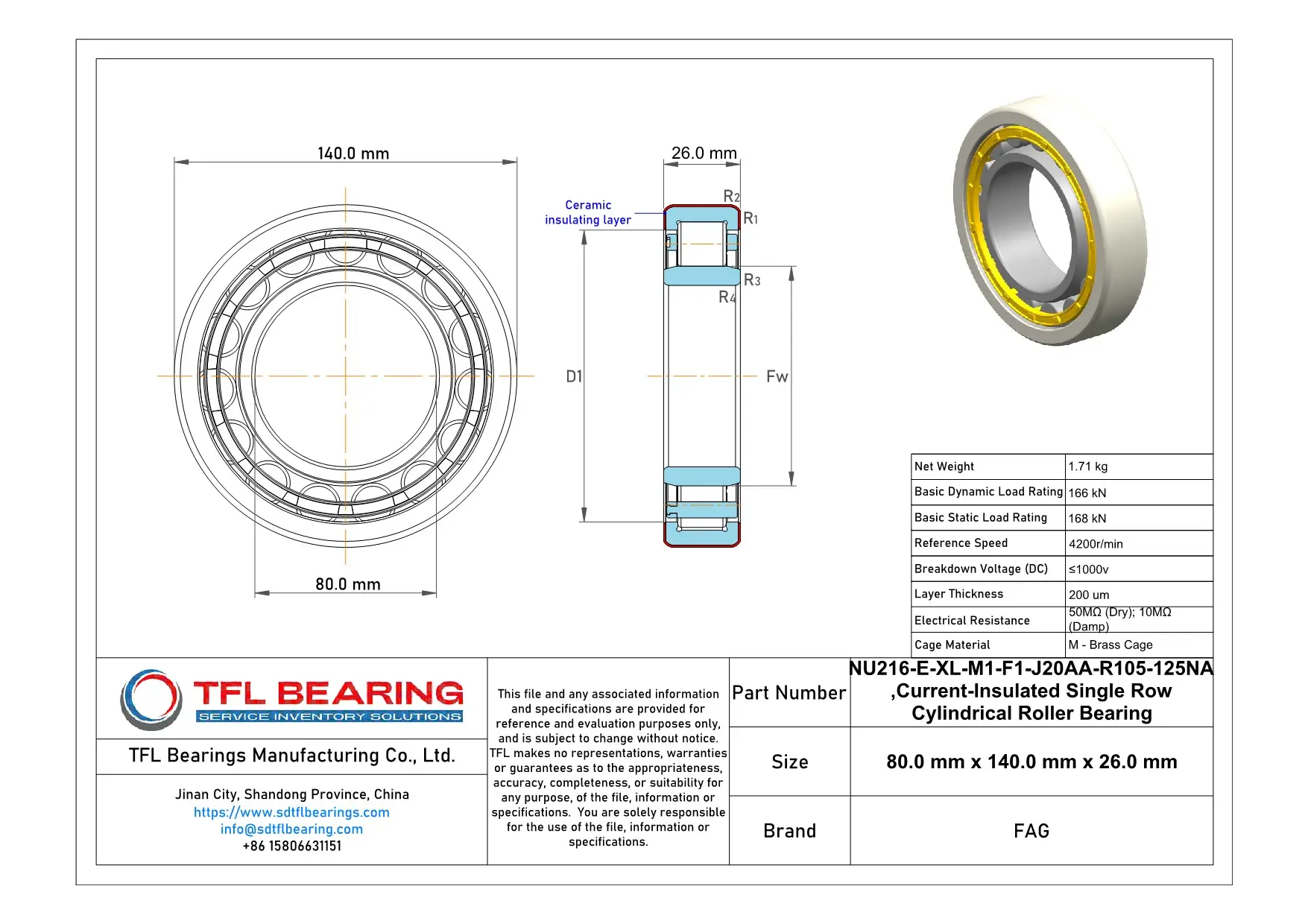

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU216-E-XL-M1-F1-J20AA-R105-125NA dimension drawing
Download DWG Download PDF

Features

How Does NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing Resist Electrical Current?

NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.

Its brass cage ensures smooth operation and durability, even in demanding conditions.
With a basic dynamic load rating of 166 kN, it handles heavy loads reliably.

The bearing maintains performance in damp environments, with an electrical resistance of 10MΩ.
Its normal internal play (Cn) ensures optimal fit and function in various applications.

NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing is ROHS and REACH compliant, meeting environmental standards.
Its compact size (80.0 mm x 140.0 mm x 26.0 mm) makes it versatile for different machinery setups.

Application

Industrial Uses of NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing
NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high rotational speeds.

In automation systems, NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing supports robotic arms and conveyor belts, thanks to its robust load capacity. The ceramic coating adds durability in environments with electrical interference.

For wind turbines, NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing handles heavy radial loads while resisting electrical arcing. Its normal internal play makes it suitable for fluctuating operational conditions.

In industrial pumps, NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing’s high dynamic load rating ensures reliable performance. The damp electrical resistance feature is particularly useful in humid environments.

NU216-E-XL-M1-F1-J20AA-R105-125NA Bearing also finds use in railway applications, where its insulation properties protect against stray currents. The compact design fits well in tight spaces without compromising performance.
