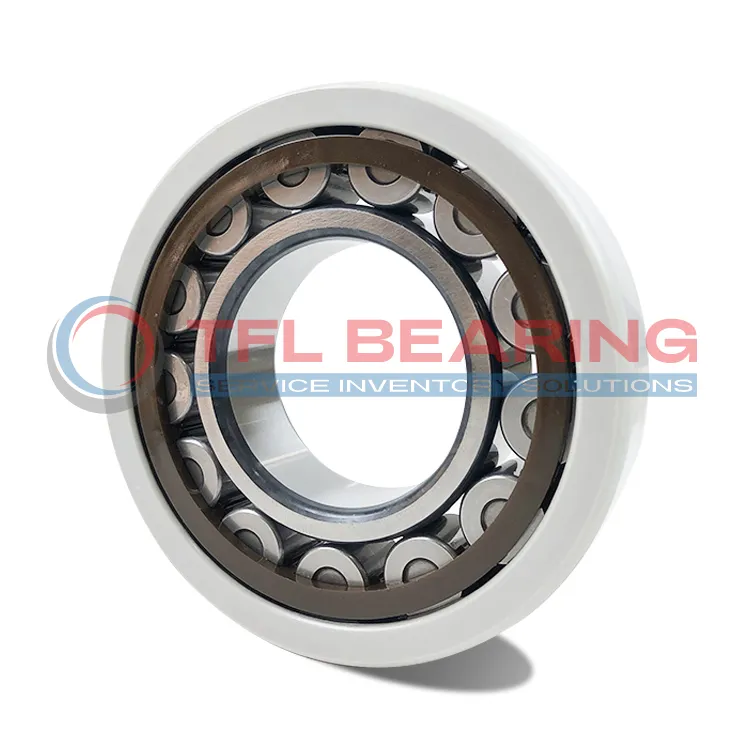

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-TVP2-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-TVP2-J20AA-C3

The FAG NU215-E-TVP2-J20AA-C3 is a current-insulated cylindrical roller bearing with a 75mm bore and 130mm outer diameter, designed for electrical applications. Its outer ring features a ceramic coating to prevent electrical currents from damaging the bearing.

With a dynamic load rating of 155 kN and a static load rating of 157 kN, it handles heavy loads while maintaining smooth operation. The plastic cage ensures quiet running and reduces friction.

This bearing can reach speeds up to 4400 rpm and operates effectively in damp conditions, with an electrical resistance of 10MΩ. The C3 radial clearance allows for thermal expansion in demanding environments.

Ideal for electric motors or generators, it complies with RoHS and REACH standards. Weighing 1.27kg, it’s a robust choice for industrial settings where electrical insulation is crucial.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU215-E-TVP2-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 75.0 mm
  • Outside Diameter 130.0 mm
  • Width 25.0 mm
  • Net Weight 1.27 kg
  • Basic Dynamic Load Rating 155 kN
  • Basic Static Load Rating 157 kN
  • Reference Speed 4400r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-TVP2-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

What Makes NU215-E-TVP2-J20AA-C3 Bearing Suitable for High-Temperature Applications?

NU215-E-TVP2-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
This design ensures reliable performance in high-temperature environments, with a reference speed of 4,400 rpm.

The plastic molded cage reduces friction and wear, enhancing the bearing’s longevity.
With a basic dynamic load rating of 155 kN, it handles heavy loads efficiently.

Its breakdown voltage of ≤1000V makes it ideal for applications requiring electrical insulation.
The C3 radial internal clearance allows for thermal expansion, ensuring smooth operation.

Application

Industrial Uses of NU215-E-TVP2-J20AA-C3 Bearing
NU215-E-TVP2-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The ceramic outer ring coating ensures reliable performance in environments with stray currents.

Where Is NU215-E-TVP2-J20AA-C3 Bearing Used?
In wind turbines, NU215-E-TVP2-J20AA-C3 Bearing handles high radial loads while its insulation protects against electrical damage. The plastic cage reduces friction, making it ideal for high-speed applications.

Built for Heavy-Duty Use: NU215-E-TVP2-J20AA-C3 Bearing
NU215-E-TVP2-J20AA-C3 Bearing excels in industrial gearboxes, where its C3 clearance accommodates thermal expansion. The robust design ensures long service life even under demanding conditions.

Automotive vs Aerospace: Applications of NU215-E-TVP2-J20AA-C3 Bearing
In automotive alternators, NU215-E-TVP2-J20AA-C3 Bearing provides insulation against electrical currents. For aerospace applications, its lightweight design and high-speed capability are key advantages.

Perfect Fit for Automation: NU215-E-TVP2-J20AA-C3 Bearing
NU215-E-TVP2-J20AA-C3 Bearing is a reliable choice for robotic arms, offering smooth rotation and electrical insulation. The ceramic coating also resists wear in continuous operation.
