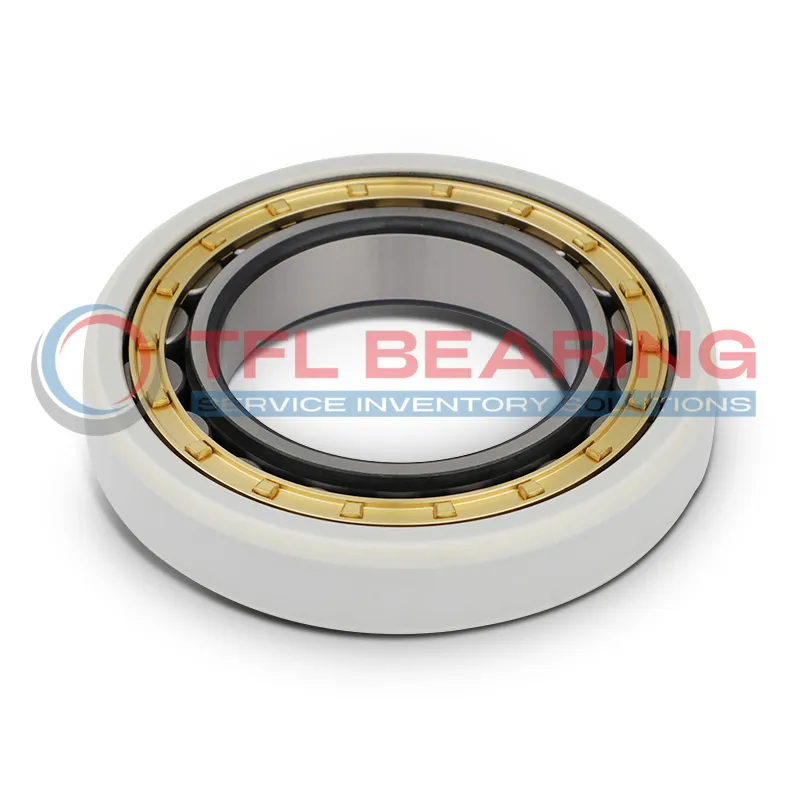

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1014-XL-M1-F1-J20AA-C4

The FAG NU1014-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 70mm bore and 110mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 1000V DC.

With a dynamic load rating of 77 kN and a static load rating of 81 kN, it handles heavy radial loads efficiently. The brass cage ensures smooth operation at speeds up to 5500 rpm.

The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. Its compact 20mm width and 0.71kg weight make it easy to integrate into various setups.

Ideal for electric motors or generators, this bearing is RoHS and REACH compliant, ensuring safety and environmental standards are met. The insulation properties protect against stray currents, extending equipment life.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Model NU1014-XL-M1-F1-J20AA-C4
Product Category Current-Insulated Cylindrical Roller Bearing Single Row
Insulating Coating Types Outer ring ceramic coated
Coating Suffix J20AA
Manufacturers FAG
Bore Diameter 70.0 mm
Outside Diameter 110.0 mm
Width 20.0 mm
Net Weight 0.71 kg
Basic Dynamic Load Rating 77 kN
Basic Static Load Rating 81 kN
Reference Speed 5500r/min
Breakdown Voltage (DC) ≤1000v
Layer Thic kNess 200 um
Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
Cage Material M - Brass Cage
Radial Internal Clearance C4
ROHS Compliant
REACH Compliant

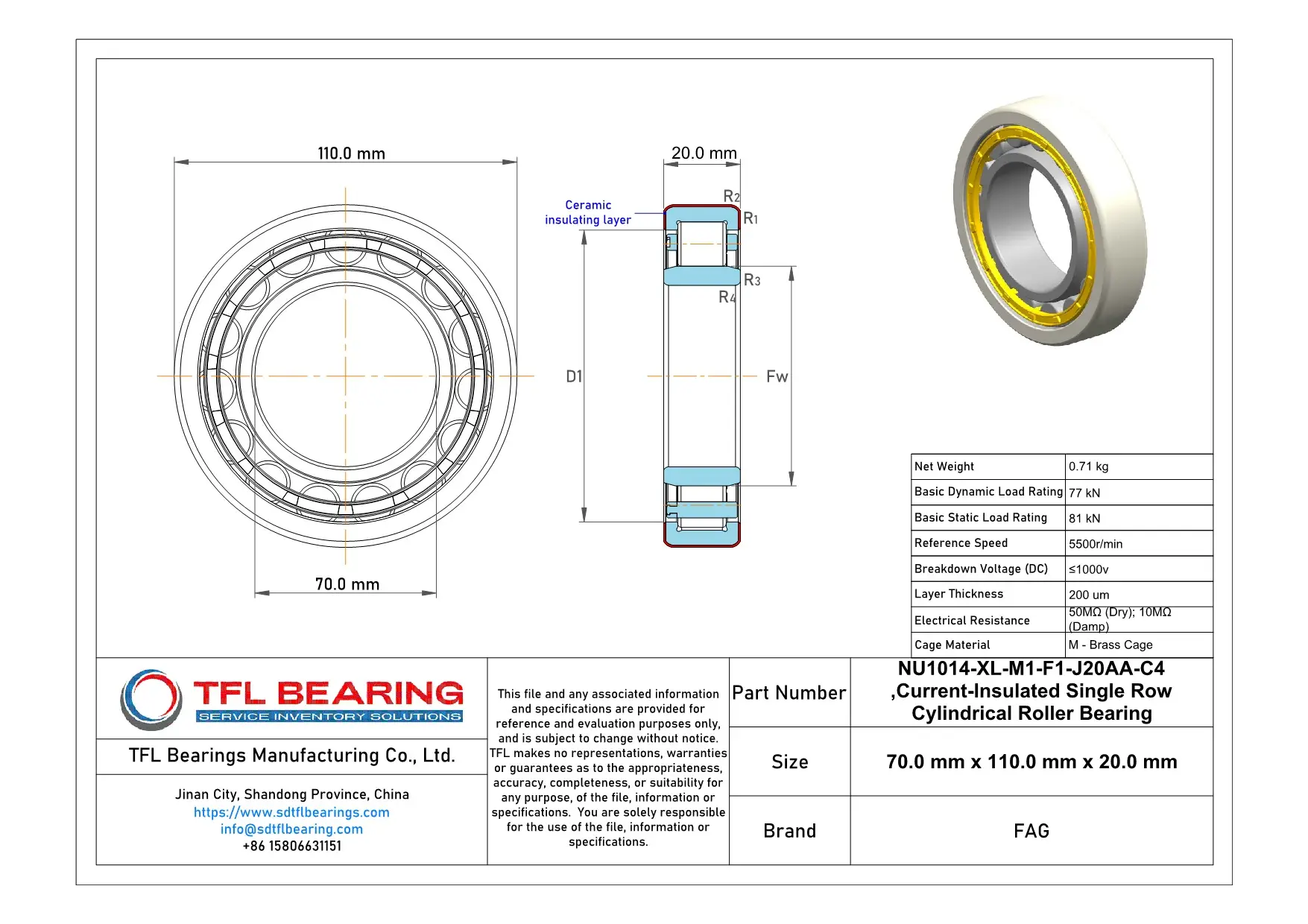

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1014-XL-M1-F1-J20AA-C4 dimension drawing

Download DWG Download PDF
