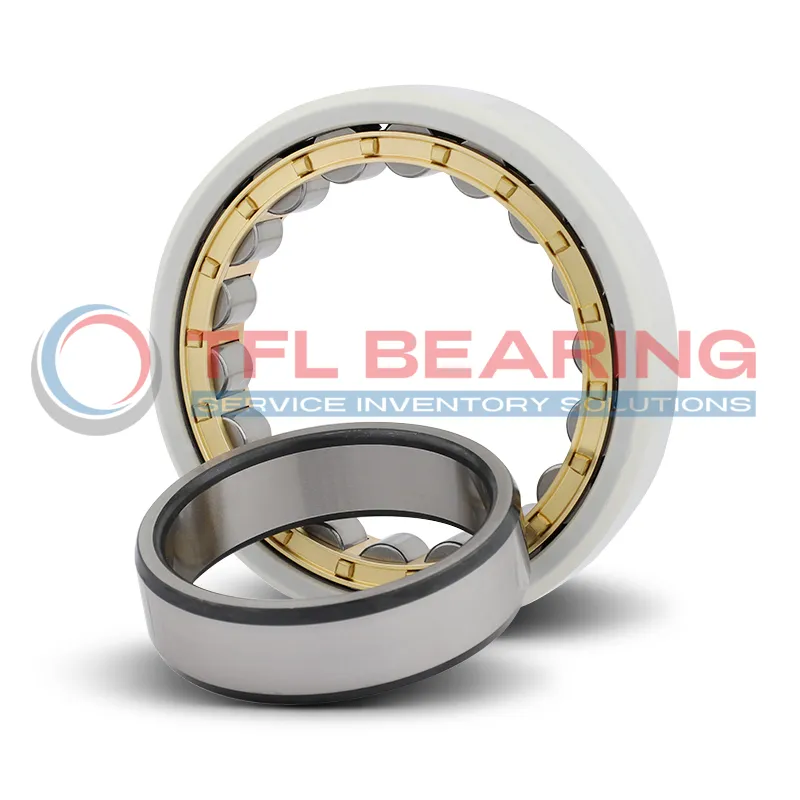

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ318-E-XL-M1-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ318-E-XL-M1-F1-J20AA-C4

The FAG NJ318-E-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 90mm bore and 190mm outer diameter, designed for heavy-duty applications. Its outer ring features a ceramic coating (J20AA) to prevent electrical arcing, with a breakdown voltage of up to 1000V.

This bearing handles dynamic loads up to 370 kN and static loads up to 350 kN, making it suitable for high-stress environments. The brass cage ensures smooth operation at speeds up to 3650 RPM, even in damp conditions where electrical resistance drops to 10MΩ.

With a C4 radial clearance, it accommodates thermal expansion in demanding settings. The 200-micron insulating layer and RoHS/REACH compliance make it safe for industrial use.

Ideal for electric motors or generators where current leakage must be avoided, this 6.3kg unit balances durability and electrical protection.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NJ318-E-XL-M1-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 90.0 mm
  • Outside Diameter 190.0 mm
  • Width 43.0 mm
  • Net Weight 6.3 kg
  • Basic Dynamic Load Rating 370 kN
  • Basic Static Load Rating 350 kN
  • Reference Speed 3650r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

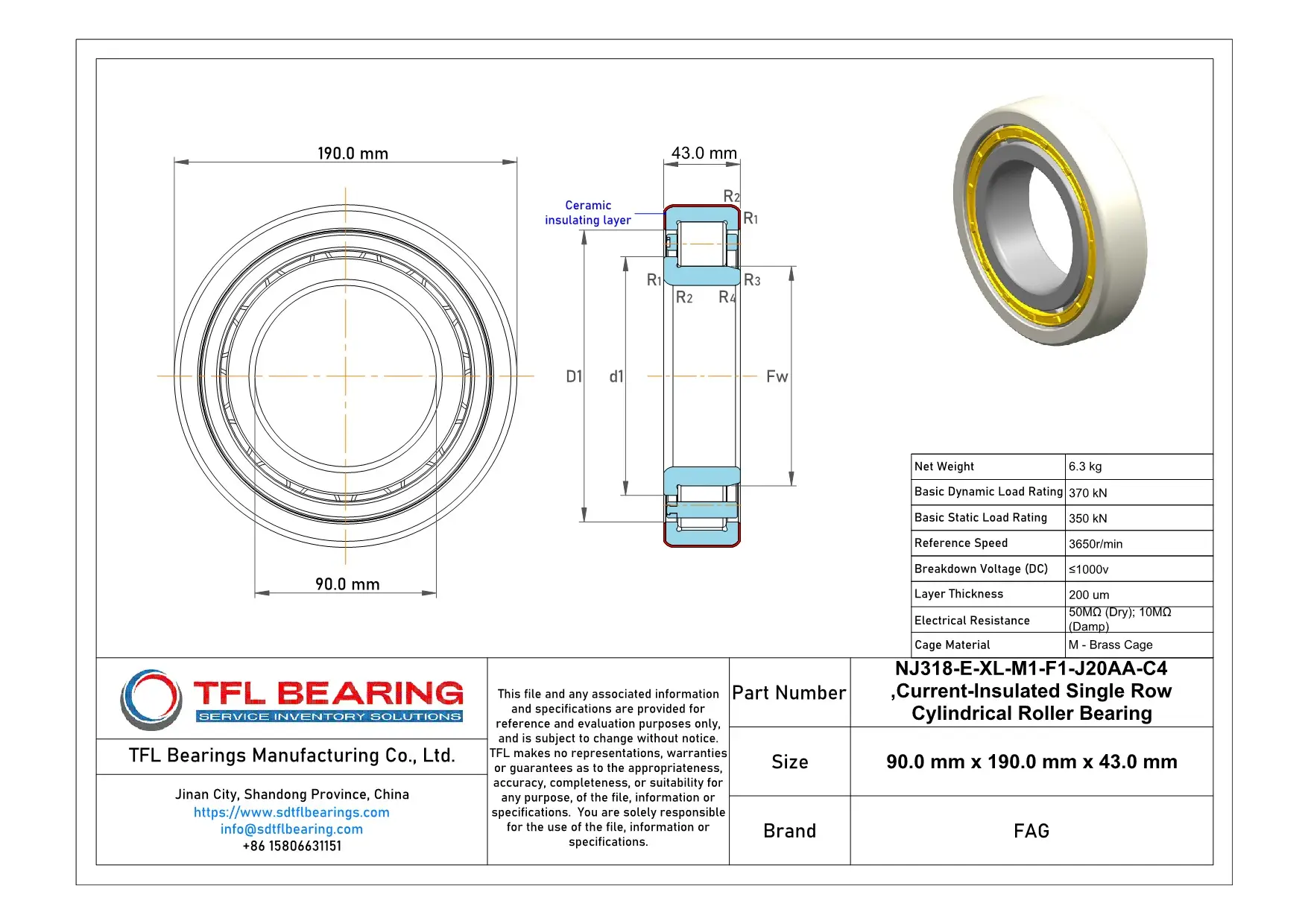

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ318-E-XL-M1-F1-J20AA-C4 dimension drawing
Download DWG Download PDF
