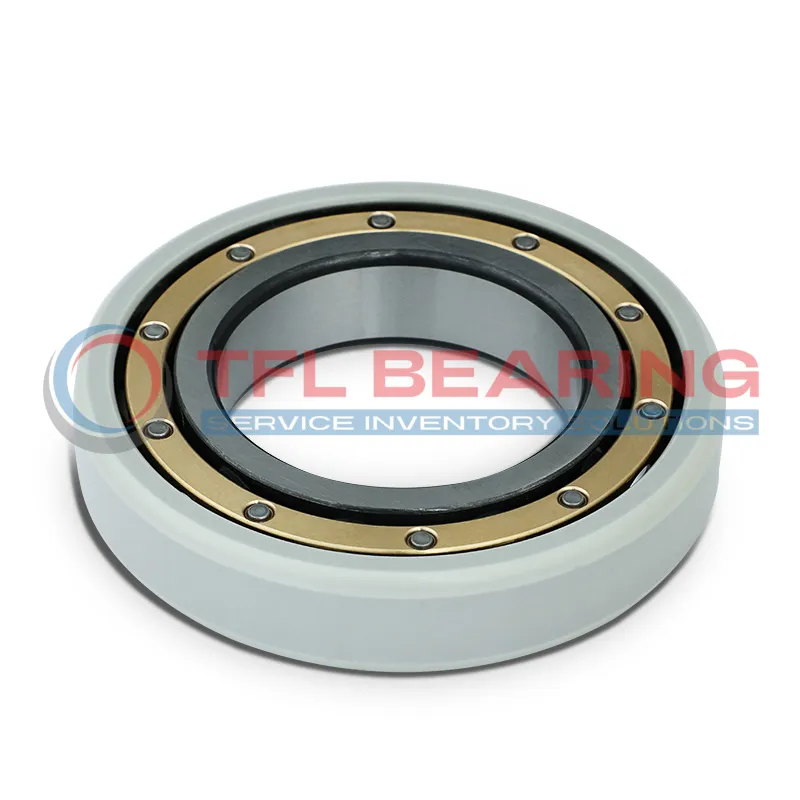

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ222-E-XL-M1-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ222-E-XL-M1-F1-J20AA-C4

The FAG NJ222-E-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 110mm bore and 200mm outer diameter, designed to handle high loads. Its ceramic-coated outer ring provides electrical insulation, preventing damage from stray currents.

This bearing supports dynamic loads up to 345 kN and static loads up to 345 kN, making it suitable for heavy-duty applications. It operates smoothly at speeds up to 3250 RPM, even in demanding conditions.

The brass cage ensures durability and reduces friction, while the C4 radial clearance allows for thermal expansion. It’s compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Ideal for electric motors, generators, or industrial machinery where electrical insulation is needed. The coating resists voltages up to 1000V, offering reliable protection in damp or dry environments.

Weighing 5.4 kg, it’s robust yet manageable for its size. The 200 um insulating layer and high electrical resistance (50MΩ dry, 10MΩ damp) make it a practical choice for preventing electrical wear.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NJ222-E-XL-M1-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 110.0 mm
  • Outside Diameter 200.0 mm
  • Width 38.0 mm
  • Net Weight 5.4 kg
  • Basic Dynamic Load Rating 345 kN
  • Basic Static Load Rating 365 kN
  • Reference Speed 3250r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

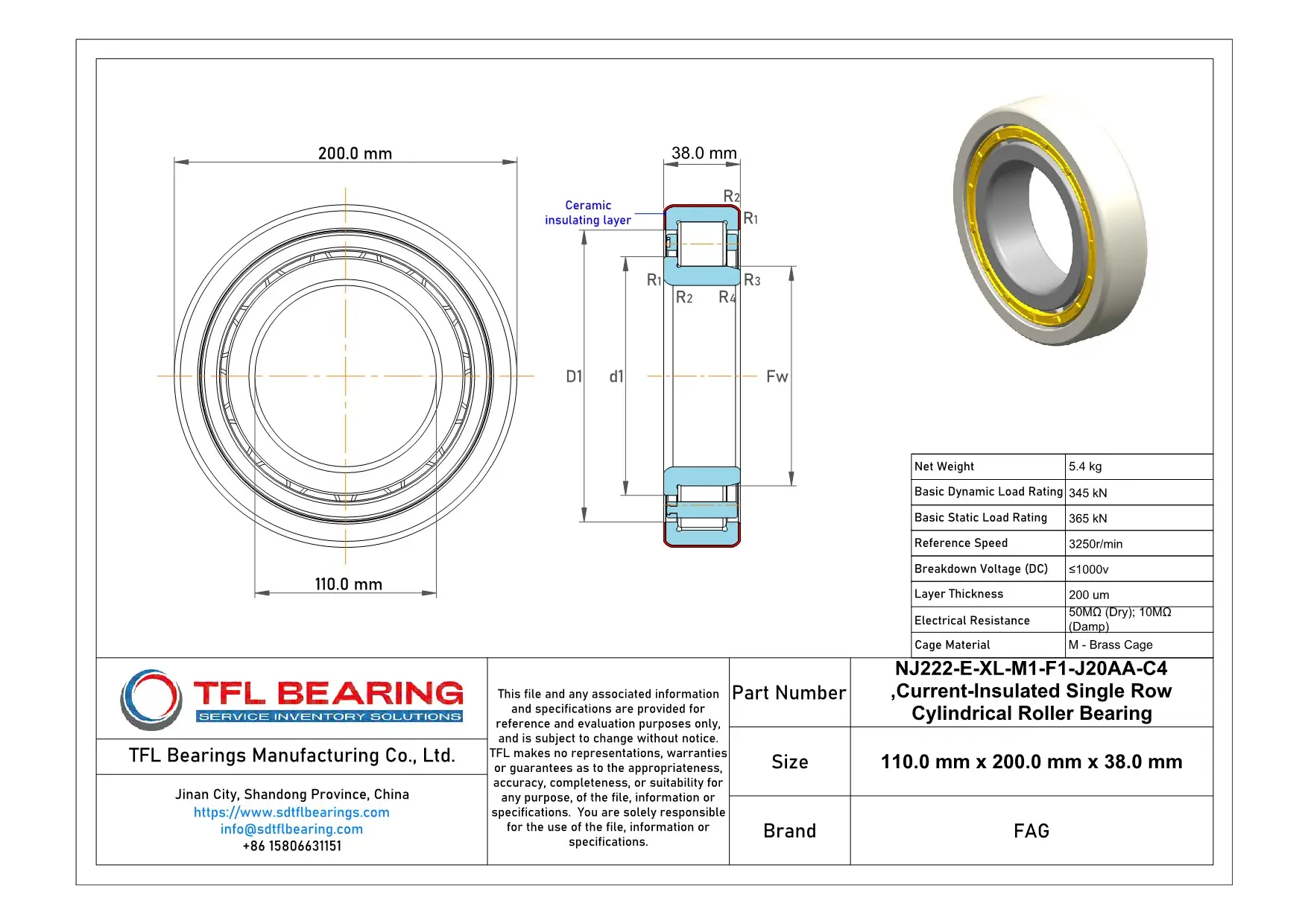

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ222-E-XL-M1-F1-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

How Is NJ222-E-XL-M1-F1-J20AA-C4 Bearing Engineered for Reliability?

NJ222-E-XL-M1-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically charged environments.

The brass cage ensures smooth operation and maintains roller alignment under heavy loads.
With a basic dynamic load rating of 345 kN, it handles demanding applications with ease.

NJ222-E-XL-M1-F1-J20AA-C4 Bearing operates efficiently at speeds up to 3250r/min.
Its C4 radial internal clearance allows for thermal expansion in high-temperature conditions.

The coating offers high electrical resistance, even in damp environments.
This makes NJ222-E-XL-M1-F1-J20AA-C4 Bearing suitable for use in motors and generators.

Application

Industrial Uses of NJ222-E-XL-M1-F1-J20AA-C4 Bearing
NJ222-E-XL-M1-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NJ222-E-XL-M1-F1-J20AA-C4 Bearing a Preferred Choice?
In wind turbines, NJ222-E-XL-M1-F1-J20AA-C4 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. The C4 clearance allows for thermal expansion in demanding environments.

Perfect Fit for Automation: NJ222-E-XL-M1-F1-J20AA-C4 Bearing
NJ222-E-XL-M1-F1-J20AA-C4 Bearing works well in robotic arms, where precision and electrical insulation are key. Its robust design ensures long service life in continuous operation.

Medical vs Industrial: Where NJ222-E-XL-M1-F1-J20AA-C4 Bearing Excels
While suitable for industrial gearboxes, NJ222-E-XL-M1-F1-J20AA-C4 Bearing also fits MRI machines due to its non-magnetic properties. The dry electrical resistance of 50MΩ makes it reliable in sensitive applications.
