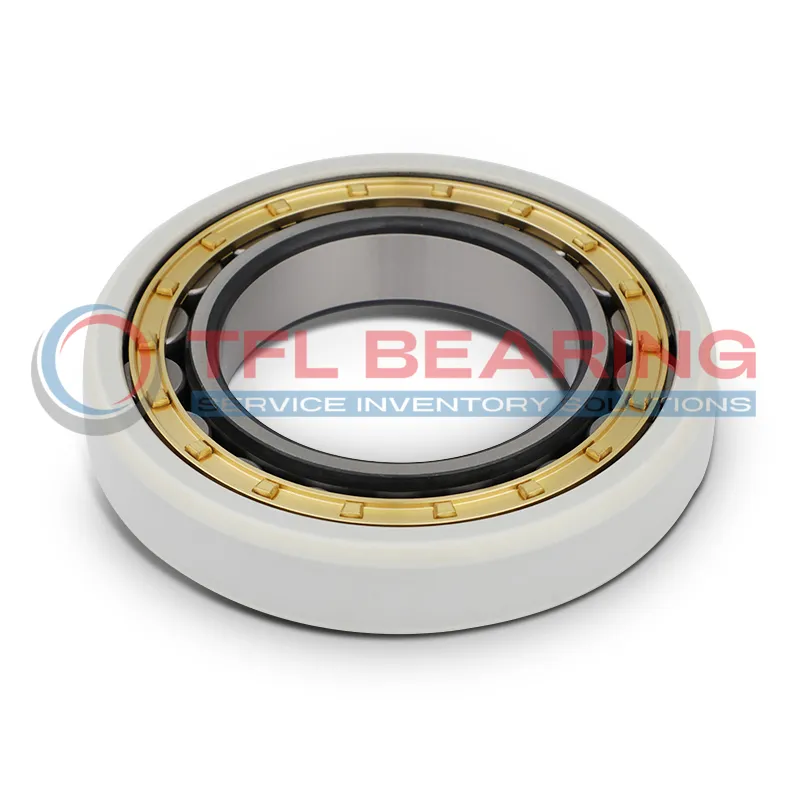

FAG Current-Insulated Single Row Cylindrical Roller Bearing N214-E-XL-M1-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing N214-E-XL-M1-F1-J20AA-C4

The FAG N214-E-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 70mm bore and 125mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 1000V DC.

With a dynamic load rating of 140 kN and a static load rating of 137 kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 7800 RPM.

The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. The coating maintains high electrical resistance, even in damp conditions.

Ideal for electric motors or generators where current leakage is a concern, this bearing is RoHS and REACH compliant. Weighing 1.33kg, it balances durability with practical handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model N214-E-XL-M1-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 70.0 mm
  • Outside Diameter 125.0 mm
  • Width 24.0 mm
  • Net Weight 1.33 kg
  • Basic Dynamic Load Rating 140 kN
  • Basic Static Load Rating 137 kN
  • Reference Speed 7800r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

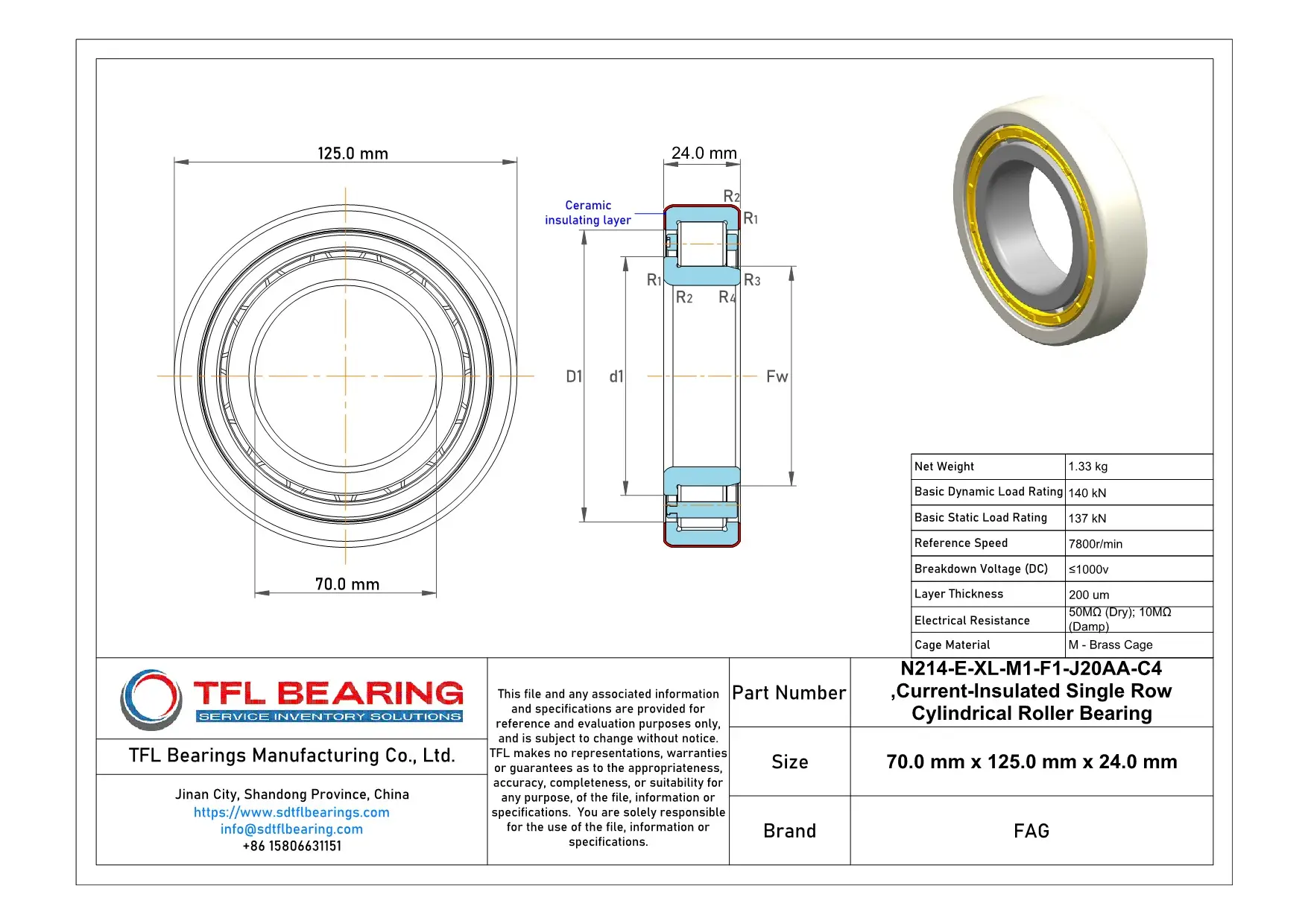

FAG Current-Insulated Single Row Cylindrical Roller Bearing N214-E-XL-M1-F1-J20AA-C4 dimension drawing
