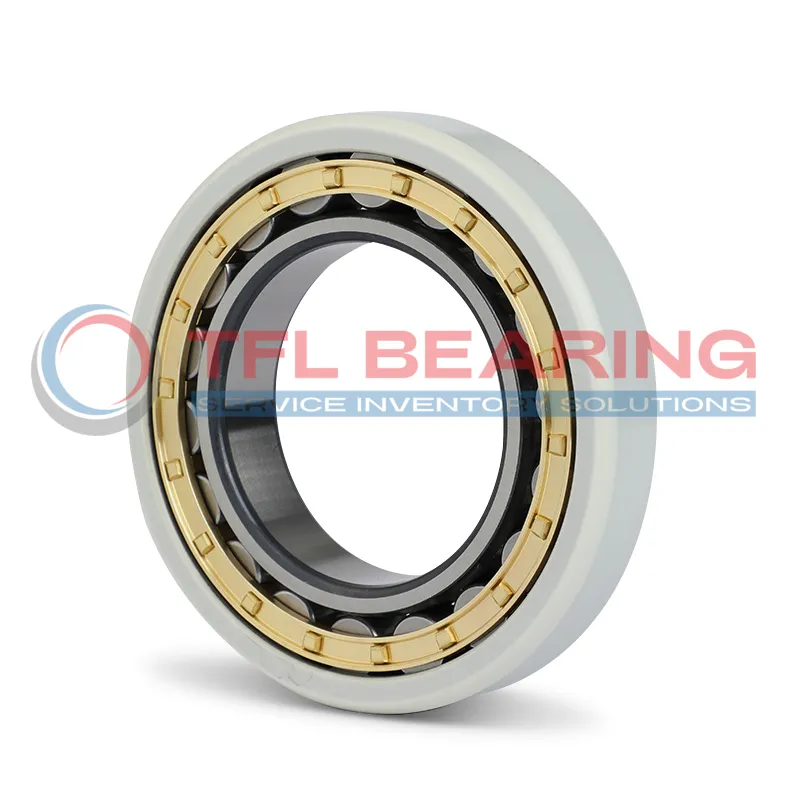

Electrically Insulated Single Row Cylindrical Roller Bearings NU 210 ECM/C3HVA3091

Electrically Insulated Single Row Cylindrical Roller Bearings NU 210 ECM/C3HVA3091

The NU 210 ECM/C3HVA3091 is an electrically insulated cylindrical roller bearing, measuring 50mm in bore, 90mm outside, and 20mm wide. It features a special coating that prevents electrical current from passing through, protecting machinery from damage.

With a dynamic load rating of 73.5 kN, it handles heavy radial loads comfortably while maintaining smooth operation at speeds up to 8500 RPM. The machined brass cage provides reliable guidance for the rollers during rotation.

Its insulation coating offers breakdown voltage protection from 1000 to 3000 VDC, making it resistant to electrical arcing. The C3 internal clearance allows for thermal expansion in warmer operating conditions.

This bearing suits electric motors, generators, and other applications where electrical currents could cause damage. It meets RoHS and REACH standards, weighing just over half a kilogram for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 210 ECM/C3HVA3091
  • Product Category Electrically Insulated Single Row Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating
  • Coating Suffix VA3091
  • Manufacturers TFL
  • Bore Diameter 50.0 mm
  • Outside Diameter 90.0 mm
  • Width 20.0 mm
  • Net Weight 0.551 kg
  • Basic Dynamic Load Rating 73.5 kN
  • Basic Static Load Rating 69.5 kN
  • Reference Speed 8500.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Machined brass
  • Radial Internal Clearance C3H
  • ROHS Compliant
  • REACH Compliant
Electrically Insulated Single Row Cylindrical Roller Bearings NU 210 ECM/C3HVA3091 dimension drawing
Download DWG Download PDF

Features

How Is NU 210 ECM/C3HVA3091 Bearing Engineered for Reliability?

NU 210 ECM/C3HVA3091 Bearing features an electrical insulation coating that prevents current passage, protecting against damage from electrical currents.
This design ensures reliable operation in electrically active environments, with a breakdown voltage rating from 1000 to 3000 VDC.
The machined brass cage maintains proper roller alignment, reducing friction and wear during operation.
With a basic dynamic load rating of 73.5 kN, it handles substantial loads while maintaining consistent performance.

Application

How Does NU 210 ECM/C3HVA3091 Bearing Improve Performance?
NU 210 ECM/C3HVA3091 Bearing works well in industrial machinery like conveyor systems, where its electrical insulation prevents damage from stray currents.
The cylindrical roller design handles heavy radial loads while maintaining smooth operation in demanding environments.

In automotive electric motors, NU 210 ECM/C3HVA3091 Bearing supports reliable performance by blocking electrical arcing that could cause premature failure.
Its brass cage and C3 clearance help accommodate thermal expansion during continuous operation.

For medical imaging equipment, NU 210 ECM/C3HVA3091 Bearing’s insulation coating ensures consistent operation in sensitive diagnostic machines.
The high breakdown voltage protects against electrical interference in critical healthcare applications.

Within automation systems, NU 210 ECM/C3HVA3091 Bearing enables precise movement in robotic arms while preventing electrical damage.
The bearing’s construction allows it to maintain stability across varying operational temperatures.

In consumer appliances like washing machines, NU 210 ECM/C3HVA3091 Bearing provides durable support for rotating components.
The electrical insulation feature helps extend service life in household devices prone to voltage fluctuations.
