Electrically Insulated Single Row Cylindrical Roller Bearings NU 1012 ECP/C3VL0241

Electrically Insulated Single Row Cylindrical Roller Bearings NU 1012 ECP/C3VL0241

This electrically insulated cylindrical roller bearing measures 60mm by 95mm by 18mm, featuring a protective coating on its outer ring.
It handles dynamic loads up to 190 kN and operates smoothly at speeds reaching 5300 RPM.
The nylon cage reduces friction while the C3 internal clearance accommodates thermal expansion.
With electrical resistance of at least 50MΩ, it prevents current damage in motors or generators.
Ideal for industrial equipment where electrical insulation is crucial, this 0.48kg unit complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 1012 ECP/C3VL0241
  • Product Category Electrically Insulated Single Row Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers TFL
  • Bore Diameter 60 mm
  • Outside Diameter 95 mm
  • Width 18 mm
  • Net Weight 0.48 kg
  • Basic Dynamic Load Rating 190.0 kN
  • Basic Static Load Rating 200.0 kN
  • Reference Speed 5300.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Nylon
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

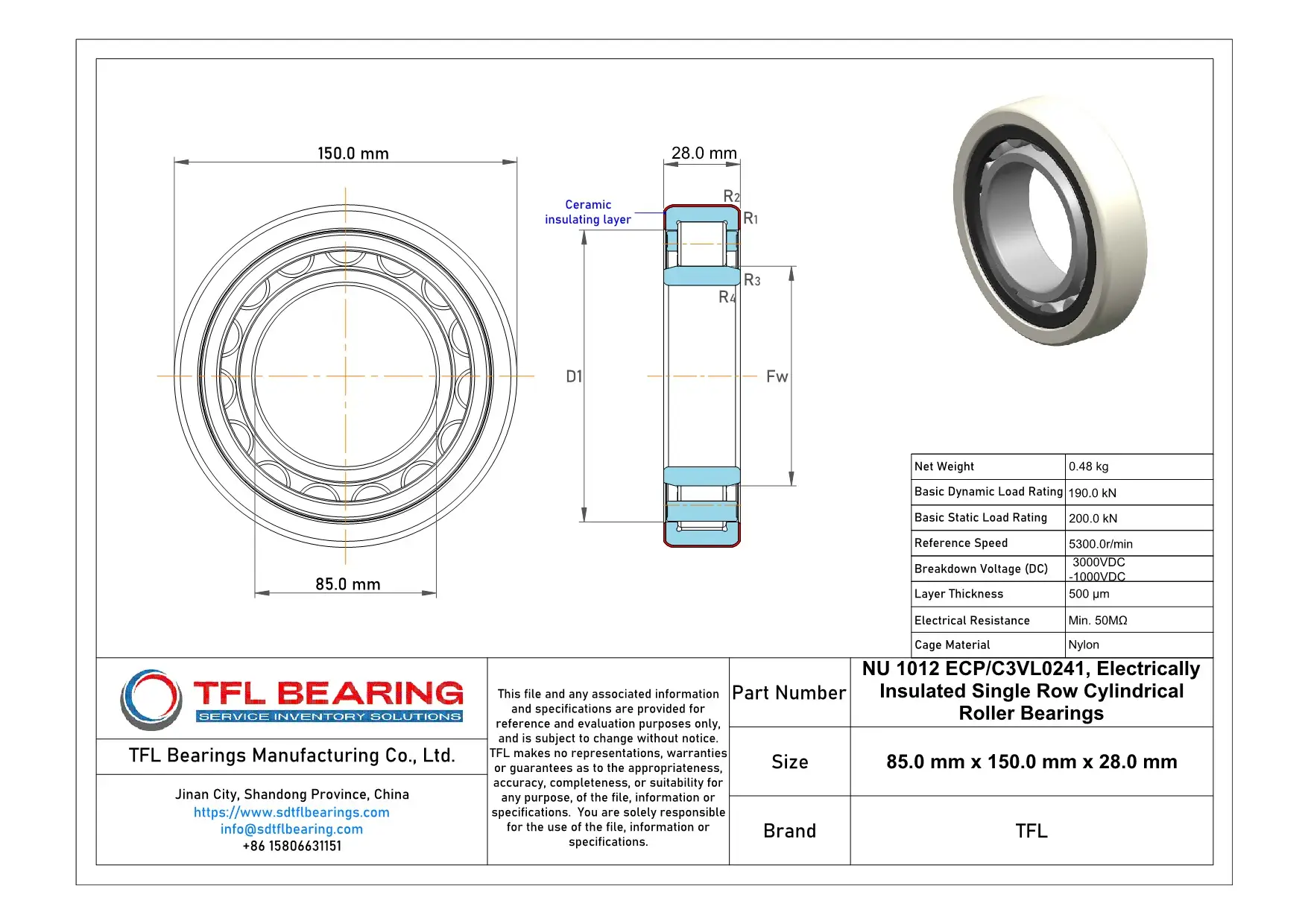

Electrically Insulated Single Row Cylindrical Roller Bearings NU 1012 ECP/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is NU 1012 ECP/C3VL0241 Bearing Engineered for Reliability?

NU 1012 ECP/C3VL0241 Bearing features an insulation coating on its outer ring, protecting against electrical damage from currents.
This coating provides a breakdown voltage of 1000-3000 VDC, ensuring safe operation in electrical environments.
The nylon cage material helps maintain smooth roller movement, reducing friction and wear.
With a basic dynamic load rating of 190.0 kN, it handles heavy loads reliably over long periods.

Application

How Does NU 1012 ECP/C3VL0241 Bearing Improve Performance?
NU 1012 ECP/C3VL0241 Bearing works well in industrial machinery where electrical currents could cause damage, such as electric motors and generators. Its insulation coating prevents electrical arcing, extending equipment life in demanding settings.
In automotive electric systems, NU 1012 ECP/C3VL0241 Bearing handles high speeds in components like alternators and traction motors. The C3 clearance accommodates thermal expansion during continuous operation.
For automation equipment, NU 1012 ECP/C3LV0241 Bearing’s nylon cage reduces friction in robotic arms and conveyor drives. This helps maintain precision while protecting against electrical damage.
The bearing fits various applications from industrial fans to printing machinery, offering reliable performance where electrical insulation matters. Its design supports stable operation across different temperature ranges.
