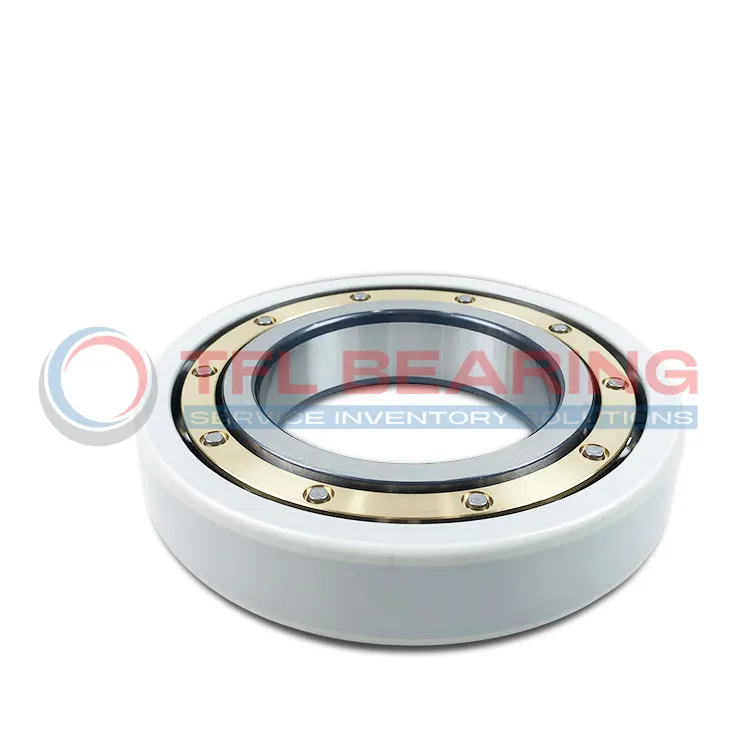

Electrically Insulated Ball Bearings 6326M/C3VL0241

The 6326M/C3VL0241 is an electrically insulated ball bearing with a 130mm bore and 280mm outer diameter, designed to handle high loads and speeds. Its outer ring features a special coating to prevent electrical currents from damaging the bearing.

With a dynamic load rating of 229kN and a static load rating of 216kN, it can support heavy-duty applications while spinning smoothly at up to 5000 RPM. The brass cage adds durability and stability.

The insulating coating provides a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, making it ideal for electric motors or generators. Its C3 radial clearance ensures reliable performance under varying temperatures.

Weighing 17.3kg, this robust bearing is RoHS and REACH compliant, suitable for industrial environments where electrical insulation is crucial. Perfect for wind turbines or railway systems.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Model 6326M/C3VL0241
Product Category Electrically Insulated Ball Bearings
Coating Suffix VL0241
Insulating Coating Types Insulation coating on outer ring
Manufacturers TFL
Bore Diameter 130.0 mm
Outside Diameter 280.0 mm
Width 58.0 mm
Net Weight 17.3kg
Basic Dynamic Load Rating 229.0 kN
Basic Static Load Rating 216.0 kN
Reference Speed 5000.0 r/min
Breakdown Voltage (DC) 1000 ~3000 V
Layer Thickness 100~500 µm
Electrical Resistance 50~200 MΩ
Cage Material Brass cage
Radial Internal Clearance C3
ROHS Compliant
REACH Compliant

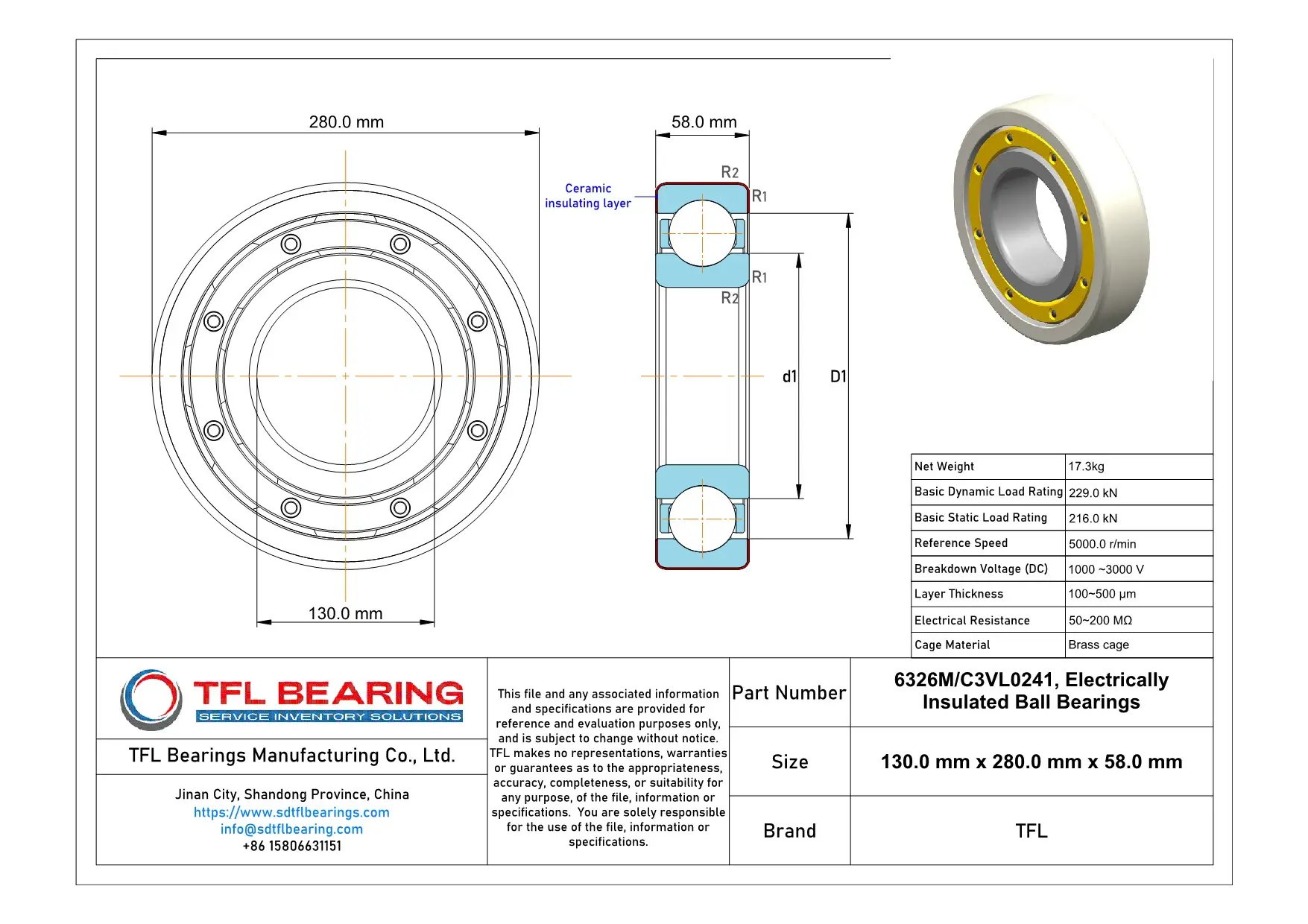

Electrically Insulated Ball Bearings 6326M/C3VL0241 dimension drawing

Download DWG Download PDF

Features

Why Choose 6326M/C3VL0241 Bearing for Precision Tasks?

6326M/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical arcing and ensuring safe operation.
Its breakdown voltage ranges from 1000 to 3000 V, making it suitable for high-voltage environments.

The brass cage enhances durability and maintains ball alignment under heavy loads.
With a dynamic load rating of 229.0 kN, it handles demanding applications with ease.

6326M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion in high-speed operations.
Its reference speed of 5000 r/min ensures efficient performance in various industrial settings.

Application

Industrial Uses of 6326M/C3VL0241 Bearing
6326M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life. The brass cage adds durability, making it suitable for high-speed industrial applications.

Where Is 6326M/C3VL0241 Bearing Used?
In wind turbines, 6326M/C3VL0241 Bearing handles high dynamic loads while its insulation protects against stray currents. The C3 radial clearance ensures reliable performance under varying thermal conditions.

Perfect Fit for Automation: 6326M/C3VL0241 Bearing
This bearing works well in robotic systems, where electrical insulation prevents damage from induced currents. Its balanced design supports smooth operation in precision automation equipment.

Medical vs Industrial: Where 6326M/C3VL0241 Bearing Excels
While not typically used in medical devices, 6326M/C3VL0241 Bearing shines in industrial settings like CNC machines. Its high breakdown voltage makes it ideal for environments with electrical interference.

Essential Roles of 6326M/C3VL0241 Bearing
In railway applications, 6326M/C3VL0241 Bearing reduces electrical corrosion in traction motors. The coating thickness can be adjusted to match specific voltage requirements for different rail systems.
