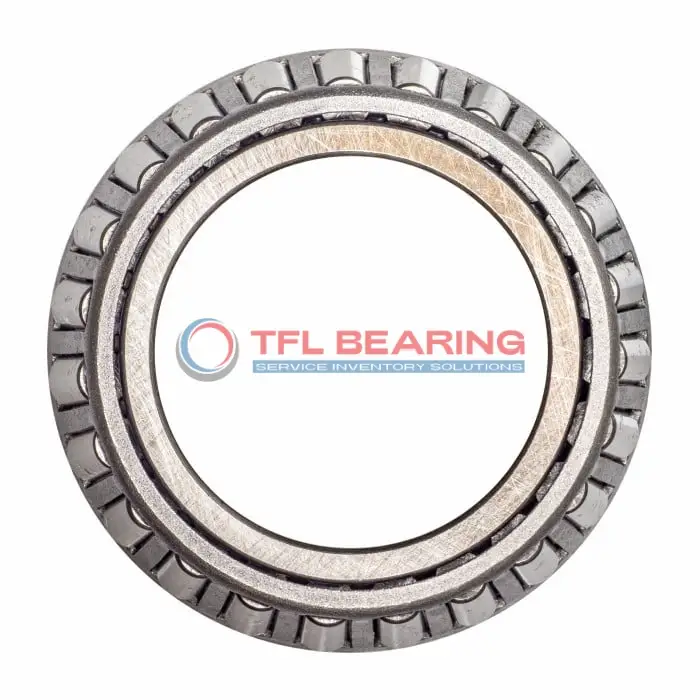

EE134102 Single Cones (Imperial)

EE134102 Single Cones (Imperial)

The EE134102 is a single-row tapered roller bearing with a 10.25-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 153,000 lbf and static loads up to 299,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large equipment where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance can also be adjusted to C3, C4, or C5 as needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE134102
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number EE134102-134143 , EE134102-134145
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 134000
  • Bore Dia 10.25"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.3125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 10.87"
  • Cone Backface Backing Diameter 11.26"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.3"
  • Effective Center Location 0.2"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 153000 lbf
  • Static Radial Load 299000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 39600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 266000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 25400 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 68900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does EE134102 Bearing Handle Combined Loads?

EE134102 Bearing is designed with chrome steel rings, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 153,000 lbf, ensuring reliable performance in demanding applications.
The steel cage keeps the rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of EE134102 Bearing
EE134102 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The open seal type makes it suitable for environments where regular lubrication is possible.

In automotive applications, EE134102 Bearing fits well in large vehicle axles and wheel hubs, providing stability under heavy radial and thrust loads. Its inch sizing ensures compatibility with American-made trucks and industrial vehicles.

For industrial fans and pumps, EE134102 Bearing’s chrome steel construction offers durability in high-speed rotations. The steel cage adds robustness, making it reliable for continuous operation in demanding settings.

Where Is EE134102 Bearing Used?
EE134102 Bearing finds its place in agricultural machinery, particularly in harvesters and tractors, where its tapered rollers manage uneven loads. The standard radial clearance allows for smooth performance even with slight misalignments.

In material handling systems, EE134102 Bearing supports conveyor rollers, ensuring reliable movement under heavy loads. Its ABEC-1 rating provides sufficient precision for most industrial applications without unnecessary cost.

Built for Heavy-Duty Use: EE134102 Bearing
EE134102 Bearing excels in railway applications, such as freight car axles, where its dynamic load capacity handles constant stress. The temperature range of -30° to 110°C ensures performance in varying climates.

For forestry equipment, EE134102 Bearing’s robust design withstands the harsh conditions of logging machinery. The steel cage and chrome steel rings combine to resist wear from dirt and debris.

Automotive vs Aerospace: Applications of EE134102 Bearing
In automotive settings, EE134102 Bearing is ideal for large trucks and buses, where its load capacity meets heavy-duty demands. The inch measurements align with standard US vehicle components.

For aerospace ground equipment, EE134102 Bearing supports maintenance tools and cargo loaders, though its ABEC-1 rating limits it to non-critical applications. The open design simplifies inspections and lubrication.
