Drawn Cup Needle Roller Bearings SCH913-P

Drawn Cup Needle Roller Bearings SCH913-P

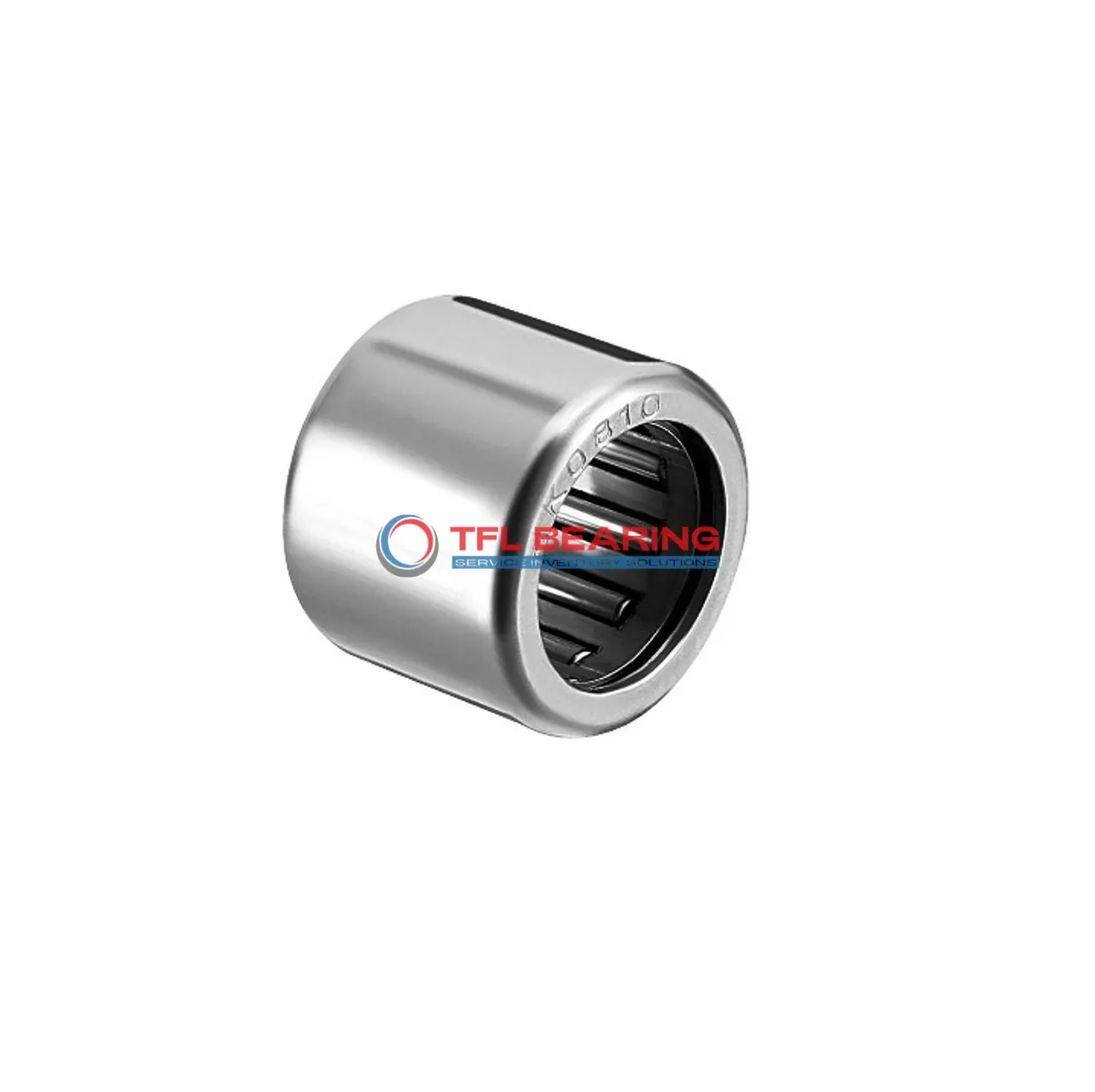

The SCH913-P is a drawn cup needle roller bearing with a 0.5625″ bore and 0.8125″ outer diameter, made from sturdy steel. It handles radial loads up to 3237 lbf and can spin at speeds up to 16800 RPM.
Its single-seal design helps keep dirt out while maintaining smooth operation. The press-fit mounting ensures a secure fit on shafts.
This bearing is ideal for applications like automotive components or small machinery where space is limited. It requires regular lubrication for optimal performance.
Compatible with INA bearings, it’s a practical choice for replacements. Works well in temperatures from -20°C to 110°C and meets RoHS standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH913-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.8125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3237 lbf
  • Static Radial Load 4271 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16800 rpm
  • Weight 19 g
Drawn Cup Needle Roller Bearings SCH913-P dimension drawing
Download DWG Download PDF

Features

Performance Features of SCH913-P Bearing
SCH913-P Bearing is designed with a single seal, offering protection against contaminants while maintaining smooth operation.
Its steel construction ensures durability, handling dynamic radial loads up to 3237 lbf with ease.
The press-fit shaft mount simplifies installation, saving time and effort in assembly.
With a maximum speed of 16,800 rpm, SCH913-P Bearing delivers reliable performance in high-speed applications.
Its compact design, with a width of 0.8125″, makes it suitable for space-constrained environments.
The steel cage and rollers provide consistent performance, even under heavy radial loads.

Application

Industrial Uses of SCH913-P Bearing
SCH913-P Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its single seal design helps keep contaminants out while maintaining smooth operation.
Where Is SCH913-P Bearing Used?
In automotive applications, SCH913-P Bearing fits well in gearboxes and steering systems, thanks to its press-fit mounting and high-speed capability. The steel construction ensures durability even under constant stress.
Perfect Fit for Automation: SCH913-P Bearing
For automated systems, SCH913-P Bearing works reliably in robotic arms and assembly lines, where precision and low maintenance are key. Its inch sizing makes it compatible with many North American machinery standards.
Medical vs Industrial: Where SCH913-P Bearing Excels
In medical devices, SCH913-P Bearing’s steel rollers provide smooth motion for equipment like dental drills. Industrial applications benefit from its high dynamic load rating in heavy-duty machinery.
Essential Roles of SCH913-P Bearing
SCH913-P Bearing is a go-to choice for household appliances like washing machines, where its compact size and radial load handling shine. The required lubrication ensures long-lasting performance with minimal upkeep.
