Drawn Cup Needle Roller Bearings SCH1416

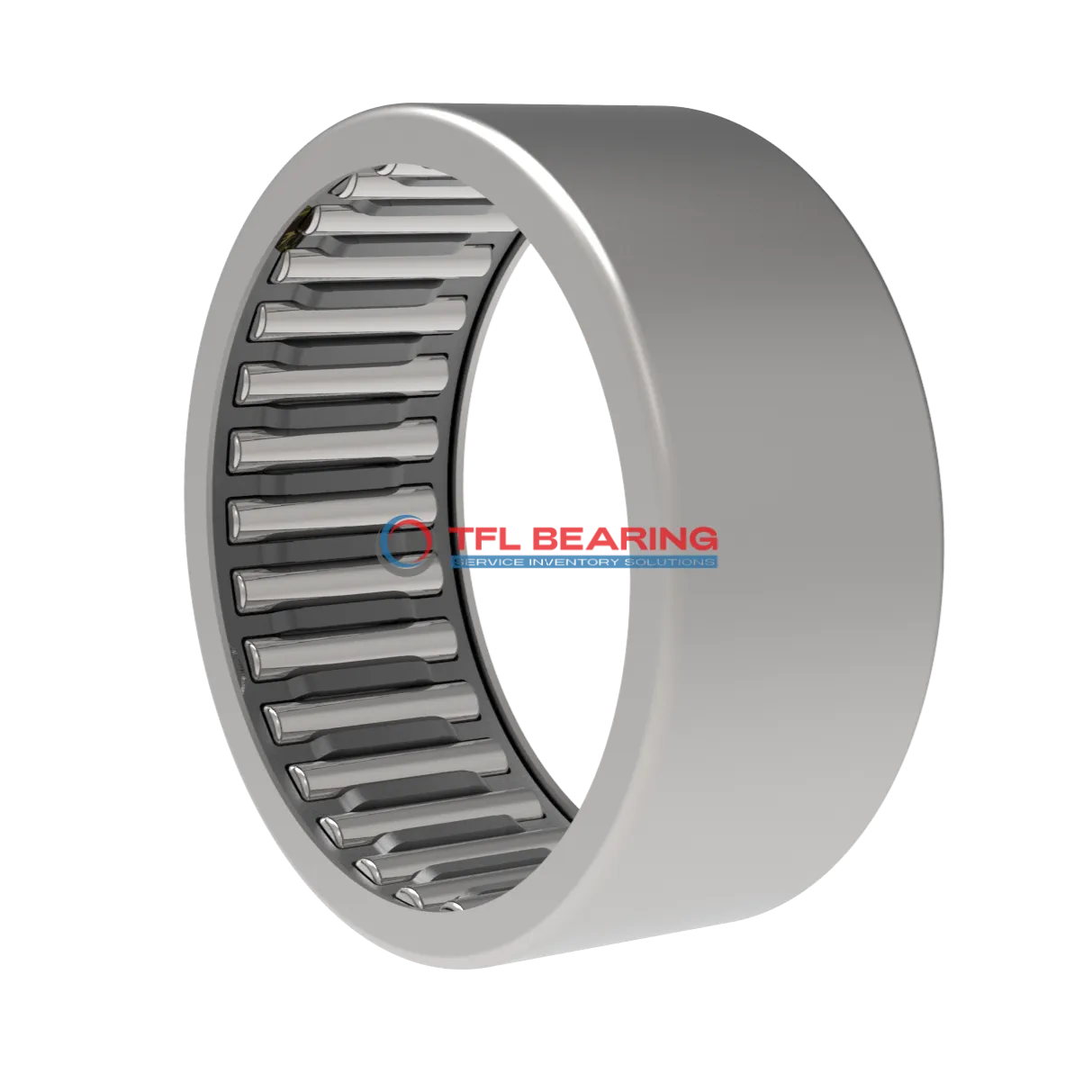

Drawn Cup Needle Roller Bearings SCH1416

The SCH1416 is a drawn cup needle roller bearing with a 0.875″ bore and 1.1875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 5733 lbf and spins smoothly at speeds up to 11100 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability under heavy use. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various industrial applications.
Ideal for machinery with radial load demands, such as gearboxes or automotive components. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1416
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.1875"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 5733 lbf
  • Static Radial Load 8655 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11100 rpm
  • Weight 43 g
Drawn Cup Needle Roller Bearings SCH1416 dimension drawing
Download DWG Download PDF

Features

How Does SCH1416 Bearing Handle High-Speed Applications?
SCH1416 Bearing is crafted with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5733 lbf, ensuring reliable performance under stress.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 11,100 rpm, it delivers efficiency in high-speed operations.
SCH1416 Bearing operates within a temperature range of -20 to 110°C, adapting to various conditions.
Regular lubrication ensures smooth performance and extends its service life.

Application

Industrial Uses of SCH1416 Bearing
SCH1416 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The press-fit mounting ensures a secure installation, reducing maintenance needs.
What Makes SCH1416 Bearing a Preferred Choice?
In automotive applications, SCH1416 Bearing excels in transmissions and steering systems, thanks to its steel construction and high-speed capability. Its inch sizing makes it a convenient option for older or custom-built vehicles.
Perfect Fit for Automation: SCH1416 Bearing
For automated machinery like packaging lines, SCH1416 Bearing offers reliable performance with minimal lubrication requirements. The open-end design allows for easy inspection and re-greasing during routine checks.
Medical vs Industrial: Where SCH1416 Bearing Excels
While not typically used in medical devices, SCH1416 Bearing shines in industrial settings like conveyor systems, where durability and load handling are key. Its steel components provide long-lasting performance even in demanding conditions.
Where Is SCH1416 Bearing Used?
In household appliances like washing machines, SCH1416 Bearing supports rotating parts quietly and efficiently. The inch measurements make it compatible with a variety of replacement and repair scenarios.
