Drawn Cup Needle Roller Bearings SCH1310

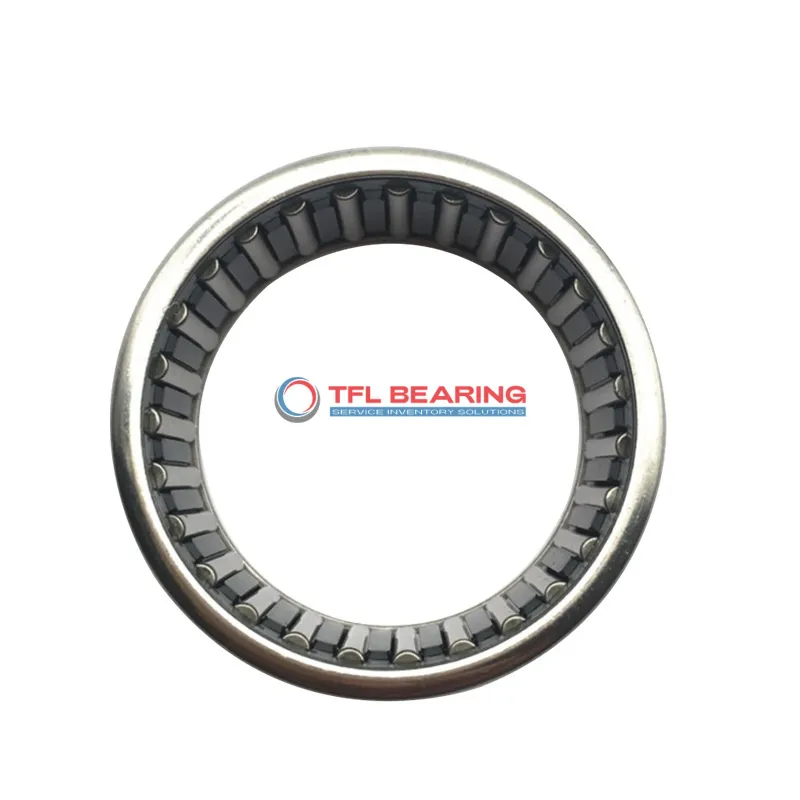

Drawn Cup Needle Roller Bearings SCH1310

The SCH1310 is a drawn cup needle roller bearing with a 0.8125″ bore and 1.125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3619 lbf and spins smoothly at speeds up to 11900 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability under heavy use. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical solution for replacements. Ideal for applications like automotive components or machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1310
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.8125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.125"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3619 lbf
  • Static Radial Load 4743 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11900 rpm
  • Weight 25 g
Drawn Cup Needle Roller Bearings SCH1310 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCH1310 Bearing
SCH1310 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity reaches 3619 lbf, making it suitable for high-demand applications.
The press-fit shaft mount ensures secure installation, reducing the risk of slippage during operation.
With a maximum speed of 11,900 rpm, it delivers reliable performance in various conditions.
SCH1310 Bearing operates efficiently within a temperature range of -20 to 110 °C.
Regular lubrication enhances its longevity and maintains smooth functionality.

Application

Common Applications of SCH1310 Bearing
SCH1310 Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The press-fit mounting ensures a secure installation in high-vibration environments.
In automotive systems, SCH1310 Bearing is commonly found in transmission assemblies and steering mechanisms. Its steel construction provides durability under heavy loads, while the open design allows for easy lubrication.
For automation equipment, SCH1310 Bearing supports smooth operation in robotic arms and conveyor systems. The needle roller design offers efficient load distribution, reducing wear over time.
In household appliances like washing machines, SCH1310 Bearing ensures quiet and reliable performance. Its inch sizing makes it compatible with a variety of North American and European models.
Medical devices such as dental drills benefit from SCH1310 Bearing’s precision and high-speed capabilities. The steel cage enhances stability, even during prolonged use.
