Drawn Cup Needle Roller Bearings SCH108

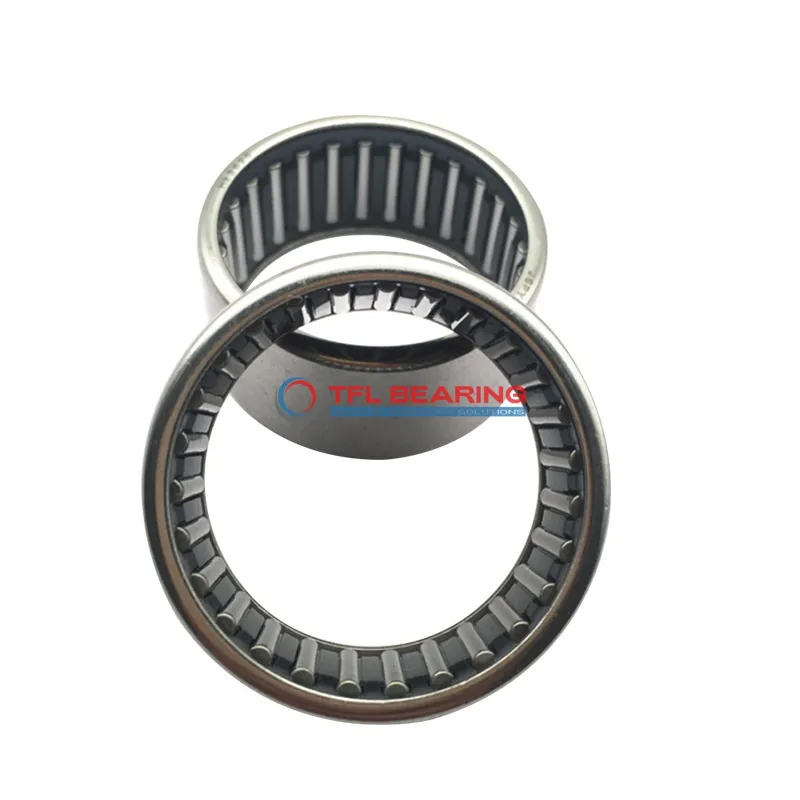

Drawn Cup Needle Roller Bearings SCH108

The SCH108 is a drawn cup needle roller bearing with a 0.625″ bore and 0.875″ outer diameter, crafted from sturdy steel. It handles radial loads up to 2248 lbf and spins efficiently at speeds up to 15300 RPM.
Its open-end design allows for easy lubrication, while the press-fit mounting ensures a secure installation. The bearing performs reliably in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like automotive components or small machinery where space is limited.
Weighing lightly, it’s a compact yet durable solution for radial load requirements. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH108
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2248 lbf
  • Static Radial Load 2743 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 15300 rpm
  • Weight 13 g
Drawn Cup Needle Roller Bearings SCH108 dimension drawing
Download DWG Download PDF

Features

Why Choose SCH108 Bearing for Precision Tasks?
SCH108 Bearing is crafted with steel rings and needles, offering excellent radial load capacity up to 2248 lbf.
Its press-fit design ensures secure mounting, making it ideal for precision applications.
The open-end construction allows for easy lubrication, enhancing performance and longevity.
With a maximum speed of 15,300 rpm, it delivers reliable operation in high-speed environments.
SCH108 Bearing works efficiently within a temperature range of -20 to 110 °C.
Its durable steel construction ensures consistent performance even under demanding conditions.

Application

Common Applications of SCH108 Bearing
SCH108 Bearing works well in compact spaces, like small gearboxes or electric motors, where its needle roller design handles radial loads efficiently. The press-fit mounting ensures a secure fit in high-speed applications.
In automotive systems, SCH108 Bearing is often used in transmission components or steering mechanisms, providing reliable performance under continuous motion. Its steel construction offers durability in demanding conditions.
For industrial machinery, SCH108 Bearing suits conveyor systems or printing equipment, where its open design allows for easy lubrication. The inch sizing makes it compatible with many North American machine standards.
In consumer electronics, SCH108 Bearing can be found in power tools or small appliances, where its compact size and smooth operation are beneficial. The steel cage ensures long-lasting performance even with frequent use.
