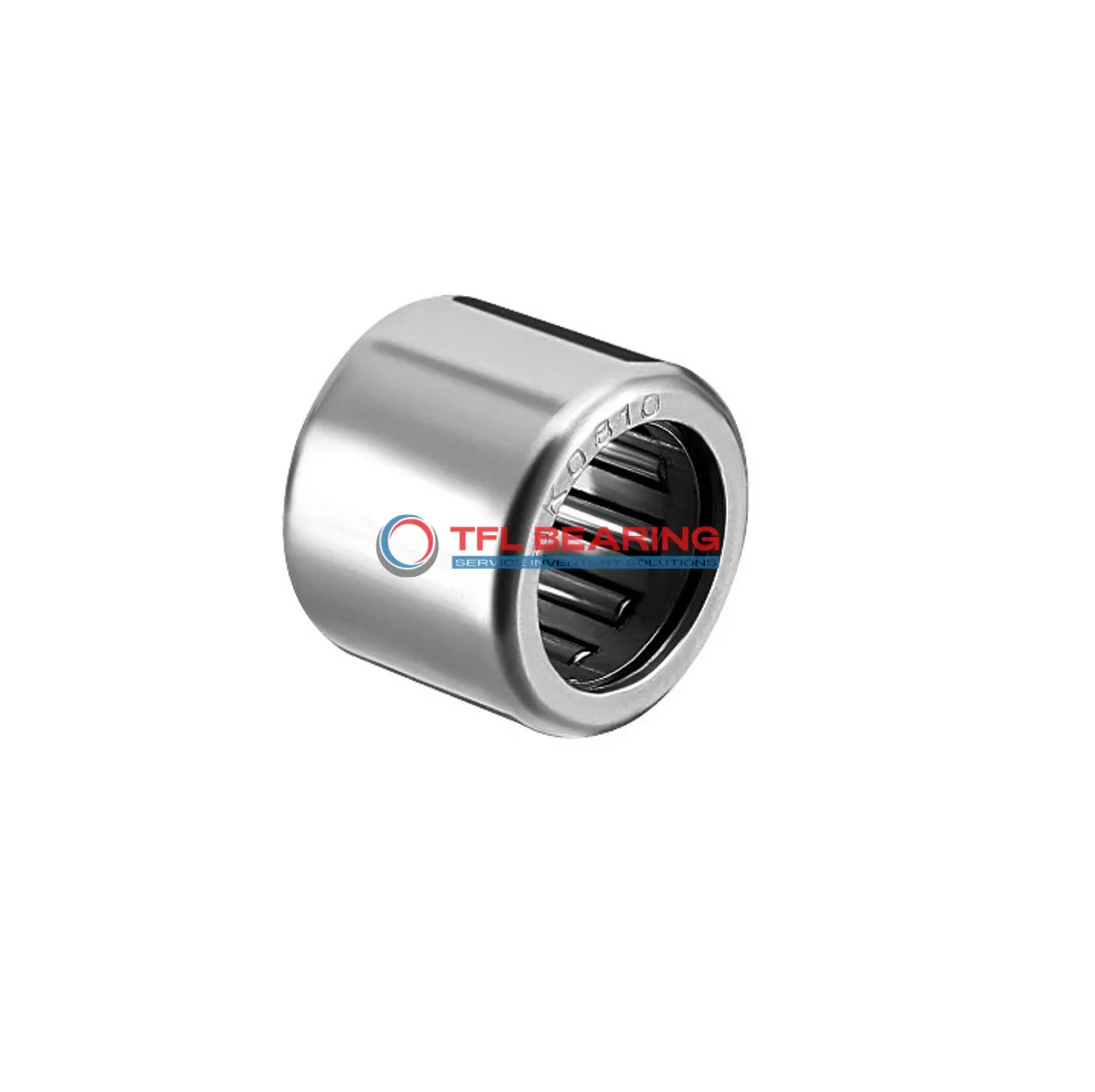

Drawn Cup Needle Roller Bearings SCE96

Drawn Cup Needle Roller Bearings SCE96

The SCE96 is a drawn cup needle roller bearing with a 0.5625″ bore and 0.75″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1169 lbf and can spin at speeds up to 17600 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel construction ensures durability, even in demanding conditions.
This bearing requires regular lubrication to maintain smooth operation. It works well in temperatures ranging from -20°C to 110°C.
Ideal for applications like small gearboxes or automotive components where space is limited. Compliant with RoHS standards for safe use.
The SCE96 is interchangeable with INA bearings, offering a practical replacement option. Its compact size (0.375″ width) makes it a versatile choice for various machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE96
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.75"
  • Outer Dia Tolerance Not Rated
  • Width 0.375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1169 lbf
  • Static Radial Load 1439 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 17600 rpm
  • Weight 6 g
Drawn Cup Needle Roller Bearings SCE96 dimension drawing
Download DWG Download PDF

Features

How Does SCE96 Bearing Handle High-Speed Applications?
SCE96 Bearing is crafted with steel rings and needles, offering strong radial load support up to 1169 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
With a maximum speed of 17,600 rpm, SCE96 Bearing maintains stability and efficiency.
The open-end design allows for easy lubrication, ensuring smooth performance in various conditions.
SCE96 Bearing operates within a temperature range of -20 to 110°C, suitable for diverse environments.
Its steel construction provides durability, making it a reliable choice for demanding applications.

Application

Industrial Uses of SCE96 Bearing
SCE96 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling radial loads efficiently. The steel construction ensures durability even in demanding environments.
In automotive applications, SCE96 Bearing fits well in transmission systems, providing smooth operation under high-speed conditions. Its press-fit mounting makes installation straightforward for mechanics.
For automation equipment, SCE96 Bearing works reliably in robotic arms, thanks to its high-speed capability and low maintenance needs. The open design allows for easy lubrication, extending service life.
Where Is SCE96 Bearing Used?
You’ll find SCE96 Bearing in small electric motors, where its needle roller design reduces friction and improves efficiency. The inch sizing makes it compatible with many North American machinery standards.
In household appliances like power tools, SCE96 Bearing offers quiet and consistent performance. Its steel cage ensures stability during frequent use, making it a dependable choice.
Built for Heavy-Duty Use: SCE96 Bearing
SCE96 Bearing handles radial loads effectively in construction equipment, such as compactors and drills. The high rpm rating ensures it can keep up with intensive workloads.
For agricultural machinery, SCE96 Bearing provides reliable performance in harvesters and tillers. Its press-fit design prevents slippage, even under vibration and heavy loads.
Automotive vs Aerospace: Applications of SCE96 Bearing
In automotive systems, SCE96 Bearing is ideal for steering columns, offering precise movement and durability. The steel materials resist wear over time.
For aerospace applications, SCE96 Bearing’s lightweight design and high-speed capability make it suitable for auxiliary equipment. However, it’s more commonly seen in ground-based machinery due to its inch measurements.
