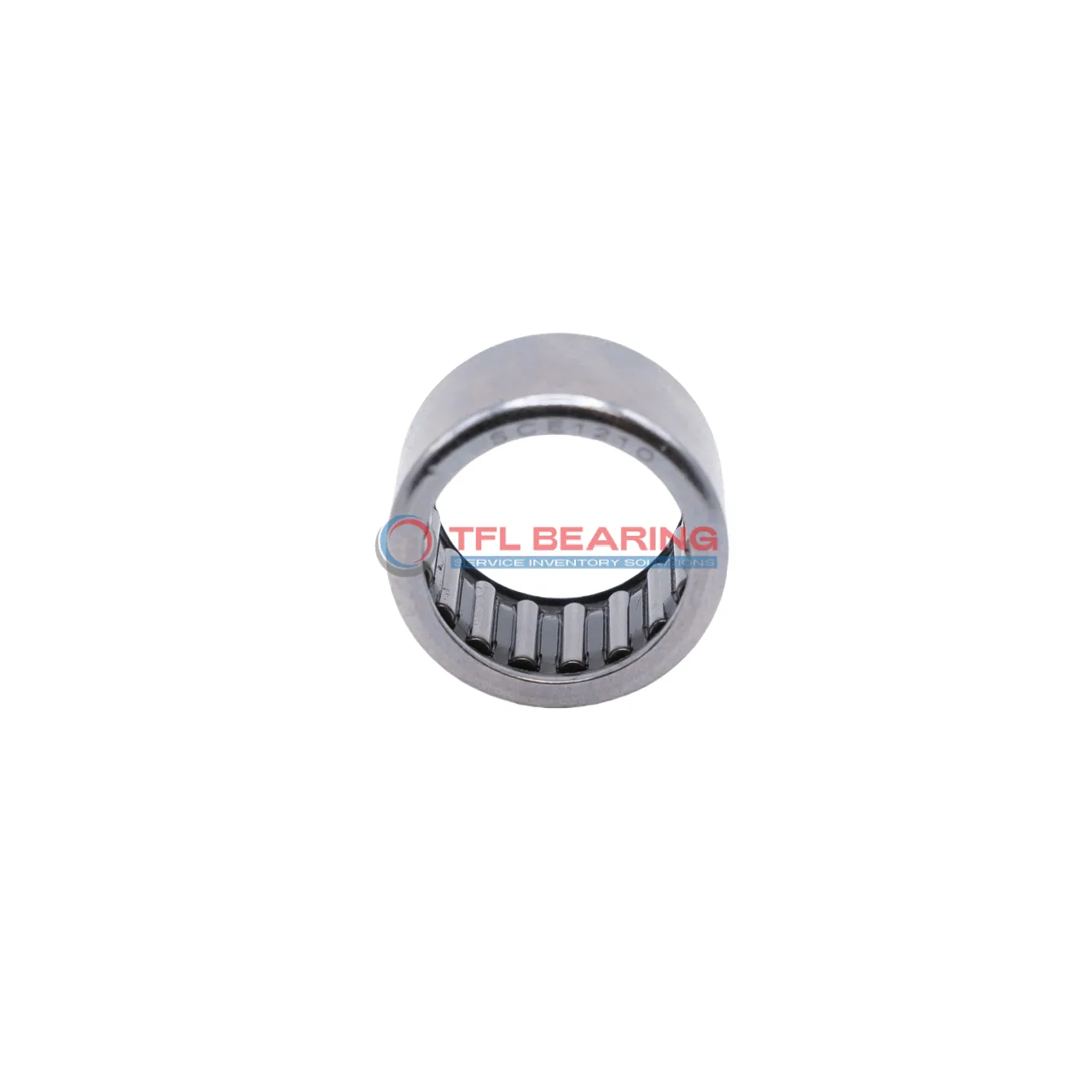

Drawn Cup Needle Roller Bearings SCE86

Drawn Cup Needle Roller Bearings SCE86

The SCE86 is a compact drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1045 lbf and spins efficiently at speeds up to 19500 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability under stress. Regular lubrication is needed to maintain smooth operation.
This bearing suits temperatures from -20°C to 110°C, making it versatile for various environments. It’s interchangeable with INA models, offering flexibility for replacements.
Ideal for applications like small gearboxes or machinery where space is limited but radial load support is essential. RoHS compliant for safe use in industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE86
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1045 lbf
  • Static Radial Load 1214 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 5 g
Drawn Cup Needle Roller Bearings SCE86 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE86 Bearing
SCE86 Bearing is crafted with steel rings and needles, offering strong radial load support.
Its dynamic radial load capacity reaches 1045 lbf, making it suitable for high-demand applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 19,500 rpm, it delivers reliable performance in various conditions.
SCE86 Bearing operates efficiently within a temperature range of -20 to 110°C.
Its steel construction ensures durability, even in challenging environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.
The press-fit mounting design enhances stability during high-speed rotations.

Application

Industrial Uses of SCE86 Bearing
SCE86 Bearing is commonly used in compact machinery where space is limited, such as small gearboxes and power tools. Its needle roller design provides excellent radial load capacity in a slim profile.
Where Is SCE86 Bearing Used?
You’ll often find SCE86 Bearing in automotive applications like steering systems and transmission components. Its press-fit mounting ensures a secure hold even in high-vibration environments.
Built for Heavy-Duty Use: SCE86 Bearing
SCE86 Bearing handles high speeds well, making it suitable for industrial fans and small electric motors. The steel construction offers durability without adding unnecessary weight.
Automotive vs Industrial: Applications of SCE86 Bearing
In cars, SCE86 Bearing works well in clutch assemblies, while in factories, it’s often used in conveyor rollers. The inch sizing makes it a good fit for older machinery still using imperial measurements.
Perfect Fit for Automation: SCE86 Bearing
SCE86 Bearing’s compact size makes it ideal for robotic arms and small automated devices. The open design allows for easy lubrication, extending its service life in continuous operation.
