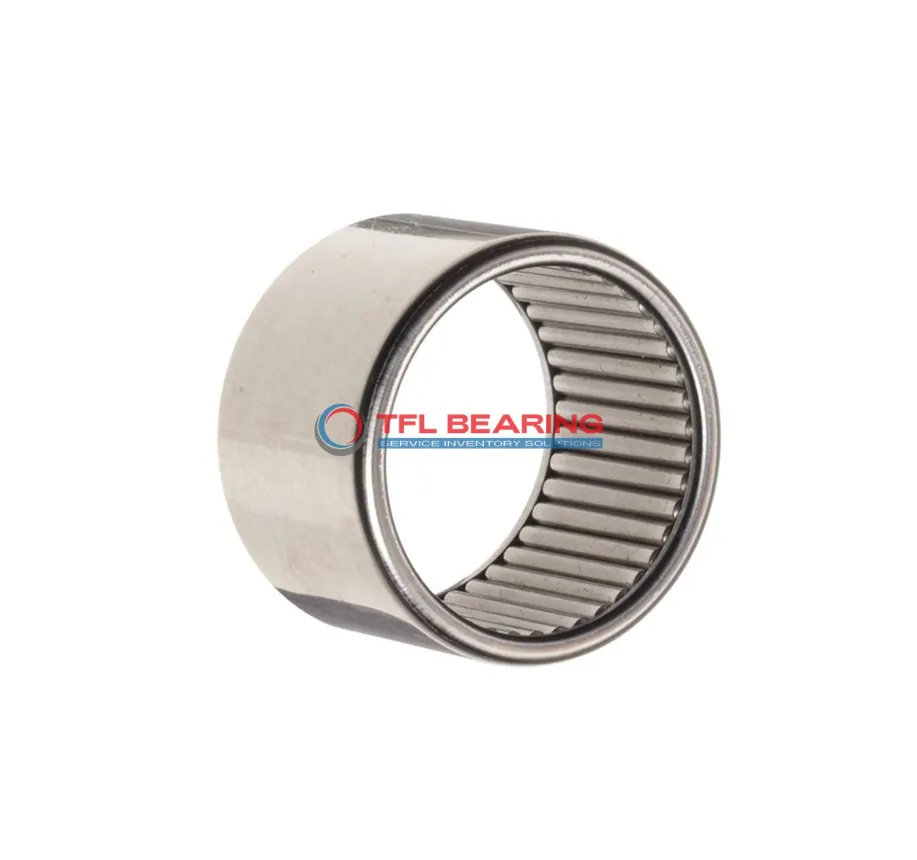

Drawn Cup Needle Roller Bearings SCE228

Drawn Cup Needle Roller Bearings SCE228

The SCE228 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, made from sturdy steel. It handles radial loads up to 3057 lbf and operates smoothly at speeds up to 7500 RPM.
Its open-end design allows for easy press-fit installation, while the steel construction ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive components or industrial machinery where radial loads are common.
It works well in temperatures from -20°C to 110°C and complies with RoHS standards. Compact at just 0.5″ wide, it’s a reliable option for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE228
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3057 lbf
  • Static Radial Load 5328 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7500 rpm
  • Weight 25 g
Drawn Cup Needle Roller Bearings SCE228 dimension drawing
Download DWG Download PDF

Features

How Does SCE228 Bearing Handle Radial Loads?
SCE228 Bearing is built with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3057 lbf, ensuring steady performance in various applications.
The open-end design of SCE228 Bearing allows for easy press-fit installation, saving time and effort.
With a maximum speed of 7500 rpm, it delivers reliable operation under demanding conditions.
SCE228 Bearing operates efficiently within a temperature range of -20 to 110°C, suitable for diverse environments.
Regular lubrication ensures smooth performance and extends the bearing’s service life.

Application

Industrial Uses of SCE228 Bearing
SCE228 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments like conveyor systems.
Where Is SCE228 Bearing Used?
You’ll often find SCE228 Bearing in automotive applications, particularly in transmission systems and steering mechanisms. Its press-fit mounting simplifies installation, while the open design allows for easy lubrication.
Built for Heavy-Duty Use: SCE228 Bearing
SCE228 Bearing excels in agricultural machinery, handling radial loads in equipment like harvesters and tractors. The inch sizing makes it a convenient choice for older machinery still using imperial measurements.
Medical vs Industrial: Where SCE228 Bearing Excels
While SCE228 Bearing isn’t typically used in medical devices, it’s a reliable option for industrial automation, such as robotic arms. Its high-speed capability and steel cage ensure smooth operation in repetitive tasks.
Perfect Fit for Automation: SCE228 Bearing
SCE228 Bearing works well in small electric motors found in household appliances like washing machines. The needle roller design reduces friction, improving efficiency and extending the motor’s lifespan.
