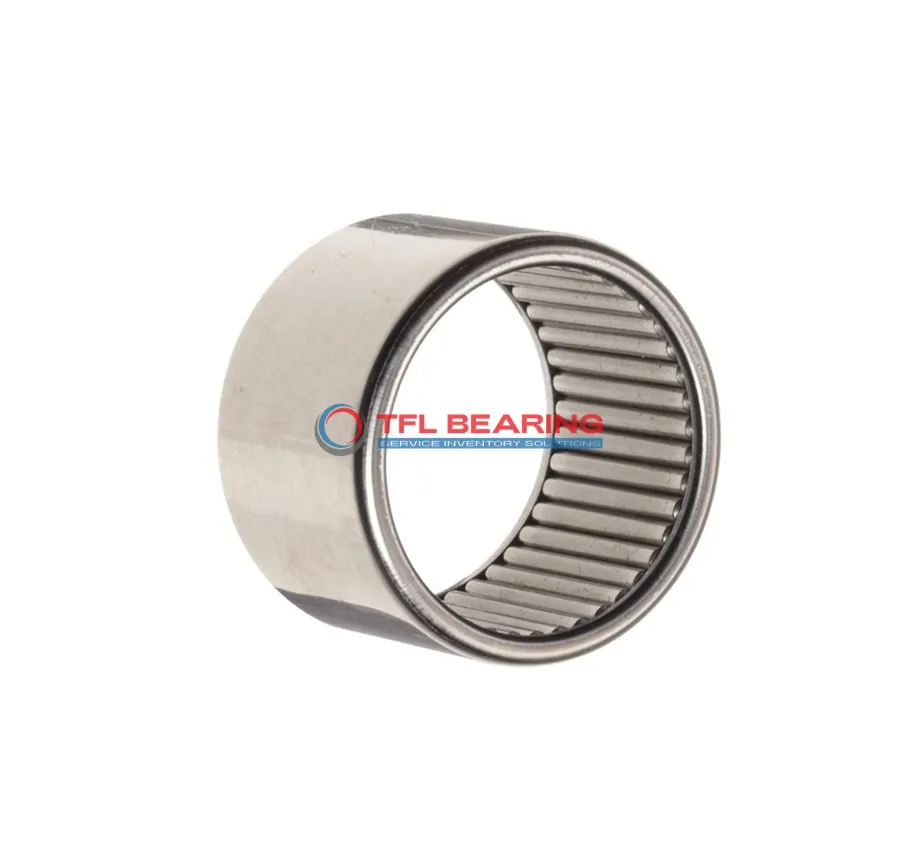

Drawn Cup Needle Roller Bearings SCE2216

Drawn Cup Needle Roller Bearings SCE2216

The SCE2216 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, made from sturdy steel for reliable performance. It handles radial loads up to 6182 lbf and can spin at speeds up to 8000 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing requires regular lubrication for smooth operation.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like automotive components or industrial machinery where space is limited.
It operates in temperatures from -20°C to 110°C and complies with RoHS standards. A compact choice at just 1″ wide, balancing strength and size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE2216
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 6182 lbf
  • Static Radial Load 13264 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8000 rpm
  • Weight 58 g
Drawn Cup Needle Roller Bearings SCE2216 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE2216 Bearing
SCE2216 Bearing is built for radial loads, with a dynamic radial load capacity of 6182 lbf.
Its steel construction ensures durability, making it suitable for high-performance applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 8000 rpm, it delivers reliable operation in various conditions.

Application

Industrial Uses of SCE2216 Bearing
SCE2216 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling high radial loads. The steel construction ensures durability in demanding environments like conveyor systems.
Where Is SCE2216 Bearing Used?
You’ll find SCE2216 Bearing in automotive transmissions, where its press-fit design provides a secure mounting solution. Its high-speed capability makes it suitable for applications like power tools and small engines.
Built for Heavy-Duty Use: SCE2216 Bearing
SCE2216 Bearing works well in agricultural machinery, such as harvesters, thanks to its robust steel rollers. The open-end design allows for easy lubrication, extending its service life in dusty conditions.
Automotive vs Industrial: Applications of SCE2216 Bearing
In automotive steering systems, SCE2216 Bearing offers smooth operation under radial loads. For industrial pumps, its inch sizing simplifies compatibility with older machinery designs.
Perfect Fit for Automation: SCE2216 Bearing
SCE2216 Bearing is a reliable choice for robotic arms, where precision and load capacity are key. The steel cage ensures stability even during repetitive movements in automated assembly lines.
