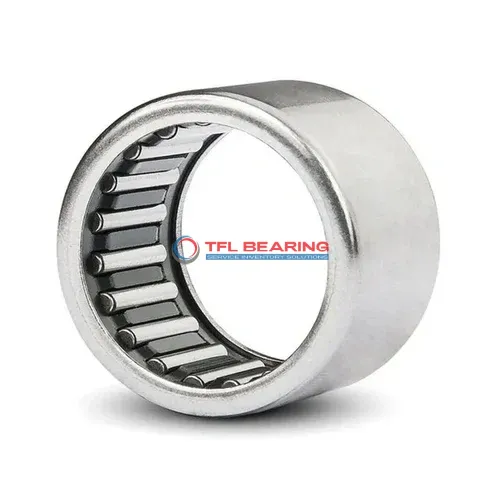

Drawn Cup Needle Roller Bearings SCE2110

Drawn Cup Needle Roller Bearings SCE2110

The SCE2110 is a drawn cup needle roller bearing with a 1.3125″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4766 lbf and operates smoothly at speeds up to 7700 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like automotive components or industrial machinery where radial loads are common.
With a compact width of 0.625″, it fits easily into tight spaces. Compliant with RoHS standards, it’s safe for use in temperatures ranging from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE2110
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.3125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4766 lbf
  • Static Radial Load 7531 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7700 rpm
  • Weight 37 g
Drawn Cup Needle Roller Bearings SCE2110 dimension drawing
Download DWG Download PDF

Features

Why Choose SCE2110 Bearing for Precision Tasks?
SCE2110 Bearing is crafted with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4766 lbf, ensuring dependable performance in precision applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 7,700 rpm, it maintains efficiency while handling demanding tasks.
SCE2110 Bearing operates effectively in temperatures ranging from -20 to 110 °C.
Its steel construction ensures durability, even in challenging environments.

Application

Common Applications of SCE2110 Bearing
SCE2110 Bearing works well in industrial settings, especially in compact machinery where space is limited but radial load capacity matters. Its press-fit design ensures a secure hold, reducing the need for frequent adjustments.
In automotive applications, SCE2110 Bearing fits nicely into gearboxes and steering systems, handling high radial loads smoothly. The steel construction offers durability, making it a reliable choice for long-term use.
For automation equipment, SCE2110 Bearing supports precise movements in robotic arms and conveyor systems. Its open-end design allows for easy lubrication, keeping operations running smoothly.
In household appliances like washing machines, SCE2110 Bearing provides quiet and efficient performance. The inch sizing makes it compatible with many standard parts, simplifying replacements.
