Drawn Cup Needle Roller Bearings SCE129-P

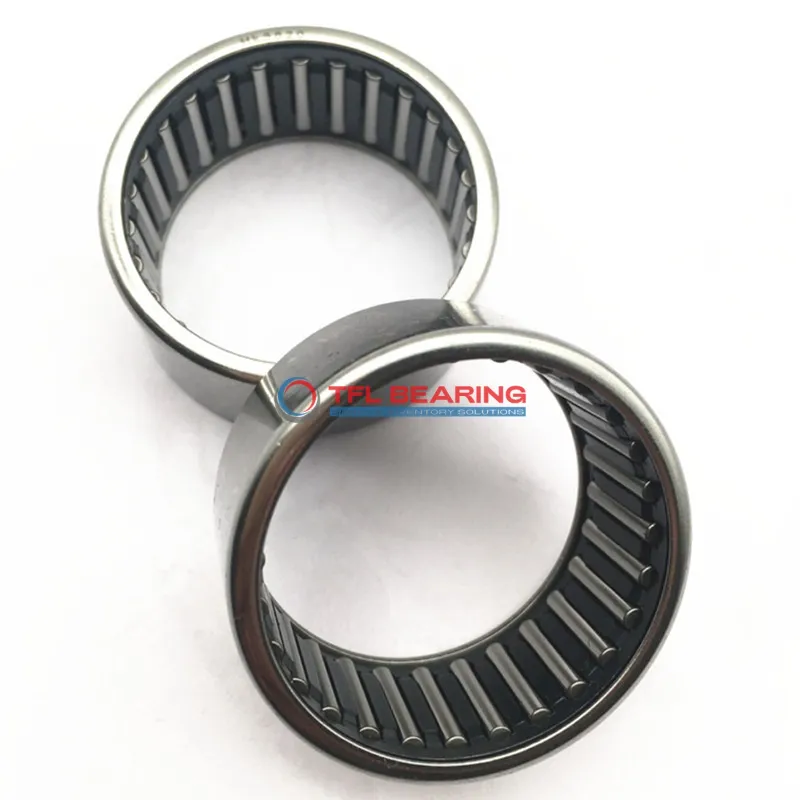

Drawn Cup Needle Roller Bearings SCE129-P

The SCE129-P is a drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, made from sturdy steel. It handles radial loads up to 2203 lbf and spins smoothly at speeds up to 13100 RPM.
Its single-seal design keeps contaminants out while maintaining easy lubrication access. The press-fit mounting ensures a secure fit on shafts.
This bearing is ideal for applications like automotive components or small machinery where space is limited. It works well in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a reliable choice for replacements, especially as it’s interchangeable with INA bearings. The compact 0.5625″ width makes it a space-saving solution.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE129-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.5625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2203 lbf
  • Static Radial Load 281 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 17 g
Drawn Cup Needle Roller Bearings SCE129-P dimension drawing
Download DWG Download PDF

Features

What Makes SCE129-P Bearing Suitable for High-Speed Applications?
SCE129-P Bearing is built with steel rings and needles, offering strong radial load capacity up to 2203 lbf.
Its compact design with a 0.75″ bore and 1″ outer diameter ensures space efficiency in tight applications.
The single seal helps retain lubrication, supporting smooth operation at speeds up to 13,100 rpm.
Press-fit mounting simplifies installation, making it a practical choice for various machinery.

Application

Industrial Uses of SCE129-P Bearing
SCE129-P Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
Where Is SCE129-P Bearing Used?
You’ll often find SCE129-P Bearing in automotive transmissions, providing smooth operation under high-speed conditions. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: SCE129-P Bearing
SCE129-P Bearing excels in construction equipment, handling heavy radial loads with ease. The single seal helps keep contaminants out, extending the bearing’s service life.
Automotive vs Industrial: Applications of SCE129-P Bearing
In automotive systems, SCE129-P Bearing supports components like steering columns, while in industrial settings, it’s used in conveyor systems. Its inch sizing makes it versatile for various machinery.
Perfect Fit for Automation: SCE129-P Bearing
SCE129-P Bearing is a reliable choice for robotic arms, offering precise movement and low friction. The steel cage ensures stability during repetitive motions.
