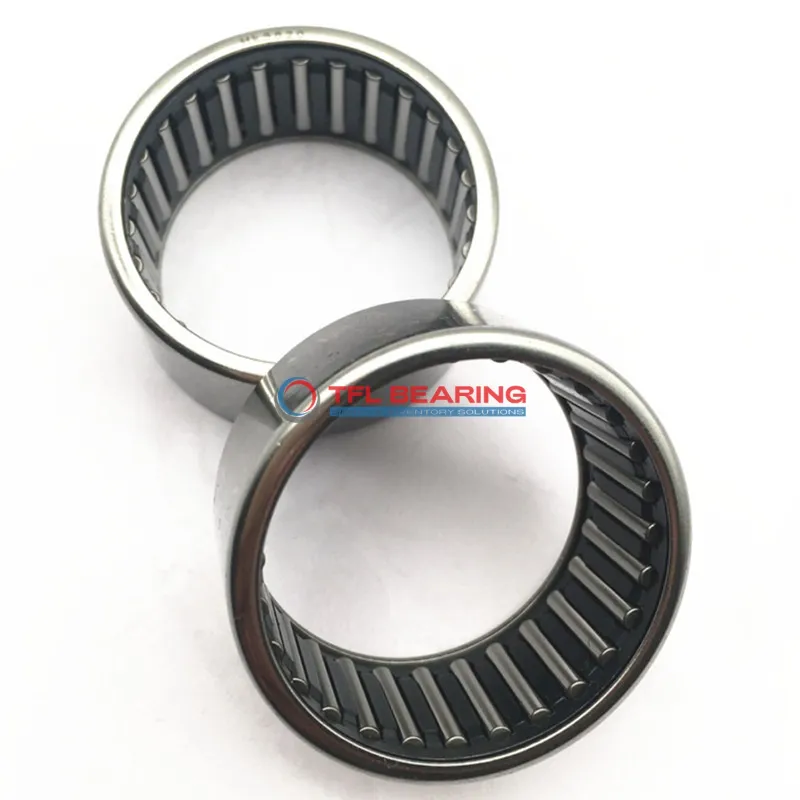

Drawn Cup Needle Roller Bearings SCE1212

Drawn Cup Needle Roller Bearings SCE1212

The SCE1212 is a compact drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3462 lbf and spins smoothly at speeds up to 13100 RPM.

Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability under stress. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.

This model is interchangeable with INA bearings, offering a practical solution for replacements. Ideal for applications like automotive components or small machinery where space is limited but high load capacity is needed.

Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards, it’s a safe and dependable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1212
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3462 lbf
  • Static Radial Load 4968 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 21 g
Drawn Cup Needle Roller Bearings SCE1212 dimension drawing
Download DWG Download PDF

Features

How Does SCE1212 Bearing Handle High-Speed Applications?
SCE1212 Bearing is built with steel rings and needles, offering strong radial load support.
Its dynamic radial load capacity reaches 3462 lbf, making it suitable for demanding tasks.
The press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
With a maximum speed of 13,100 rpm, it delivers reliable performance in fast-moving machinery.
SCE1212 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication helps maintain smooth performance and extends its service life.

Application

Common Applications of SCE1212 Bearing
SCE1212 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability even in demanding environments.
In automotive systems, SCE1212 Bearing fits well in gearboxes and steering mechanisms, providing smooth operation under radial loads. The press-fit design makes installation straightforward, saving time during assembly.
For automation equipment, SCE1212 Bearing’s needle roller design offers low friction, ideal for robotic arms and precision tools. Its open-end series allows for easy lubrication, extending service life in high-speed applications.
In household appliances like washing machines, SCE1212 Bearing handles radial loads efficiently, ensuring quiet and reliable performance. The inch sizing makes it compatible with many North American and European models.
