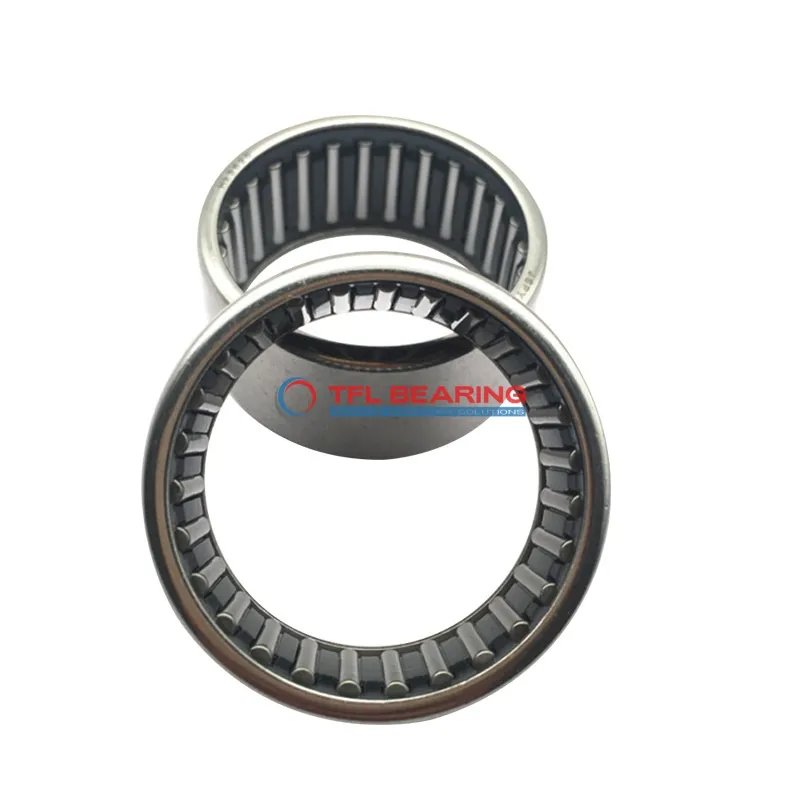

Drawn Cup Needle Roller Bearings SCE107

Drawn Cup Needle Roller Bearings SCE107

The SCE107 is a drawn cup needle roller bearing with a 0.625″ bore and 0.8125″ outer diameter, made from sturdy steel for reliable performance. It handles radial loads up to 1484 lbf and spins smoothly at speeds up to 16000 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel cage ensures durability, while the needle rollers provide efficient load distribution.
This bearing requires regular lubrication to maintain optimal performance. It operates well in temperatures ranging from -20°C to 110°C.
Ideal for applications like small gearboxes or automotive components where space is limited. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE107
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.4375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1484 lbf
  • Static Radial Load 2113 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16000 rpm
  • Weight 8 g
Drawn Cup Needle Roller Bearings SCE107 dimension drawing
Download DWG Download PDF

Features

Why Choose SCE107 Bearing for Precision Tasks?
SCE107 Bearing features a steel construction, ensuring durability and strength for radial load applications.
Its dynamic radial load capacity of 1484 lbf makes it suitable for high-performance machinery.
The needle roller design minimises friction, allowing smooth operation at speeds up to 16,000 rpm.
With a press-fit shaft mount, SCE107 Bearing offers secure and straightforward installation.
Its open-end design simplifies maintenance, while the steel cage ensures long-lasting performance.
SCE107 Bearing operates efficiently within a temperature range of -20 to 110°C.

Application

Industrial Uses of SCE107 Bearing
SCE107 Bearing is commonly used in industrial machinery where space is limited but high radial load capacity is needed, such as in compact gearboxes and conveyor rollers. Its steel construction ensures durability in demanding environments.
Where Is SCE107 Bearing Used?
You’ll often find SCE107 Bearing in automotive applications like transmission systems and steering mechanisms, thanks to its ability to handle high speeds and radial loads. The press-fit design makes installation straightforward.
Built for Heavy-Duty Use: SCE107 Bearing
SCE107 Bearing excels in heavy-duty equipment like agricultural machinery, where its robust steel rollers withstand constant wear. The open-end design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of SCE107 Bearing
In automotive settings, SCE107 Bearing supports components like clutch assemblies, while in industrial uses, it’s ideal for printing presses. Its inch sizing makes it versatile for various machinery standards.
Perfect Fit for Automation: SCE107 Bearing
SCE107 Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and high-speed performance are key. The steel cage ensures smooth operation even under continuous use.
