Drawn Cup Needle Roller Bearings SCE1012-PP

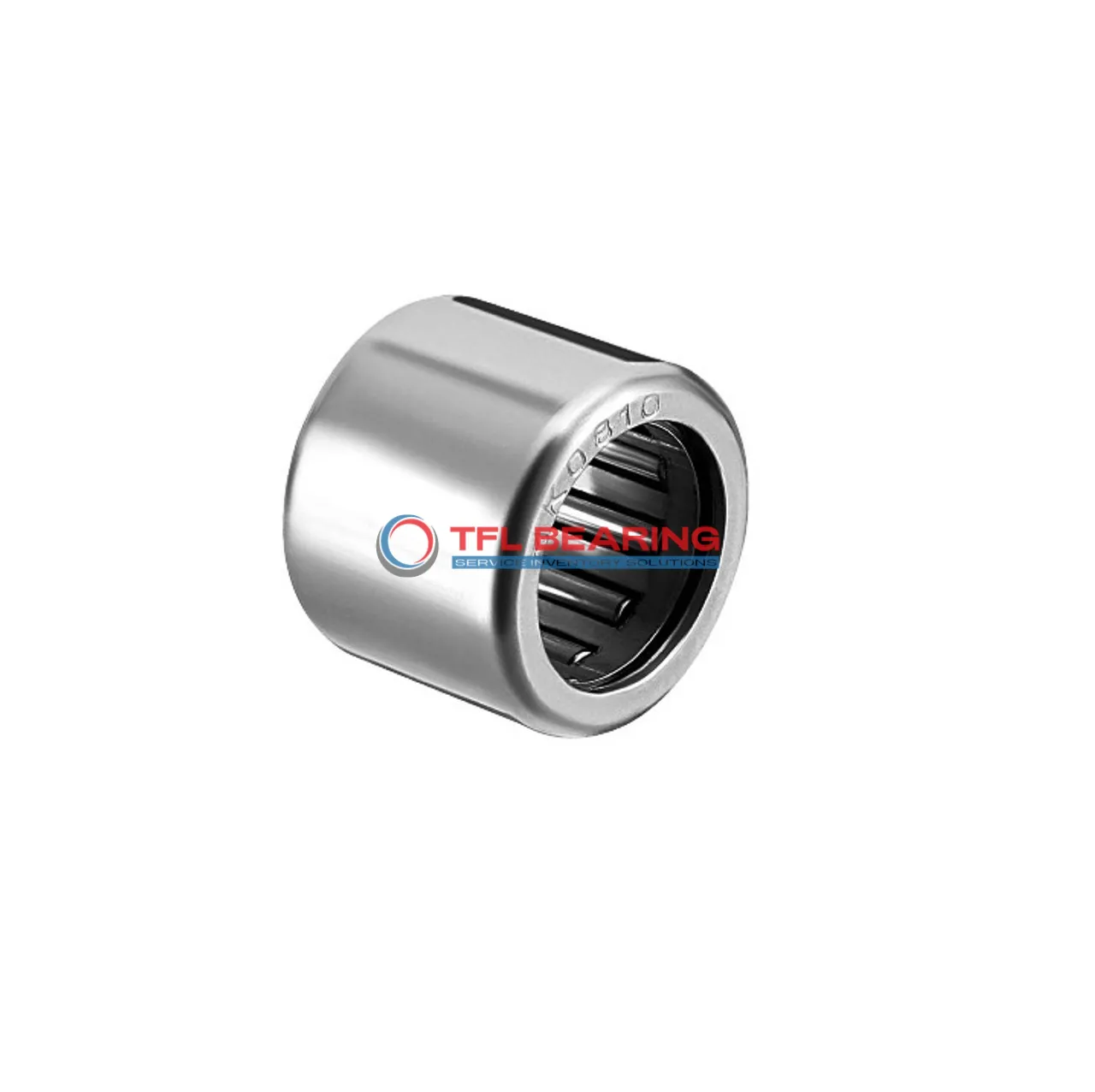

Drawn Cup Needle Roller Bearings SCE1012-PP

The SCE1012-PP is a drawn cup needle roller bearing with a 0.625″ bore and 0.8125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2338 lbf and can spin at speeds up to 13000 RPM.
Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit shaft mount ensures a secure and stable installation.
This bearing is ideal for applications like automotive components or small machinery where space is limited. It works well in temperatures from -20°C to 110°C.
Interchangeable with INA bearings, it offers a practical replacement option. Compliant with RoHS standards, it’s a safe and durable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1012-PP
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Double Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 3664 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13000 rpm
  • Weight 13 g
Drawn Cup Needle Roller Bearings SCE1012-PP dimension drawing
Download DWG Download PDF

Features

How Does SCE1012-PP Bearing Reduce Friction?
SCE1012-PP Bearing features a double-sealed design, ensuring smooth operation by minimising friction and contamination.
Its steel construction provides durability while handling radial loads up to 2338 lbf.
The press-fit shaft mount simplifies installation, saving time and effort.
With a maximum speed of 13,000 rpm, it offers reliable performance in various applications.

Application

Common Applications of SCE1012-PP Bearing
SCE1012-PP Bearing is widely used in industrial equipment like conveyor systems and packaging machinery, where its compact design handles radial loads efficiently. The double seal feature helps keep contaminants out, extending the bearing’s lifespan in dusty environments.
In automotive applications, SCE1012-PP Bearing fits well in gearboxes and steering systems, offering reliable performance under high radial loads. Its press-fit mounting ensures a secure installation, reducing maintenance needs.
For automation and robotics, SCE1012-PP Bearing’s high-speed capability makes it suitable for robotic arms and precision machinery. The steel construction provides durability, even in continuous operation scenarios.
In consumer electronics, SCE1012-PP Bearing can be found in printers and small appliances, where its inch sizing meets specific design requirements. The required lubrication ensures smooth operation over time.
