Drawn Cup Needle Roller Bearings HN3520

Drawn Cup Needle Roller Bearings HN3520

The HN3520 is a drawn cup needle roller bearing with a 35mm bore and 42mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 7531 lbf and operates smoothly at speeds up to 3200 RPM.
Its full complement design offers high load capacity, while the open structure allows for easy lubrication. The press-fit mounting ensures a secure fit on shafts.
This bearing works well in temperatures ranging from -20°C to 110°C, making it suitable for various environments. It’s interchangeable with INA bearings, providing a handy replacement option.
Ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN3520
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 35 mm
  • Bore Dia Tolerance +25°Cm-+50°Cm
  • Outer Dia 42 mm
  • Outer Dia Tolerance Not Rated
  • Width 20 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 7531 lbf
  • Static Radial Load 18659 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 3200 rpm
  • Weight 54 g

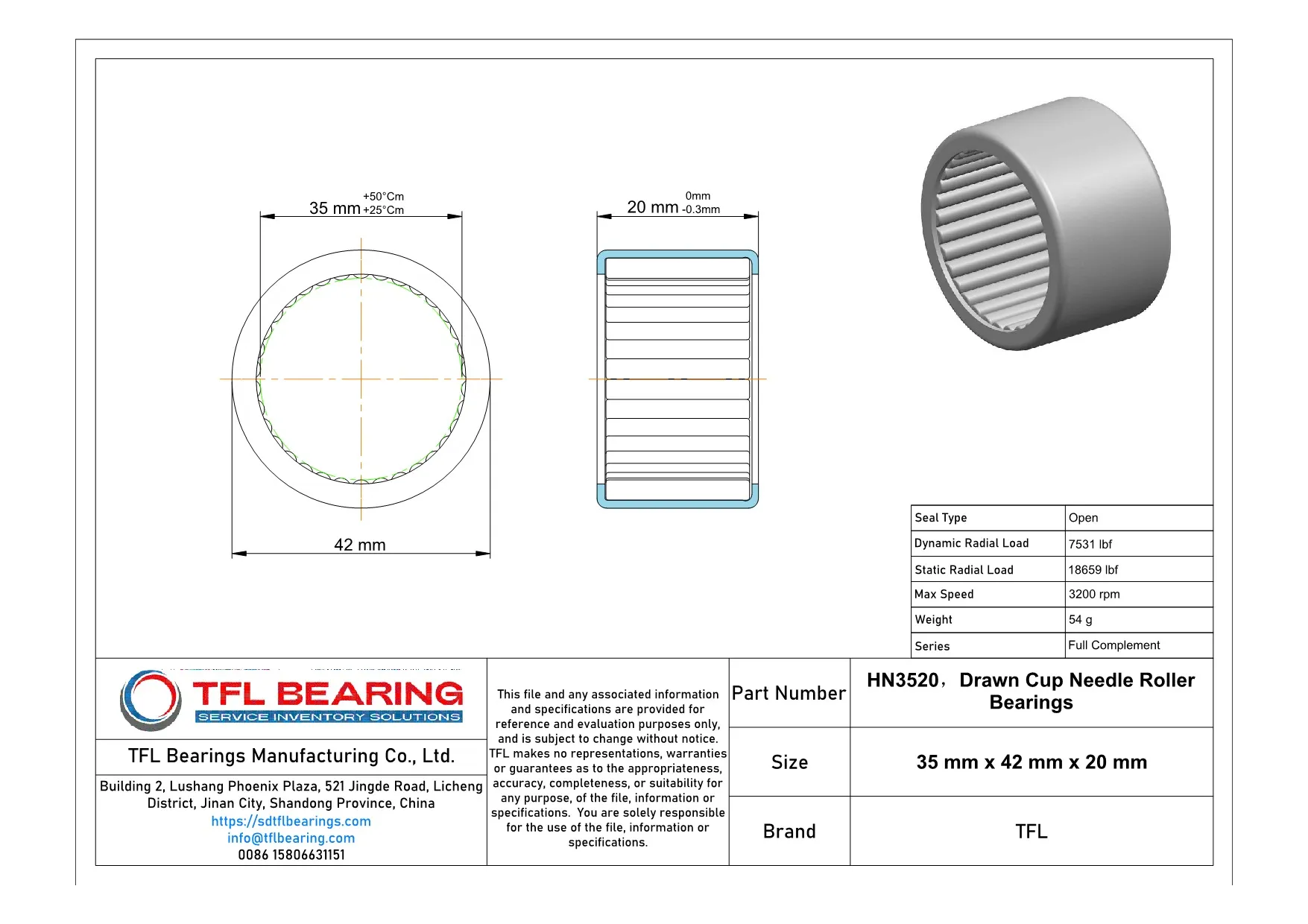

Drawn Cup Needle Roller Bearings HN3520 dimension drawing
Download DWG Download PDF

Features

How Does HN3520 Bearing Handle Heavy Radial Loads?
HN3520 Bearing is built with a full complement needle roller design, offering high load capacity in a compact space.
Its dynamic radial load rating of 7531 lbf ensures reliable performance under demanding conditions.
The steel construction provides durability, making it suitable for press-fit applications.
With a maximum speed of 3200 rpm, it balances efficiency and strength in radial load scenarios.

Application

Industrial Uses of HN3520 Bearing
HN3520 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The open construction allows for easy lubrication, ensuring long service life in demanding conditions.
Where Is HN3520 Bearing Used?
In automotive applications, HN3520 Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting. Its steel construction provides durability under continuous use.
Built for Heavy-Duty Use: HN3520 Bearing
For automation equipment like conveyor belts, HN3520 Bearing offers reliable performance with its full complement design. The metric sizing ensures compatibility with various machinery components.
Automotive vs Industrial: Applications of HN3520 Bearing
HN3520 Bearing works equally well in both automotive and industrial settings, such as pumps and compressors. Its high static radial load capacity makes it suitable for heavy machinery.
Perfect Fit for Automation: HN3520 Bearing
In robotic arms, HN3520 Bearing provides smooth motion due to its low friction and high load capacity. The steel cage enhances stability during high-speed operations.
