Drawn Cup Needle Roller Bearings HN1516

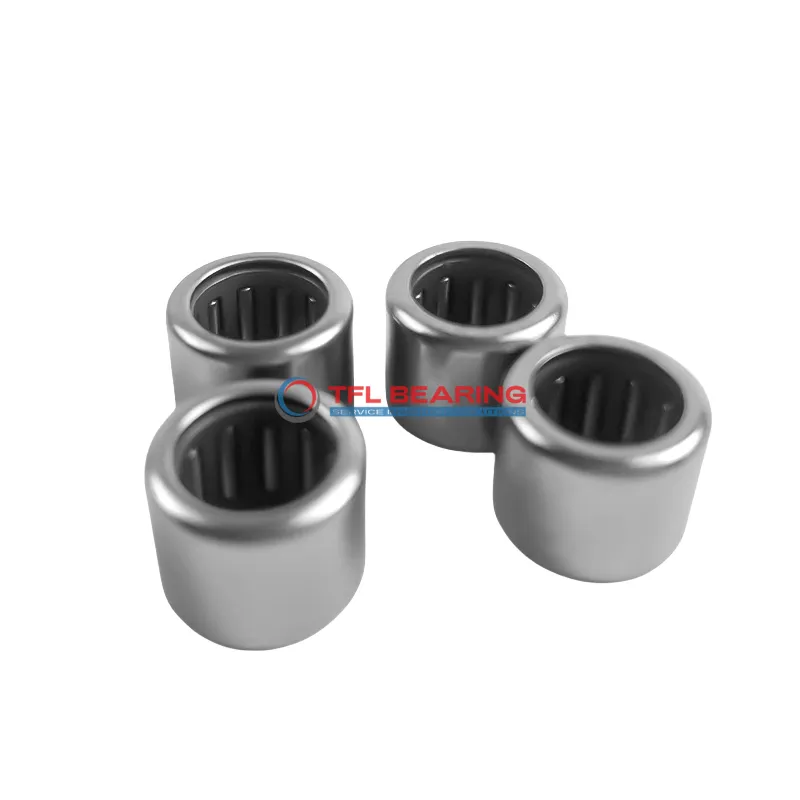

Drawn Cup Needle Roller Bearings HN1516

The HN1516 is a drawn cup needle roller bearing with a 15mm bore and 21mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3462 lbf and can spin at speeds up to 7100 RPM.
Its full complement design provides high load capacity without a cage, making it compact yet strong. The open seal allows for easy lubrication, essential for smooth operation.
This bearing is press-fit mounted, ensuring a secure fit on shafts. It works well in temperatures ranging from -20°C to 110°C, suitable for various environments.
Interchangeable with INA bearings, it’s a practical choice for replacements. Ideal for applications like automotive components or small machinery where space is limited and radial loads are common. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN1516
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 15 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 21 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3462 lbf
  • Static Radial Load 6182 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7100 rpm
  • Weight 14 g

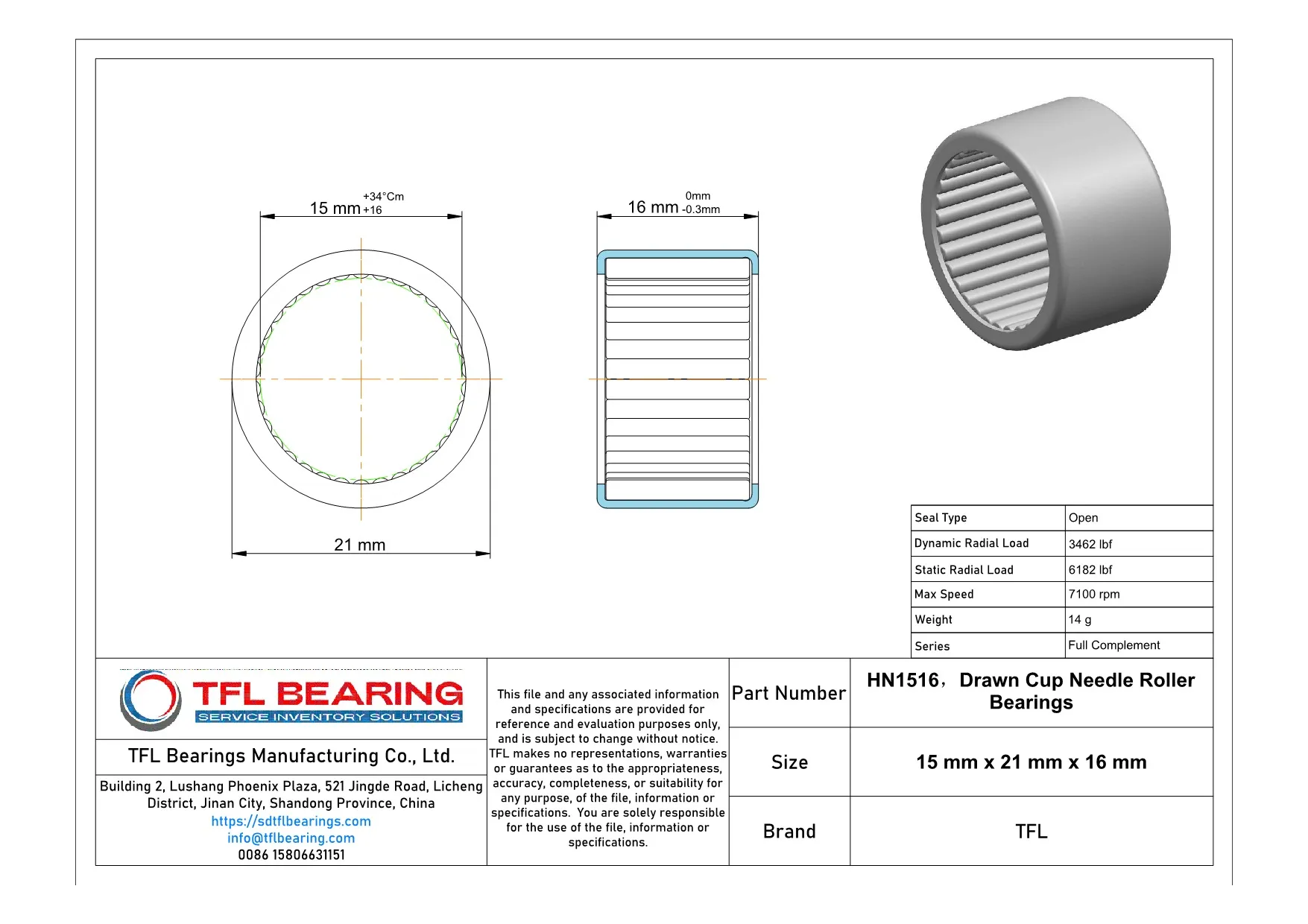

Drawn Cup Needle Roller Bearings HN1516 dimension drawing
Download DWG Download PDF

Features

How Does HN1516 Bearing Handle Radial Loads?
HN1516 Bearing is built with a full complement needle roller design, offering high radial load capacity.
Its dynamic radial load rating of 3462 lbf ensures reliable performance in demanding applications.
The steel construction provides durability, while the press-fit mounting simplifies installation.
With a maximum speed of 7100 rpm, it balances efficiency and strength for various industrial uses.

Application

Industrial Uses of HN1516 Bearing
HN1516 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
Where Is HN1516 Bearing Used?
You’ll often find HN1516 Bearing in automotive applications, such as gearboxes and steering systems, where its press-fit design provides a secure and stable fit. The high dynamic load rating makes it reliable for frequent use.
Built for Heavy-Duty Use: HN1516 Bearing
HN1516 Bearing excels in heavy-duty equipment like agricultural machinery, handling radial loads with ease. The full complement design allows for higher load capacity without needing a cage.
Automotive vs Industrial: Applications of HN1516 Bearing
In automotive systems, HN1516 Bearing supports components like transmissions, while in industrial settings, it’s ideal for machinery with limited space. Its metric sizing ensures compatibility across various applications.
Perfect Fit for Automation: HN1516 Bearing
HN1516 Bearing works well in automated systems, such as robotic arms, where precision and reliability are key. The open seal type allows for easy lubrication, maintaining smooth operation over time.
