Drawn Cup Needle Roller Bearings HN1212

Drawn Cup Needle Roller Bearings HN1212

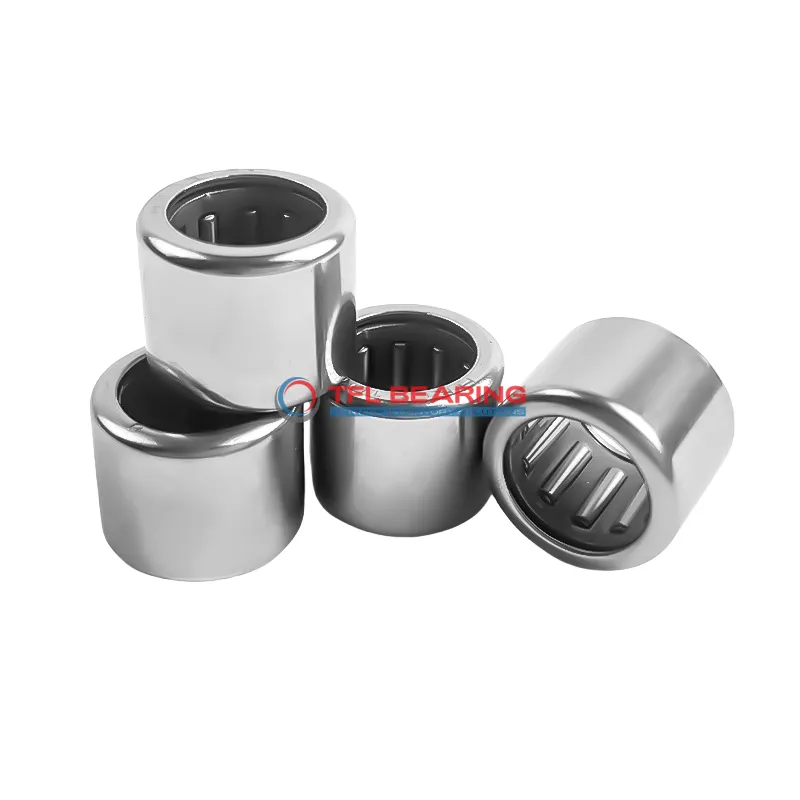

The HN1212 is a drawn cup needle roller bearing with a 12mm bore and 18mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2293 lbf and spins smoothly at speeds up to 8600 RPM.
Its full complement design offers high load capacity without a cage, making it compact yet strong. The open seal allows for easy lubrication, essential for maintaining smooth operation.
This bearing is press-fit mounted, ensuring a secure fit on shafts. It works well in temperatures from -20°C to 110°C, suitable for various industrial environments.
Interchangeable with INA bearings, it’s a practical choice for replacements. Ideal for applications like automotive components or small machinery where space is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN1212
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 18 mm
  • Outer Dia Tolerance Not Rated
  • Width 12 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2293 lbf
  • Static Radial Load 3417 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8600 rpm
  • Weight 10.5 g

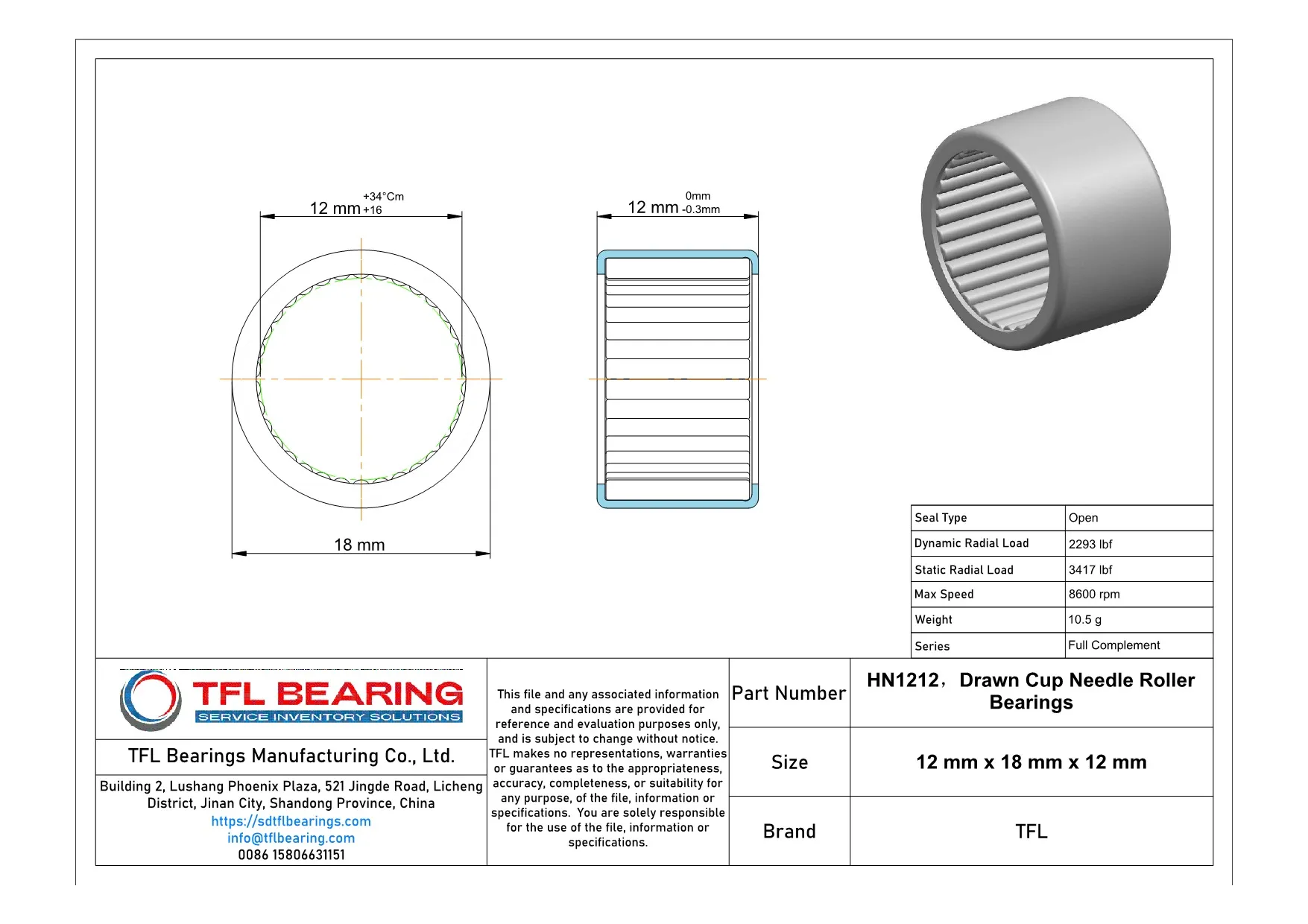

Drawn Cup Needle Roller Bearings HN1212 dimension drawing
Download DWG Download PDF

Features

How Does HN1212 Bearing Handle Radial Loads?
HN1212 Bearing is built with a full complement needle roller design, offering high load capacity in a compact size.
Its dynamic radial load rating of 2293 lbf ensures reliable performance in various applications.
The steel construction provides durability, while the press-fit mounting simplifies installation.
With a maximum speed of 8600 rpm, HN1212 Bearing balances efficiency and strength.

Application

Industrial Uses of HN1212 Bearing
HN1212 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is HN1212 Bearing Used?
You’ll often find HN1212 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, making it a favourite for assembly lines.
Built for Heavy-Duty Use: HN1212 Bearing
HN1212 Bearing excels in conveyor systems, handling continuous radial loads with ease. The full complement design boosts its load-bearing capacity without needing a cage.
Automotive vs Industrial: Applications of HN1212 Bearing
In cars, HN1212 Bearing supports clutch mechanisms, while in factories, it’s used in pumps and compressors. Its versatility makes it a reliable choice across different sectors.
Perfect Fit for Automation: HN1212 Bearing
HN1212 Bearing works well in robotic arms, offering precise movement under radial loads. The steel rollers ensure long-lasting performance in high-speed applications.
