Drawn Cup Needle Roller Bearings HK3516

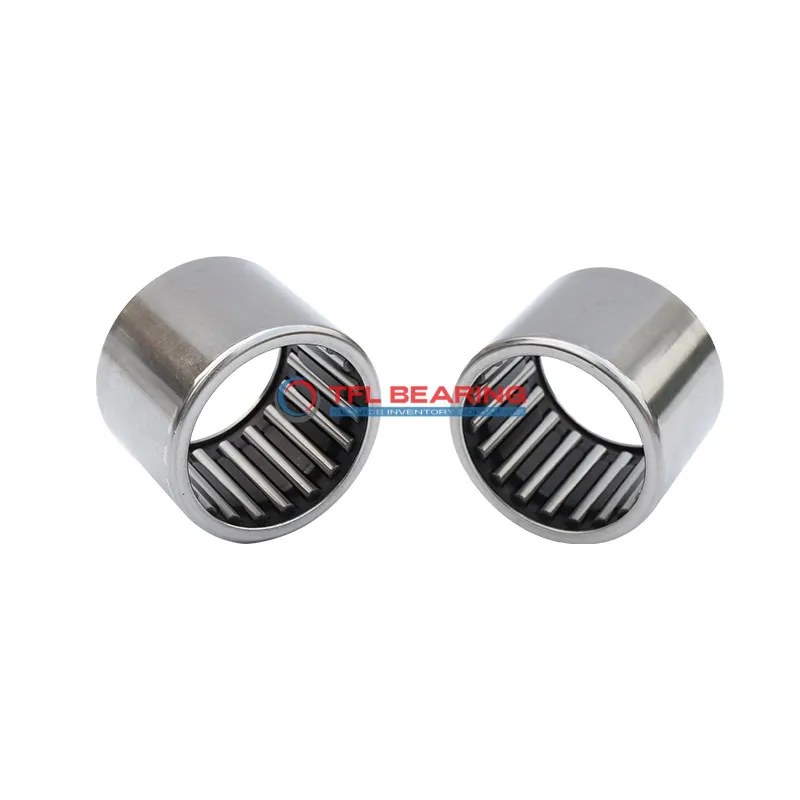

Drawn Cup Needle Roller Bearings HK3516

The HK3516 is a drawn cup needle roller bearing with a 35mm bore and 42mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4204 lbf and operates smoothly at speeds up to 7500 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various industrial applications.
Ideal for use in gearboxes, pumps, or automotive components where space is limited but high load capacity is needed. Compliant with RoHS standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK3516
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 35 mm
  • Bore Dia Tolerance +25°Cm-+50°Cm
  • Outer Dia 42 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4204 lbf
  • Static Radial Load 7531 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7500 rpm
  • Weight 36 g
Drawn Cup Needle Roller Bearings HK3516 dimension drawing
Download DWG Download PDF

Features

How Is HK3516 Bearing Engineered for Reliability?
HK3516 Bearing features a steel construction, ensuring strength and durability under radial loads.
Its dynamic radial load capacity of 4204 lbf makes it suitable for high-performance applications.
The press-fit shaft mount design simplifies installation, reducing downtime during maintenance.
With a maximum speed of 7500 rpm, HK3516 Bearing delivers consistent performance in various conditions.
Its open-end series design allows for easy lubrication, enhancing operational efficiency.
The temperature range of -20 to 110 °C ensures reliability in diverse environments.

Application

Industrial Uses of HK3516 Bearing
HK3516 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is HK3516 Bearing Used?
You’ll often find HK3516 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: HK3516 Bearing
HK3516 Bearing excels in construction equipment like hydraulic pumps, handling heavy loads with ease. The open-end series allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of HK3516 Bearing
In automotive steering systems, HK3516 Bearing offers reliable performance, while in industrial machinery, it supports high-speed operations. Its metric sizing ensures compatibility across various applications.
Perfect Fit for Automation: HK3516 Bearing
HK3516 Bearing is a great choice for robotic arms, where precision and load capacity are key. The steel cage provides stability, ensuring consistent performance in repetitive motions.
