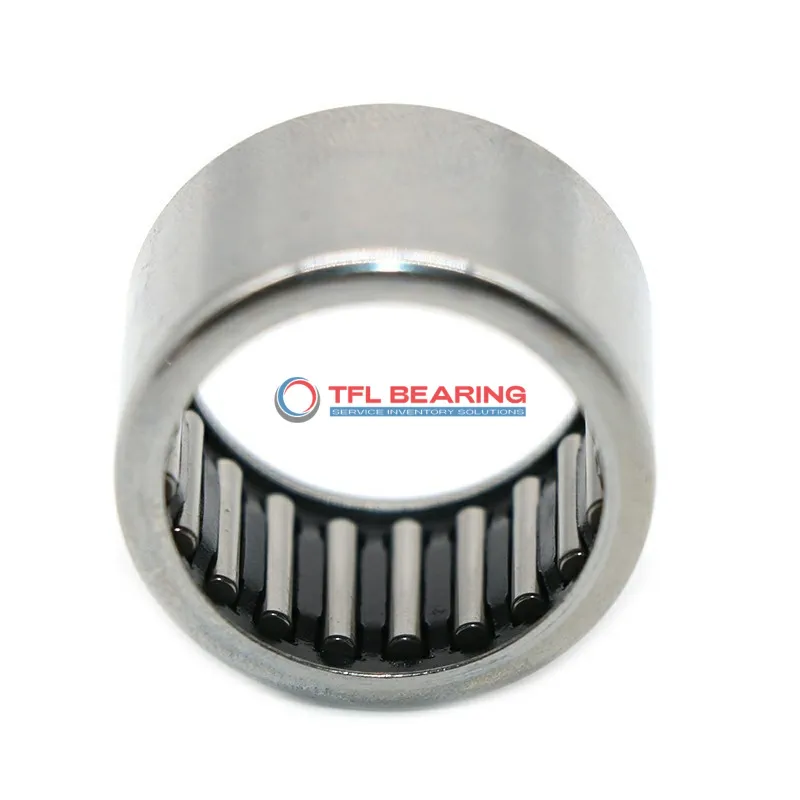

Drawn Cup Needle Roller Bearings HK1816

Drawn Cup Needle Roller Bearings HK1816

The HK1816 is a drawn cup needle roller bearing with an 18mm bore and 24mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2608 lbf and spins smoothly at speeds up to 14000 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel cage ensures durability, while the needle rollers provide efficient load distribution.
This bearing requires lubrication for optimal performance and works well in temperatures from -20°C to 110°C. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for applications like automotive components or small machinery where space is limited. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK1816
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 18 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 24 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2608 lbf
  • Static Radial Load 3889 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 14000 rpm
  • Weight 18 g
Drawn Cup Needle Roller Bearings HK1816 dimension drawing
Download DWG Download PDF

Features

Performance Features of HK1816 Bearing
HK1816 Bearing is crafted with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2608 lbf, ensuring reliable performance in various applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 14,000 rpm, it balances durability and efficiency.
HK1816 Bearing operates effectively in temperatures ranging from -20 to 110°C.
Its steel construction ensures long-lasting performance, even in demanding conditions.
Regular lubrication helps maintain smooth operation and extends the bearing’s service life.
The press-fit mounting design simplifies installation, reducing maintenance costs.

Application

Industrial Uses of HK1816 Bearing
HK1816 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as conveyor systems and gearboxes. Its open-end design simplifies installation, making it a go-to for maintenance-heavy environments.
What Makes HK1816 Bearing a Preferred Choice?
In automotive applications, HK1816 Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting and steel construction. The high-speed capability ensures smooth performance even under demanding conditions.
Perfect Fit for Automation: HK1816 Bearing
For automated equipment like robotic arms, HK1816 Bearing offers reliable radial support with its needle roller design. The steel cage enhances durability, making it suitable for repetitive motion tasks.
Medical vs Industrial: Where HK1816 Bearing Excels
While HK1816 Bearing isn’t typically used in medical devices, it shines in industrial tools like printing machines and small engines. Its metric sizing and press-fit feature make it versatile for various mechanical setups.
